How Power Distribution Panels Support Safe

and Efficient Electrical Systems

Electricity is essential for the daily operation of factories, commercial buildings, hospitals and other industrial facilities. However, distributing electrical power across different machines, departments and equipment requires proper planning. A well-organized electrical distribution system helps manage power flow, protect connected circuits and make maintenance easier.

A Power Distribution Panel (PDP) is an important part of this system. It receives electrical power from an incoming supply and distributes it to multiple outgoing circuits. Depending on the installation, it may also include circuit breakers, busbars, switching devices and digital meters for electrical protection and monitoring.

As industrial facilities expand and electrical requirements increase, selecting an appropriate distribution panel becomes an important consideration for electrical engineers, contractors and facility managers.

What Is a Power Distribution Panel?

A Power Distribution Panel, commonly called a PDP, is an electrical assembly that distributes incoming electrical power to different loads or downstream distribution boards.

It acts as a central distribution point within a designated section of an electrical installation. Instead of connecting every machine or electrical circuit directly to the main supply, the distribution panel divides power through separate outgoing feeders.

A typical PDP panel contains circuit breakers, copper busbars, metering instruments and switching equipment. The exact arrangement depends on the connected load, electrical ratings and project requirements.

For example, a manufacturing facility may use a power distribution panel to supply electricity to production machinery, lighting systems, pumps and HVAC equipment.

How Does a PDP Panel Work?

The working principle of a PDP panel is based on receiving electrical power and distributing it through protected outgoing circuits.

The process generally involves five stages:

1. Incoming Power Supply

Electrical power enters the panel through an incoming feeder. An Air Circuit Breaker (ACB) or Moulded Case Circuit Breaker (MCCB) may be used depending on the system rating and design.

2. Distribution Through Busbars

Busbars carry electrical current from the incoming section to the outgoing feeder arrangements. Copper busbars are commonly used because of their electrical conductivity and suitability for distribution applications.

3. Circuit Protection

Circuit breakers help protect electrical circuits against overloads and short circuits. Earth-fault protection can also be provided according to the system design.

4. Outgoing Power Distribution

Outgoing MCCBs or MCBs distribute electricity to connected machinery, equipment and secondary distribution boards.

5. Electrical Monitoring

Digital meters can monitor parameters such as voltage, current and power consumption. These readings help facility teams understand electrical demand and identify unusual operating conditions.

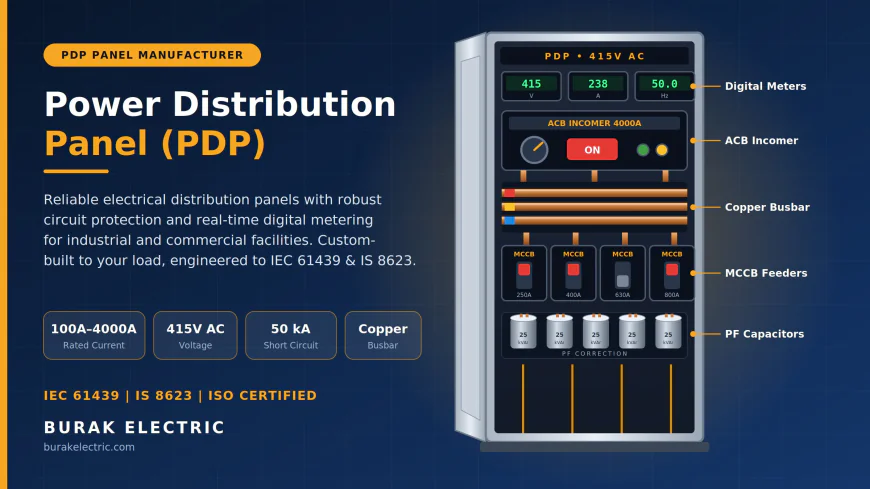

Main Components Used in a Power Distribution Panel

Each component in a distribution panel performs a specific function. Proper component selection is important for the safe and effective operation of the electrical system.

Circuit Breakers: ACBs, MCCBs and MCBs are selected according to the current rating and protection requirements of individual circuits.

Copper Busbars: These conductive bars distribute electrical current between the incoming supply and outgoing feeders. Their sizing depends on current capacity and temperature-rise requirements.

Digital Meters: Electrical meters display important parameters such as voltage, current and energy consumption.

Switching Devices: Disconnect switches and contactors help control or isolate electrical circuits according to the intended application.

Protective Relays: These devices detect specified abnormal electrical conditions and initiate protective actions through the associated switching equipment.

Capacitor Banks: Capacitors may be incorporated into the distribution arrangement when power factor correction is required.

Enclosure and Earthing System: The panel enclosure protects internal components from the surrounding environment, while the earthing arrangement provides an appropriate path for fault current.

Where Are Power Distribution Panels Used?

Power distribution panels are found in different industries because almost every large facility needs electricity for multiple operations.

Manufacturing Facilities

Factories use distribution panels to supply power to production machinery, motors, lighting and auxiliary equipment. Separate outgoing feeders help organize the electrical supply across different production areas.

Commercial Buildings

Shopping malls, office complexes and hotels require electricity for lifts, lighting, HVAC systems and other services. Distribution panels help divide the supply according to the building's electrical layout.

Hospitals

Healthcare facilities depend on electrical power for medical equipment, ventilation, lighting and essential services. Their distribution systems require careful planning to support critical loads and backup arrangements.

Data Centres

Data centres need a planned electrical distribution arrangement for servers, cooling equipment and supporting infrastructure. Suitable monitoring and protection devices help facility teams manage these electrical systems.

Water Treatment Plants

Pumps, motors and treatment equipment require a dependable electrical supply. Power distribution panels help organize the distribution of electricity to these different loads.

Benefits of Using a Properly Designed PDP Panel

A properly selected and engineered distribution panel offers several practical benefits.

Organized Electrical Distribution: Separate outgoing feeders make it easier to distribute power across different areas and equipment.

Circuit Protection: Suitable protective devices help protect electrical circuits and connected equipment against specified fault conditions.

Simplified Maintenance: Individual circuits can be isolated for inspection or maintenance according to the panel's switching and isolation arrangements.

Better Load Monitoring: Digital meters provide useful information about electrical consumption and operating parameters.

Future Expansion: A properly planned panel can accommodate additional feeders or equipment when sufficient capacity and physical space are provided in the original design.

Improved Power Management: Metering and optional power factor correction arrangements help facility managers understand and manage electrical demand.

How to Select the Right Power Distribution Panel

Selecting a distribution panel involves more than checking its physical size or price. The panel must match the electrical and environmental requirements of the installation.

Here are some important points to evaluate before purchasing:

• Connected Load: Calculate the expected electrical demand and consider possible future expansion.

• Rated Voltage and Current: Ensure that the panel rating matches the electrical system.

• Short-Circuit Withstand Capacity: Check the prospective fault level and the required short-circuit rating.

• Protection Devices: Select suitable ACBs, MCCBs, MCBs and protective relays.

• Busbar Design: Evaluate busbar material, sizing, insulation and support arrangements.

• Enclosure Protection: Select an appropriate IP rating according to dust, moisture and installation conditions.

• Applicable Standards: Check the relevant design, construction and verification requirements, including IEC 61439 and applicable Indian standards.

• Manufacturer Capabilities: Review the manufacturer's engineering experience, component selection, testing procedures and technical documentation.

These considerations help project teams choose a panel that matches their actual operating requirements.

Why Manufacturing and Testing Quality Matter

The quality of a power distribution panel depends on more than the individual components installed inside it. Engineering calculations, panel assembly, wiring practices and inspection procedures also influence its performance.

A suitable manufacturing process should include a review of electrical drawings, component selection, busbar sizing, internal wiring, earthing arrangements and enclosure construction.

Routine verification and appropriate factory testing should be completed before the panel is approved for dispatch. These checks help identify assembly or wiring issues before the equipment reaches the installation site.

Project teams should also request relevant technical drawings, test records and documentation from the manufacturer.

Conclusion

Power distribution panels are an important part of industrial and commercial electrical infrastructure. They help distribute incoming electricity to different circuits while providing suitable arrangements for switching, protection and monitoring.

Understanding the working principle, components and applications of a PDP panel allows engineers and facility managers to make better decisions when planning electrical installations. Careful attention to load requirements, protection ratings, busbar design and manufacturing quality can contribute to a properly organized distribution system.
