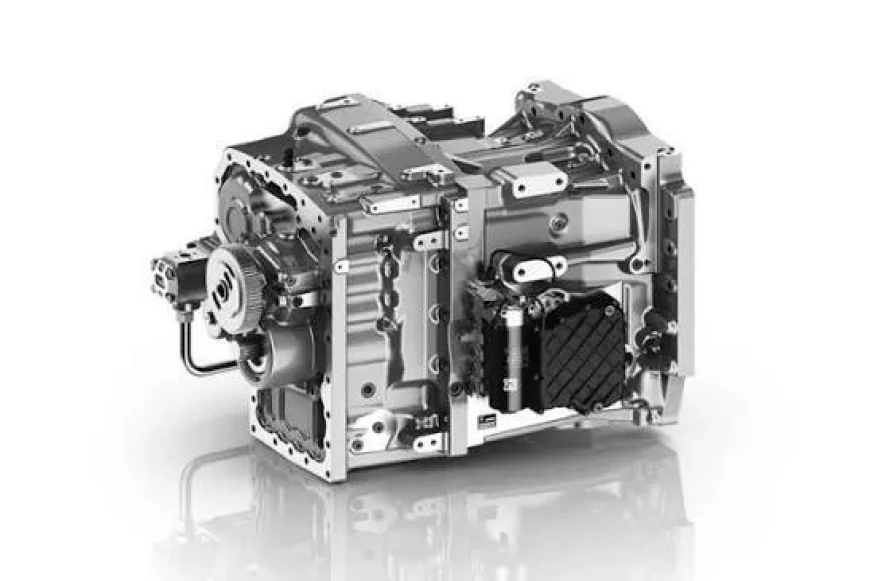

The ZF8 transmission swap has become a popular option among automotive enthusiasts looking to improve shifting performance, acceleration, and overall driving comfort. The ZF 8-speed automatic transmission, commonly known as the ZF 8HP, is widely used in modern performance cars, luxury vehicles, and certain high-torque applications. Its fast gear changes, smooth operation, and ability to handle substantial torque make it an attractive upgrade for many vehicle projects.

However, swapping to a ZF8 transmission is not as simple as replacing one gearbox with another. Compatibility, electronic controls, installation requirements, and overall cost must all be considered before starting the project. This guide explains the most important factors to help you plan a successful ZF8 transmission swap.

1. Understand the Benefits of a ZF8 Transmission

streetmachine.com.au

One of the biggest reasons enthusiasts choose a ZF8 transmission is its combination of performance and drivability. With eight forward gears, the transmission can keep the engine within its effective power range while providing smooth acceleration and comfortable cruising.

Key benefits include:

• Quick gear changes: Helps deliver responsive acceleration.

• Wide gear ratios: Provides strong low-speed acceleration and relaxed highway cruising.

• Torque capacity: Different ZF8 variants are designed for different torque requirements.

• Everyday comfort: Offers smooth shifting when correctly installed and calibrated.

• Performance potential: Can be suitable for street cars, performance builds, and certain high-power projects.

The exact benefits depend on the transmission version, vehicle configuration, engine output, and quality of the installation.

2. Check Engine and Vehicle Compatibility

Compatibility is one of the most important factors in a ZF8 transmission swap. Not every ZF8 model fits every engine or vehicle. The transmission comes in multiple variants, including versions commonly identified as 8HP45, 8HP50, 8HP70, and 8HP90.

Before purchasing a transmission, check the following:

• Engine and transmission bellhousing compatibility.

• Torque converter compatibility with the engine.

• Transmission mounting points and available space.

• Driveshaft length and output connection.

• Gear ratios and differential compatibility.

• Compatibility with the vehicle's electronic systems.

You may need an adapter plate, custom mounting brackets, or a modified driveshaft. Choosing the correct transmission variant for your engine's torque output and intended use can help prevent expensive problems later.

3. Identify the Required Parts and Components

A successful ZF8 swap requires more than the gearbox itself. Depending on the vehicle and donor transmission, additional components may be necessary.

Common parts include:

• ZF8 transmission and compatible torque converter.

• Transmission crossmember and mounting hardware.

• Transmission cooler and appropriate cooling lines.

• Compatible shifter and electronic control module.

• Wiring harness and electrical connectors.

• Driveshaft modifications, if required.

• Correct transmission fluid and installation components.

• ECU or transmission control programming solutions.

It is best to create a complete parts list before beginning the installation. Buying a complete donor package, when practical, can help you obtain compatible electronics and supporting components.

4. Consider the Total Cost of the Swap

The cost of a ZF8 transmission swap varies significantly depending on the vehicle, transmission condition, parts availability, and amount of custom fabrication required.

Your budget should account for more than the gearbox purchase price. Include installation labor, wiring, control modules, programming, cooling upgrades, fabrication, fluids, and unexpected repairs.

A used transmission may reduce the initial expense, but its service history and condition should be checked carefully. A professional inspection can help identify potential wear or damage before installation.

Tip: Obtain a detailed estimate covering parts, labor, electronics, and tuning before committing to the project.

5. Plan the Installation Carefully

Installing a ZF8 transmission may require mechanical modifications and specialist knowledge. The transmission must be properly aligned with the engine, securely mounted, and connected to the driveline.

Important installation considerations include:

• Checking bellhousing and torque converter fitment.

• Ensuring correct transmission and engine alignment.

• Confirming driveshaft and differential compatibility.

• Providing adequate clearance around the transmission tunnel.

• Installing suitable cooling lines and fluid connections.

• Following the manufacturer's procedures for fluid filling and level checks.

Incorrect installation can lead to vibration, fluid leaks, overheating, or premature transmission damage. If your build requires extensive fabrication, working with an experienced transmission specialist is often worthwhile.

6. Understand Electronics and Transmission Tuning

Modern ZF8 transmissions depend on electronic controls to manage gear selection, hydraulic pressure, torque converter lockup, and shift behavior. This makes the electronics one of the most challenging parts of many swaps.

Depending on your setup, you may need a compatible transmission control unit, wiring integration, and communication with the engine control unit. Some applications also require vehicle-specific programming to address immobilizer functions, torque management, or communication with other modules.

Proper calibration helps the transmission shift correctly and operate safely under different driving conditions. An unsuitable controller or incorrect software can cause fault codes, poor shifting, or limited functionality.

Before buying the transmission, confirm that a practical control and tuning solution exists for your exact engine and vehicle combination.

7. Pay Attention to Cooling and Maintenance

Heat management is essential for transmission reliability, particularly in vehicles used for towing, spirited driving, or high-performance applications.

A suitable transmission cooler may be necessary, depending on the original vehicle setup and the demands of your build. Cooler sizing, fluid flow, and thermostat arrangements should follow the requirements of the specific transmission and installation.

Use the correct fluid specification for your transmission variant. Avoid assuming that every ZF8 model uses identical service requirements.

Regular inspections for leaks, abnormal noises, overheating, and unusual shifting behavior can help identify problems early. Follow the applicable service guidance for fluid checks and maintenance.

8. Test the Vehicle Before Regular Driving

Once the swap is complete, thorough testing is essential. Start by checking for fluid leaks, electrical faults, and abnormal noises. Verify that the transmission engages the required gears and that the electronic control system communicates correctly.

A diagnostic scan and controlled road test can help identify shifting issues or fault codes. Where necessary, a specialist should check adaptation procedures, calibration, and transmission operating temperatures.

Avoid immediately subjecting a newly installed transmission to hard acceleration or maximum engine torque. Confirm that the entire drivetrain operates correctly before using the vehicle under demanding conditions.

Conclusion

A ZF8 transmission swap can provide significant improvements in shifting performance, acceleration, and everyday driving comfort. However, the success of the conversion depends on selecting the correct transmission, confirming engine compatibility, preparing the necessary components, and addressing electronic controls.

Careful budgeting, proper cooling, professional installation where needed, and thorough testing can make the project more reliable and cost-effective. Before purchasing any parts, research your specific vehicle and transmission combination to ensure that the swap is practical for your performance goals.
