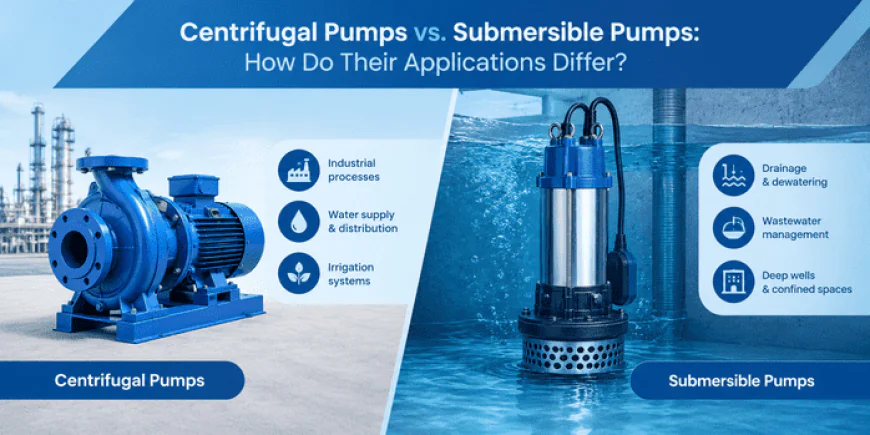

Centrifugal Pumps vs. Submersible Pumps: How Do Their Applications Differ?

Every industrial plant and commercial building moves fluid somewhere, whether that fluid is water, process chemicals, or wastewater. Pumps are the primary component used in such conditions. Centrifugal pumps and submersible pumps are two widely used categories, and they differ in installation method and operating conditions. The right choice depends on fluid characteristics, pumping depth, flow rate, head, installation environment, and the application itself. A mismatch shows up quickly as lost efficiency, premature seal wear, or repeated downtime.

What Are Centrifugal Pumps?

A centrifugal pump is a pump that uses a spinning impeller to transfer mechanical energy to the fluid. The fluid is conveyed to the impeller eye, then is accelerated by the centrifugal action of the impeller vanes, and the pressure is then converted from velocity to pressure within the volute casing. The head of the pump is determined by the rotational speed and impeller diameter. In a common installation, the pump is not located within the fluid source but instead is used to extract fluid from the source via some type of suction piping. Many buyers will want stainless steel centrifugal pumps for jobs that require a sanitary environment and corrosion resistance, which is what stainless steel construction provides.

What Are Submersible Pumps?

A submersible pump houses the pump end and motor in one sealed unit that runs fully underwater. Because the unit sits below the liquid level, it pushes fluid upward from wells, tanks, sumps, and pits rather than pulling it through long suction lines. Water around the motor also carries heat away during operation. Sealed motor construction matters here, since mechanical seals and cable entries must block fluid ingress into the windings. That design makes submersible pumps a fit for deep boreholes and flooded locations where a surface unit cannot reach.

How Do Centrifugal and Submersible Pumps Differ?

Five practical factors separate the two designs in the field. Each one shapes how engineers install, operate, service, and match a pump to its fluid over a decade of service.

Installation and Operating Position

Centrifugal pumps sit outside the fluid source and connect through suction piping, which leaves the motor dry and exposed to air. Submersible pumps work directly inside the fluid. Site conditions therefore steer selection and maintenance planning, because a tank, pit, or well determines which layout physically fits.

Pumping Depth

Submersible units suit deep wells, boreholes, drainage pits, and other submerged sources because they push fluid up instead of pulling it. Surface-mounted centrifugal arrangements struggle once suction lift passes roughly 7 to 8 metres at sea level, since atmospheric pressure caps what suction can raise.

Priming Requirements

Many conventional centrifugal pumps need proper priming before startup because air in the casing stops the impeller from building suction. Submersible pumps do not require a separate suction priming step since they operate below the fluid level and the liquid already fills the pump.

Maintenance and Accessibility

Above-ground centrifugal pumps allow quick visual checks, bearing inspection, and seal replacement without lifting equipment. Submersible pumps may need removal from the tank, well or sump for certain tasks. Neither type wins universally because accessibility depends on site layout and service frequency.

Fluid and Environmental Conditions

Suspended solids, corrosive fluids, high temperature, and contamination all narrow the field of suitable pumps. Materials, impeller design, seals, and motor protection must match the service conditions, so a pump rated for clean water will fail quickly in abrasive slurry or aggressive chemicals.

Centrifugal Pumps vs. Submersible Pumps: Application Comparison

The table below condenses the comparison into seven key factors, giving engineers and buyers a quick, practical reference when screening pump options for a new system or an upgrade project.

Where Are Centrifugal Pumps Commonly Used?

Centrifugal designs cover most surface-level fluid transfer duties, from plant utilities to building services, wherever a dry-mounted pump can reach accessible suction and discharge lines.

Industrial Process Systems

Plants use these pumps for fluid circulation and transfer, cooling and process-water loops, and chemical processing, provided engineers select wetted materials and seals that withstand the fluid and operating temperature.

Water Supply and Distribution

Water networks rely on them for transfer, circulation and pressure boosting in high-rise buildings, while industrial and commercial water systems use end-suction and multistage configurations to match head and flow.

Stainless Steel Pump Applications

Stainless steel resists corrosion and keeps wetted surfaces clean in hygienic duties. ISCP series stainless steel centrifugal pumps from Inox Pumps suit applications that match their specifications and fluid compatibility.

Where Are Submersible Pumps Commonly Used?

Submersible units work well wherever the fluid source sits below ground or below the pump location, and a dry-mounted unit would need long suction lines.

Borewells and Deep-Well Systems

These pumps extract groundwater for water supply. Placing the pump close to or below the water source removes suction lift limits and delivers water from depths beyond the surface pump's reach.

Drainage and Dewatering

Contractors use them for temporary construction-site dewatering, basement and sump drainage, and excavation drainage, and they clear accumulated water from low-lying areas before it damages foundations, equipment, or stored goods.

Wastewater and Sewage Handling

Sewage pits, wastewater collection systems, and drainage stations use submersible units to lift effluent to discharge points. Solids-handling capability varies by pump design, so check passage size and impeller type.

How to Choose Between Centrifugal and Submersible Pumps?

A structured selection process prevents costly mismatches. Four checks, covering the source, hydraulic duty, fluid properties, and site logistics, narrow the options before any model or supplier comes into consideration.

Evaluate the Fluid Source

Identify whether the pump will draw from an open tank, pipeline, well, sump, or fully submerged source. Then check how much the fluid level varies and what suction conditions exist, since low levels and long suction runs push the choice toward submersible designs.

Calculate Flow and Head Requirements

Establish the required flow rate and total dynamic head first. Total head combines static elevation difference, friction losses in pipes and fittings, and the pressure the system must hold at the discharge point. Both figures define the pump's duty point.

Check Fluid Characteristics

Review viscosity, temperature, corrosiveness, suspended solids, and chemical composition before shortlisting any model. Match construction materials and seals to those properties, because a mismatch shortens seal life and can contaminate the product or damage the casing.

Consider Installation and Maintenance

Evaluate the available installation space and access for servicing. Consider whether crews can remove the pump easily for inspection or repair, because a submersible unit in a deep well needs lifting gear, while a surface pump needs only floor space.

Common Mistakes When Selecting a Pump

Selection errors rarely come from a single bad calculation. They build up from skipped checks, and each one raises energy use, shortens service life, or forces early replacement. Engineers can avoid most of them by reviewing the following points before ordering.

• Choosing based only on flow rate without calculating total head.
• Ignoring suction conditions for surface-mounted centrifugal pumps.
• Selecting materials without considering fluid compatibility.
• Overlooking solids content and particle size in wastewater applications.
• Failing to consider maintenance access and installation conditions.
• Selecting a pump without checking its duty point against the system curve.

Conclusion

Centrifugal and submersible pumps serve different operating and installation needs. Centrifugal designs fit accessible, surface-mounted process, circulation and transfer duties, while submersible designs excel in deep, submerged, drainage and wastewater service. Sound selection rests on flow, head, fluid characteristics, installation conditions, material compatibility and maintenance requirements. Matching the pump to the duty protects efficiency and uptime.
