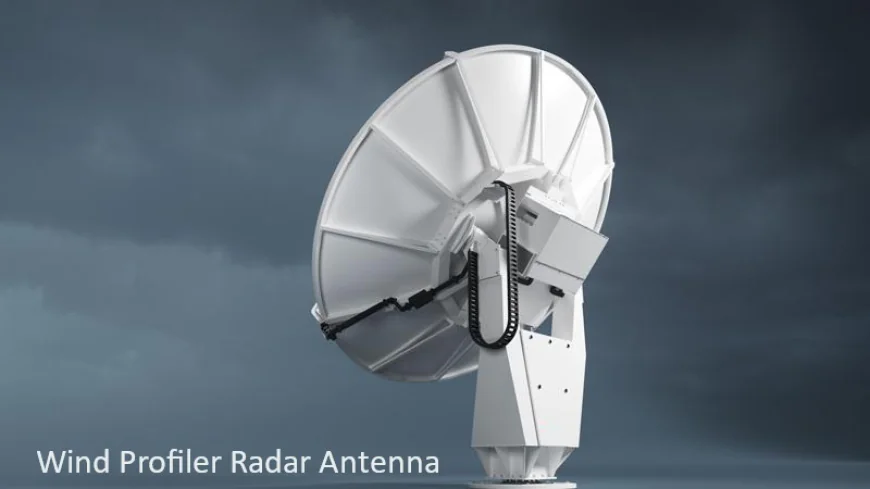

Wind Profiler Radar Antenna Systems: A Complete Guide

Today, wind profiler radar antenna systems are used to study the atmosphere. It helps us to know and measure wind speed and weather changes. These advantages of the antenna make it so crucial for modern aviation. This antenna is installed at airports, weather stations, research centers, and other places. And they help in forecasting weather, tracking storms, and improving flight safety. If you are curious to explore this antenna, this guide will let you know the essence of wind profiler radar antenna systems. Here we go!

What is a Wind Profiler Radar Antenna?

Wind Profiler radar antenna systems are a specialized type of radar used to measure wind speed and direction at various heights in the atmosphere. It sends radio waves upward to the location where the wind speed or weather pattern is measured. Once the signals are sent, they bounce back from air particles or turbulence. And these waves are measured by the radar. And calculates the change in frequency to find air movement. That is also called the Doppler Shift.

With the help of a wind profiler radar antenna system, experts get continuous and real-time wind data from a few meters to several kilometers. This is how this antenna contributes to the meteorological department and helps us to know weather forecasting, study storms, and track monsoons.

Types of Profiler Radar Antennas

Let's talk about the types of profile radar antennas, based on their shape, size, and use.

Phased Array Antenna

A phased array antenna is a type of profiler radar antenna. It sends and receives signals in directional radiation patterns. That means it is best suited for long-distance communication. Phased array antennas send waves in a particular direction due to their high-gain property. It consists of a flat and rectangular panel structure. That is made of many small antenna elements. This wind profiler radar antenna operates typically between 200 MHz and 1.3 GHz. And that uses electronic beam steering via phase-shift control to achieve rapid multi-directional atmospheric scanning.

Its high accuracy and precision make it ideal for wind profiling radar. The device is used for weather monitoring and air traffic control. Phased array antenna systems are helpful in research stations and meteorological departments. In these applications, it is used for tracking wind patterns and storm development in real time.

Yagi Uda Antenna

The Yagi-Uda antenna is a directional antenna that can be used in profile radar antenna systems. It comes with a simple rod-like structure. It has multiple parallel elements, including a reflector, a driven element, and directors. The Yagi-Uda antenna is known for its moderate gain. It helps users improve the performance of wireless communications. Its narrowband resonant array is optimized for UHF profiler systems (300-500 MHz).

With its high accuracy and compact design, it is used in UHF radar profilers and communication systems. It helps detect wind and turbulence at specific altitudes. Even experts use its properties to study the boundary layer. Connecting with the best antenna manufacturer allows you to purchase custom antennas for your specific application.

Parabolic Dish Antenna

A parabolic dish antenna is another crucial type of profiler radar antenna. Its dish-shaped reflector collects and focuses radio waves to identify this wireless solution. The best wind profiler radar antenna is large and is used when precise vertical resolution is required. It utilises a reflector geometry with focal feed illumination to achieve a narrow beamwidth (<1°) and gain exceeding 30 dBi for long-range tropospheric sounding.

Parabolic dish antennas are helpful in space research and upper air wind measurements. It is useful for effective long-range atmospheric profiling. That is how scientists make use of this antenna to predict weather and wind speed. The parabolic dish antenna is also crucial in research-grade wind profilers and aerospace applications. The applications where you want to have a strong signal focus. You can use a parabolic dish antenna in that area.

Log-Periodic Dipole Array (LPDA) Antenna

A log periodic dipole array antenna provides stable performance over a wide frequency range. It is triangular in shape and consists of dipoles of varying lengths. LPDA antennas are medium-sized and useful for multi-frequency radar profiling. They use logarithmic spacing and scaling of the dipole elements. It maintains constant input impedance and broadband performance from VHF to UHF (30-1000 MHz) radar frequencies.

These antennas are used in applications like atmospheric research and communication systems. Their ability to handle multiple frequencies makes them ideal for wind profilers. Industries connect with some of the leading wind profiler radar antenna manufacturers to get custom wind profiler radar antenna systems for your specific needs.

Benefits of Profiler Radar Antenna

Profiler radar antennas are for continuous wind and weather monitoring. This antenna is designed to provide real-time updates of wind speed and its direction. It is used for continuous measurements of wind direction and atmospheric movement. Scientists and meteorologists track weather changes every few minutes. That makes it a better solution than radiosondes that provide data only twice a day. A wind profiler radar antenna observes wind patterns at many height levels. That makes them extremely useful for weather forecasting, storm prediction, and aviation safety.

Bottom Line

A profiler radar antenna system is a special type of radar. It is used to measure wind speed and direction at different heights in the atmosphere. The antenna sends radio waves upward. And they come back from air particles or turbulence. The radar then uses the Doppler shift of these signals to calculate how fast and in what direction the air is moving. Profiler radars provide continuous and three-dimensional wind data. That is useful for weather forecasting, monsoon studies, and climate research. Scientists understand data and predict atmospheric movement more accurately.

FAQ

What is the main purpose of a profiler radar antenna system?

The main purpose of a profile radar antenna system is to measure wind speed, direction, and air movement. By providing continuous and real-time wind profiles, the antenna is essential for accurate weather forecasting and climate research.

How does a profiler radar antenna system work?

It sends radio waves upward that scatter back from small air irregularities. Then the radar measures the change in frequency of the returned signals. With this process, experts obtain continuous vertical wind profiles from the lower atmosphere to altitudes of several kilometers.

Where are profiler radar antenna systems commonly used?

These systems are mainly used in weather stations and meteorological departments. They are especially useful in areas with frequent storms or monsoons, like India. It improves aviation safety and climate modeling for environmental studies.
