Valve Position Indicator: How It Helps Monitor Industrial Valves

Industrial valves play a critical role in controlling the movement of liquids, gases, steam, and other process media. In manufacturing plants, water treatment facilities, oil and gas operations, and chemical processing systems, even a small valve positioning error can disrupt production, reduce efficiency, or create safety concerns. Operators need a reliable way to determine whether a valve is open, closed, or somewhere in between without relying entirely on manual inspection.

A valve position indicator helps address this challenge by showing the current position of a valve or its operating mechanism. Depending on the design, it can provide a simple visual reference or transmit position feedback to a control system. This information allows operators to verify valve operation, identify potential problems, and make better decisions during routine operations.

Understanding how these indicators work, where they are most useful, and how to select the right type can help industrial facilities improve process reliability. The following guide explains their practical applications and the steps involved in using them effectively.

What Is a Valve Position Indicator?

A valve position indicator is a mechanical, electrical, or electronic device that communicates the position of a valve. It typically identifies whether the valve is fully open, fully closed, or partially open. Some models provide continuous position information, while others report only specific operating states.

The indicator may be mounted directly on a valve, connected to its stem, or integrated into an actuator. Its design depends on the valve type, operating environment, and level of monitoring required.

For example, a manually operated ball valve may use a visible handle position to indicate its state. An automated butterfly valve in a water treatment plant might use an electrical limit switch to signal when it reaches its fully open or fully closed position. A modulating control valve may use a position transmitter to communicate its precise opening percentage to a distributed control system.

Although these devices vary in complexity, their purpose is similar: to make valve operation easier to observe and verify.

How Does a Valve Position Indicator Help Monitor Industrial Valves?

Position monitoring provides information that operators can use to maintain process stability and detect abnormal operating conditions.

1. Confirms Open and Closed Positions

One of the most important functions is confirming whether a valve has reached its intended position. This is particularly useful in systems where the wrong valve state could interrupt production or create a hazardous condition.

Consider a wastewater treatment facility that uses automated valves to direct water between treatment tanks. If a valve receives a command to close but remains partially open, water may continue flowing into the wrong section. Position feedback can alert the control system that the expected closed state has not been reached.

However, position confirmation alone does not prove that the valve seals completely or prevents leakage. Operators must distinguish between mechanical position and actual flow isolation.

2. Supports Automated Process Control

Modern industrial facilities frequently rely on programmable logic controllers (PLCs), distributed control systems (DCSs), and supervisory control and data acquisition (SCADA) platforms.

A compatible position indicator can send feedback to these systems, allowing operators to compare the commanded position with the reported position. This helps identify discrepancies without requiring someone to inspect every valve manually.

For instance, if a control room operator commands a valve to open to 60%, a position transmitter may report that the valve has reached only 35%. The discrepancy could indicate an actuator problem, a mechanical obstruction, or another operating issue that requires investigation.

3. Improves Operational Safety

In industrial environments, operators often need to verify valve states before starting equipment, performing maintenance, or changing process conditions.

Position indicators make this verification easier, particularly when valves are installed in difficult-to-access locations. Remote feedback can also reduce the need for workers to approach hot pipelines, pressurized equipment, or hazardous process areas.

For critical safety applications, however, an ordinary position indicator should not be treated as a substitute for an appropriately designed safety system, verified isolation procedure, or lockout/tagout requirements.

4. Helps Identify Equipment Problems

A valve that repeatedly fails to reach its commanded position may have a damaged actuator, excessive friction, a loose coupling, or an obstruction inside the valve.

Monitoring position trends can help maintenance teams identify these problems before they cause significant downtime. When position data is combined with actuator pressure, motor current, operating time, or process measurements, technicians can make more informed diagnoses.

Step-by-Step Guide to Monitoring Industrial Valves

An effective monitoring strategy involves more than installing an indicator. The device must be suitable for the valve, correctly configured, and regularly checked.

Step 1: Identify the Valve's Function

Start by determining what the valve controls and how important its position is to the process.

An isolation valve may require reliable open and closed confirmation, while a modulating valve may need continuous position feedback. Valves involved in emergency shutdowns or other safety functions may require specialized monitoring equipment.

Document the valve type, operating pressure, temperature, process medium, actuator type, and required feedback signals.

Step 2: Select the Appropriate Indicator

Choose a device that matches the monitoring requirements.

• Mechanical indicators: Suitable for straightforward visual confirmation on accessible manual valves.

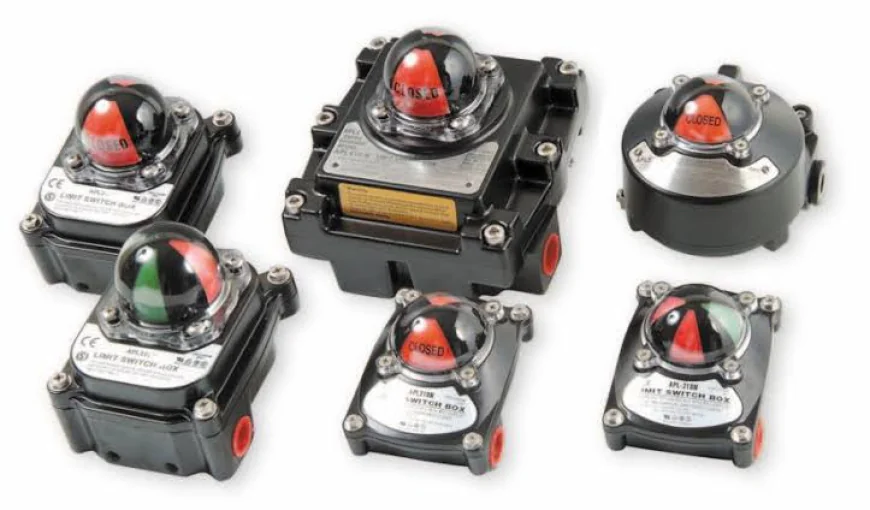

• Limit switches: Provide discrete electrical signals when a valve reaches defined positions, such as fully open or fully closed.

• Position transmitters: Provide continuous feedback, often as a 4–20 mA signal or through a digital communication protocol.

• Smart positioners: Commonly used with modulating control valves to regulate movement and provide diagnostic information.

Environmental conditions matter as well. Outdoor installations may require weather-resistant enclosures, while hazardous locations may require equipment certified for the applicable area classification.

Step 3: Install and Align the Device

Follow the manufacturer's installation instructions and verify that the indicator is mechanically connected to the correct moving component.

Incorrect alignment can cause the device to report an open position when the valve is only partially open. Loose brackets, worn couplings, and incorrect travel settings can create similar problems.

Installation should be performed by qualified personnel using appropriate isolation and safety procedures.

Step 4: Configure the Feedback System

For automated equipment, configure the electrical connections, control-system inputs, signal ranges, and position limits.

A technician should confirm that the reported position corresponds to the actual valve movement. For example, a transmitter configured for 0–100% travel must correctly associate its minimum and maximum signals with the valve's actual closed and open positions.

Where necessary, configure alarms for excessive travel time, missing feedback, or disagreement between the commanded and reported positions.

Step 5: Test and Document Performance

Operate the valve through its intended range under approved test conditions. Compare the indicator's readings with the actual mechanical position and verify that the control system receives the expected signals.

Record the results, including any deviations, adjustments, or unusual operating behavior. Establish a baseline so future inspections can identify changes in performance.

Common Mistakes and Monitoring Challenges

Even a suitable indicator can provide unreliable information when installation, configuration, or maintenance is overlooked.

Confusing position with flow: A valve may be open without allowing the expected flow because of a blocked pipeline, low upstream pressure, or another process restriction. Use appropriate flow or pressure measurements when confirming process performance.

Ignoring calibration: Misaligned switches or incorrectly configured transmitters can produce inaccurate feedback. Verify position readings periodically, particularly after maintenance or actuator replacement.

Choosing equipment for the wrong environment: Heat, vibration, moisture, corrosion, and hazardous atmospheres can affect device reliability. Review environmental ratings and material compatibility before installation.

Overlooking signal failures: Broken cables, loose connections, power interruptions, and communication faults can create missing or misleading readings. Monitoring systems should distinguish between a confirmed valve state and unavailable or invalid feedback.

Treating alarms as proof of safety: A reported closed position does not necessarily confirm a leak-tight seal. Critical isolation tasks require the specified verification methods and safety procedures.

Practical Tips for Reliable Valve Position Monitoring

Industrial teams can improve monitoring performance by incorporating a few consistent practices into their maintenance programs.

First, prioritize valves according to operational risk. Valves that control hazardous chemicals, protect equipment, or influence critical production stages generally deserve more rigorous inspection and monitoring than noncritical valves.

Second, establish routine functional tests. Check that indicators move correctly, limit switches activate at the intended points, and electronic signals remain within their specified ranges. Inspection intervals should reflect manufacturer guidance, operating conditions, and the consequences of failure.

Third, investigate repeated discrepancies rather than simply resetting alarms. A valve that frequently fails to reach its target may indicate an underlying mechanical or control-system problem.

Fourth, integrate position feedback with other available process data. Comparing valve position with flow, pressure, temperature, and actuator performance can help distinguish a genuine valve fault from an unrelated process issue.

Finally, maintain accurate records. Documenting calibration, repairs, replacement parts, test results, and recurring faults supports troubleshooting and helps maintenance teams plan interventions before failures interrupt operations.

Conclusion

Valve position indicators help industrial facilities monitor valve movement, verify commanded positions, support automated control, and identify potential equipment problems. Their value depends on selecting the right technology, installing it correctly, and maintaining reliable feedback.

By combining position monitoring with functional testing, process measurements, and preventive maintenance, industrial operators can improve visibility into their systems and respond to abnormal conditions more effectively. The result is a more dependable approach to managing industrial valves, reducing avoidable downtime, and maintaining consistent process performance.
