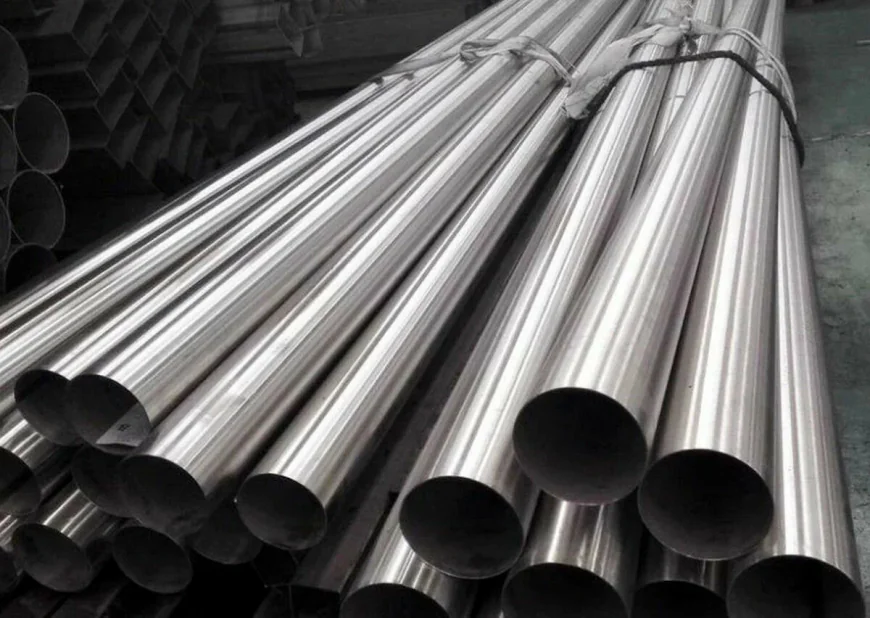

6 Factors to Consider When Choosing the Right Stainless Steel Seamless Pipe

Stainless steel seamless pipes provide high pressure resistance and structural integrity since they do not have longitudinal welded seams. This uniformity in structure gives superior resistance to internal pressure and to severe corrosive conditions than the seamed counterparts. These materials find application in chemical processing plants, oil & gas facilities, petrochemical refineries, food processing units and power production stations. They are used in high-temperature systems to transfer volatile fluids safely. Engineers ask for ASTM A312 stainless steel pipes for standard austenitic applications. The choice is determined only by the chemical and physical requirements of the process line.

What Is a Stainless Steel Seamless Pipe?

Manufacturers produce a seamless pipe by heating a solid steel billet and piercing it through the center. The hollow shell is rolled and drawn to the final dimensions. This basic manufacturing process eliminates the weak point of a weld seam. Welded stainless steel pipes have a visible or hidden longitudinal joint. The material handles high mechanical stress without splitting at a seam. Available materials include common grades such as 304, 304L, 316, 316L, and 310 depending on the application. The selection of grade and specification must match the actual service conditions of the plant. A basic water line requires a different specification than an acidic chemical line.

6 Factors to Consider When Choosing SS Seamless Pipes

1. Stainless Steel Grade

The foundation material dictates how the piping system reacts to the fluid within it. Select a grade for the required corrosion resistance, physical strength, operating temperature, and compatibility with direct fluids. Typical applications use grade 304 as the common base material. Grade 316 also has molybdenum, which inhibits pitting from chlorides in marine or chemical environments. Low carbon variations like 304L and 316L are used to avoid carbide precipitation after welding. Grade 310 is suitable for high-temperature service. Chemical composition and mechanical performance characteristics are different in different grades. Grade swaps result in premature pipe failures.

2. Operating temperature

Calculate the maximum and minimum operating temperatures for the fluid process. Constant heat over time affects the physical structure of metal. Look at surface oxidation, rapid thermal cycling and elevated temperature strength retention. Traditional materials degrade with heat. For high-temperature systems, select high-temperature stainless steel pipes only depending on the actual service requirements. Don’t assume that all stainless steel grades have one temperature limit. Superheated steam will warp or shatter a pipe rated for ambient water.

3. Pressure and Mechanical Requirements

Identify the normal operating pressure and the maximum design pressure of the system. The pipe wall must contain the internal fluid force without rupturing. Consider tensile strength, yield strength, calculated wall thickness, and mandatory safety requirements. Process lines rarely operate at a constant pressure. Account for sudden pressure fluctuations, pump vibration, and external mechanical loads on the pipe supports. Match the exact pipe specification with the mechanical design requirements approved by the structural engineers.

4. Pipe Size and Wall Thickness.

Identify nominal pipe size . Identify outside diameter . Identify wall thickness . A larger diameter is necessary for heavy fluid volume to keep the desired flow rate and acceptable pressure drop. Determine corrosion allowance, if appropriate. Engineers typically add an extra wall thickness to account for metal loss during a 10-year period. Ensure the dimensional compatibility with the current plant fittings, control valves, bolted flanges and welded components. If the measurements are wrong, the joints are weaker and fluids can leak.

5. Corrosion and Process Conditions

Evaluate sensitivity to water, chlorides, strong acids, industrial solvents, steam and other process fluids, external and internal. The chemistry of the fluid is constantly corroding the metal. How much acid it has. How heated the fluid is. How rapidly it is going. Any foreign contaminants in the pipeline . Stainless steel is not a benchmark. Select a grade depending on the specific chemical corrosion mechanism. The abrasive particles move fast and damage the inner surface. Localized pitting and crevice corrosion at flange connections and stress corrosion cracking should also be examined as needed. The improper alloy will quickly degrade in a harsh chemical environment.

6. Standards, Testing and Certification.

Request to see the ASTM or ASME production requirements before you buy. ASTM A312 covers testing of austenitic stainless steel pipe. The instructions teach the mill how to make the material and test it. 2. Study the chemical & mechanical properties. Review findings of hydrostatic or ultrasonic tests The testing reveal no internal concerns with the pipe. Material Test Certificate Verification. Heat number traceability can be verified with a physical pipe stencil. Check the dimensional tolerances and the final inspection records of project specifications.

Common Applications of SS Seamless Pipes

The stainless steel seamless pipe is a vital component in heavy industrial plants providing great strength and leak-free reliability even under harsh operating conditions. These high-performance pipes are produced without welded seams and work well under high pressure, harsh temperature cycles, and particularly corrosive conditions.

• High-pressure extraction: offshore drilling and refinery facilities see significant hydrocarbon activity.

• Chemical processing: It is the safe transfer of hazardous acids, organic solvents, and poisonous chemicals without deterioration.

• Power Generation: Thermal power plants have boilers that work under very high pressures and have superheated steam.

• Heat exchangers and boilers: Small-diameter seamless tubes ensure efficient thermal transfer at high temperatures.

• Hygienic and sanitary systems: Internal surfaces are made smooth to avoid bacterial contamination in food, beverage, and pharmaceutical facilities.

• Water Treatment: Long-term corrosion resistance in continuous high-flow fluid transmission.

Conclusion

Engineers must evaluate the material grade, operating temperature, internal pressure, physical dimensions, chemical corrosion environment, and testing standards. Selecting a pipe based on diameter or base cost alone creates severe safety risks. The pipe selection should be based directly on the complete operating conditions and chemical realities of the specific plant. Different environments demand different material chemistries and wall thicknesses. Industrial buyers need to verify exact manufacturing specifications and non-destructive testing documentation. For stainless steel seamless pipe sourcing, Zhejiang Xintongda Special Steel Manufacturing Co., Ltd. (XTD) is another supplier that buyers may evaluate against their required grade, specification, testing, and traceability requirements. Confirm the physical heat-number traceability matches the paperwork before purchasing the material. Correct material selection prevents catastrophic pipeline failures and unplanned facility downtime.
