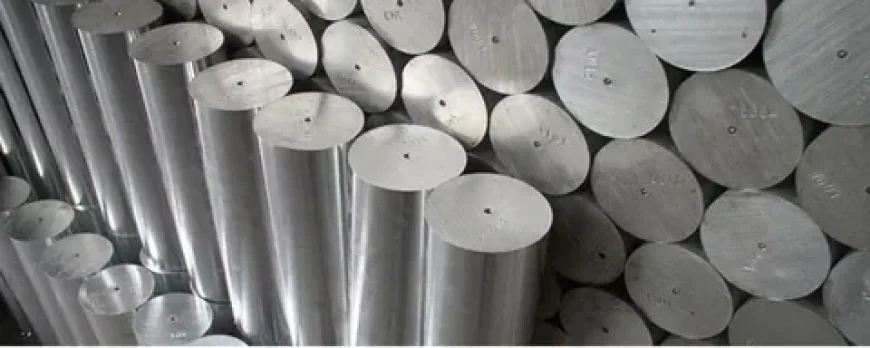

Monel 400 Round Bar for Chemical Processing Equipment

Monel 400 is a nickel copper alloy that combines high strength with resistance to selected corrosive media, including hydrofluoric acid, caustic alkalis, and seawater. Chemical plants produce Monel 400 round bars into shafts, stems and fasteners that stay in contact with aggressive process fluids. Performance depends on the chemical, its concentration, the operating temperature, and the surrounding conditions, so engineers must match the alloy to the exact service before they place an order.

What Is a Monel 400 Round Bar?

Monel 400, registered as UNS N04400, is a solid solution nickel copper alloy. The chemistry holds a minimum of 63% nickel and 28% to 34% copper, with up to 2.5% iron and 2% manganese. Nickel and copper dissolve completely in each other, so the alloy stays single phase and gains strength through cold work. A UNS N04400 round bar supplied under ASTM B164 delivers a minimum tensile strength of 485 MPa and 35% elongation in the annealed condition.

Corrosion resistance comes from the nickel rich matrix. The alloy handles reducing acids such as hydrofluoric and dilute sulfuric acid, neutral and alkaline salt solutions and caustic soda. Monel Alloy 400 Round Bar stock also resists chloride stress corrosion cracking, a failure mode that affects austenitic grades such as 304 and 316.

A Monel 400 round bar serves as the starting form for solid components. Machinists turn, drill, thread, and mill it into pump shafts, valve stems, bolts, studs, bushings and spindles. Because the alloy work hardens, shops use sharp tooling, rigid setups and steady feed rates.

Why Use Monel 400 Round Bars for Chemical Processing Equipment?

Corrosion removes metal from shafts, stems, and fasteners, and even small losses widen clearances and weaken sealing surfaces. Resistance in suitable environments slows that loss. Hydrofluoric acid service shows the alloy at its strongest, because Monel 400 remains a standard choice there while most stainless steels corrode quickly. Caustic alkalis and dilute sulfuric acid in deaerated conditions also fall within its working range.

Strength matters as much as chemistry. Pump shafts carry torque, valve stems carry thrust, and bolts hold flange loads, so the bar must resist deformation as well as attack. Annealed material offers a 170 MPa minimum yield strength, cold drawing raises it, and the alloy keeps its toughness at subzero temperatures.

Alloy 400 round bars that suit the service need replacement less often, which lowers maintenance frequency, spare part inventory, and unplanned shutdowns.

Limits apply. Oxidizing media such as nitric acid, ferric chloride, and aerated ammonia solutions attack Monel 400 rapidly. Corrosion behaviour depends on the specific chemical, its concentration, temperature, aeration, and impurities, so a corrosion test on the actual process fluid confirms suitability.

Applications of Monel 400 Round Bars in Chemical Processing

Fabricators machine this alloy from bar stock into parts that touch process fluids directly. Applications in chemical plants include the components below, each facing a mix of load and chemistry.

• Pump shafts and internal components such as sleeves, wear rings, and bushings that run in corrosive liquids.

• Valve stems and valve components, including seats and trim parts for acid and brine lines

• Chemical processing machinery parts, including spindles, couplings, and mechanical elements in reactor, filtration, and dosing equipment

• Fasteners and connecting components, such as bolts, studs, nuts, and pins that hold flanged joints together

• Agitator and mixer components, including shafts and fittings that rotate inside corrosive batches

• Heat exchanger and process equipment parts, such as tie rods, support pins, and fittings

• Components for selected acid handling and alkaline processing systems, including hydrofluoric acid, dilute sulfuric acid, and caustic soda service

Benefits of Chemical Resistant Monel 400 Bars

Engineers specify chemical resistant Monel 400 bars for a defined set of advantages. Each benefit holds only when the alloy matches the process conditions of the application.

• Corrosion resistance in suitable chemical environments, including hydrofluoric acid, caustic alkalis, and neutral salt solutions

• Good strength and toughness for industrial components, with cold drawn bar reaching higher strength than annealed bar

• Resistance to flowing seawater and brackish water, plus strong resistance to chloride cracking

• Stable behaviour in correctly selected conditions, from subzero service to roughly 540°C

• Suitability for machining into precision shafts, threads, and sealing surfaces

• Longer service life when the alloy matches the application, which reduces replacement frequency.

Factors to Consider When Selecting a Monel Alloy 400 Round Bar

Selection starts with a clear definition of the process. Buyers should confirm each factor below with the equipment designer and the material supplier before they finalize an order.

• Chemical composition and compatibility with the process fluid, including concentration, aeration, and impurities such as chlorides

• Operating temperature and pressure, including thermal cycling during start up and shutdown.

• Required diameter, length, and dimensional tolerances, matched to finished part sizes to limit machining waste

• Mechanical strength and load requirements, checked against torque, tension, and bending on each part

• Machining and fabrication needs, including welding procedures and the cold worked condition of the bar

• Applicable standards and testing, such as ASTM B164 or ASME SB164, with chemistry and mechanical property tests

• Material traceability and inspection documentation, including heat numbers and EN 10204 3.1 mill test certificates

Conclusion

Monel 400 round bars are used in the production of chemical processing equipment requiring corrosion resistance, mechanical strength and durability in hydrofluoric acid, alkaline and saline service. Results are based on grade selection and dimensions for the actual process environment, operating conditions and applicable material specifications, so verify these prior to purchasing.
