How Keyhole Punching Simplifies Mounting and Assembly in Sheet Metal

A mounting hole may look like a small detail on a sheet metal part, but its shape can make a noticeable difference during assembly. When a component needs to slide onto a fastener, hang from a mounting point, or be positioned quickly, a standard round hole may not always provide the flexibility needed. This is where keyhole punching can be useful. By creating a specially shaped opening in the sheet metal, fabricators can design parts that are easier to position, mount, and remove during assembly.

What Makes a Keyhole Opening Different?

A keyhole opening typically combines a larger circular area with a narrower slot. This shape allows a fastener head or mounting point to enter through the larger section before the part is moved into position along the narrower section.

The exact dimensions depend on the application and the hardware being used. For that reason, the opening should be designed around the actual mounting requirements rather than treated as a standard hole size.

For fabricators, this can make keyhole openings particularly useful when a finished component needs to:

• Slide onto or off a mounting point

• Hang securely from hardware

• Be positioned without complicated fastening steps

• Allow easier access during installation or removal

Where Is Keyhole Punching Used?

The usefulness of this type of opening extends across several sheet metal applications. It can be incorporated into parts where quick mounting or convenient positioning is important.

Common applications include:

• Storage racks and shelving

• Metal furniture components

• Brackets and mounting hardware

• Access plates

• Hanging hardware and related components

For example, a bracket with a properly designed keyhole opening can be placed over a fastener and shifted into its final position without requiring the fastener to be completely removed. This can simplify installation and make servicing or removal more convenient.

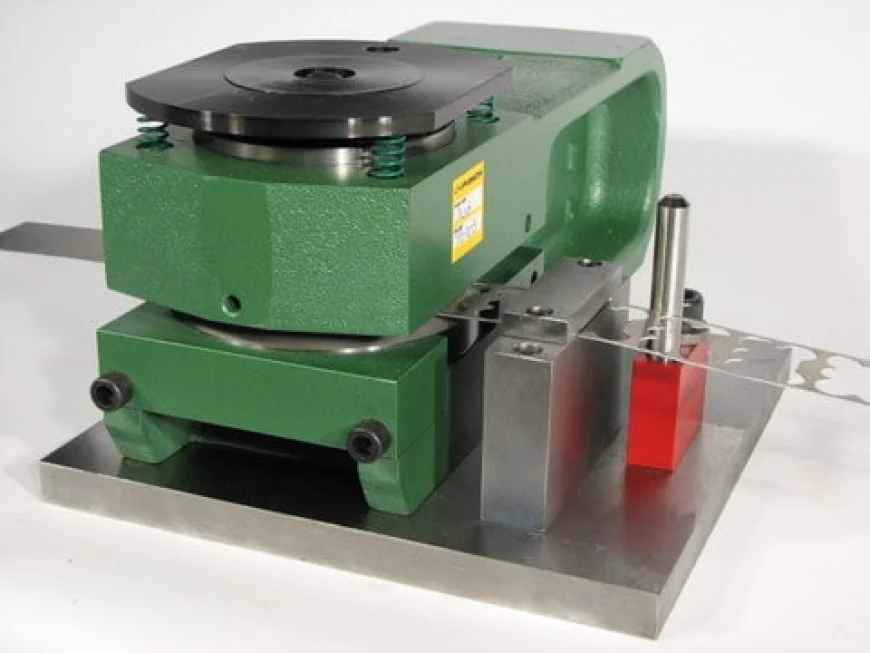

Choosing the Right Tooling

The performance of a keyhole opening depends heavily on getting the tooling dimensions right. A hole that is slightly different from the required profile may affect how the part fits over the mounting hardware.

When planning keyhole punching, fabricators should consider several details before ordering tooling:

• Opening dimensions: The shape and size should match the intended mounting hardware.

• Material thickness: The tooling needs to suit the gauge of the sheet being punched.

• Material type: Different metals can respond differently during the punching operation.

• Part application: Consider how the finished component will be installed, removed, or assembled.

• Part drawings: Accurate drawings or specifications can help define the required keyhole profile.

These details give the tooling supplier a clearer understanding of the application and help avoid unnecessary adjustments later.

Why Consistency Matters in Assembly

When a part is produced repeatedly, consistency becomes just as important as the initial design. If keyhole openings vary from one component to another, assembly can become slower and less predictable. Operators may need to reposition parts, make adjustments, or deal with mounting points that do not fit as intended.

Consistent keyhole punching helps maintain the intended relationship between the opening and the mounting hardware. This is particularly valuable in production environments where the same component is being manufactured in larger quantities.

Design the Opening Around the Application

The goal is not simply to create a keyhole-shaped opening. The opening needs to perform a specific job within the finished assembly. Before selecting a punch and die, consider how the component will be mounted and what type of hardware it will interact with.

When the dimensions, material, and application are considered together, keyhole tooling can become a practical part of the sheet metal fabrication process. The result is a mounting feature designed not only to fit the part, but also to make installation and handling easier.
