30 Inch Hood Range Insert: Sizing, Ventilation and Installation

Choosing a range hood insert involves more than matching the width of a cooking appliance. The insert must fit properly within its enclosure, provide suitable airflow, and work with the kitchen's ventilation design. A correctly selected insert can help capture smoke, grease, odors, heat, and moisture produced during cooking.

For homeowners considering a 30-inch hood range insert, measurements, cooking habits, airflow, ductwork, and installation requirements should all be evaluated before purchase. A 30-inch insert is commonly associated with a 30-inch cooking surface, but the required insert and enclosure dimensions can differ depending on the design.

What Is a Range Hood Insert?

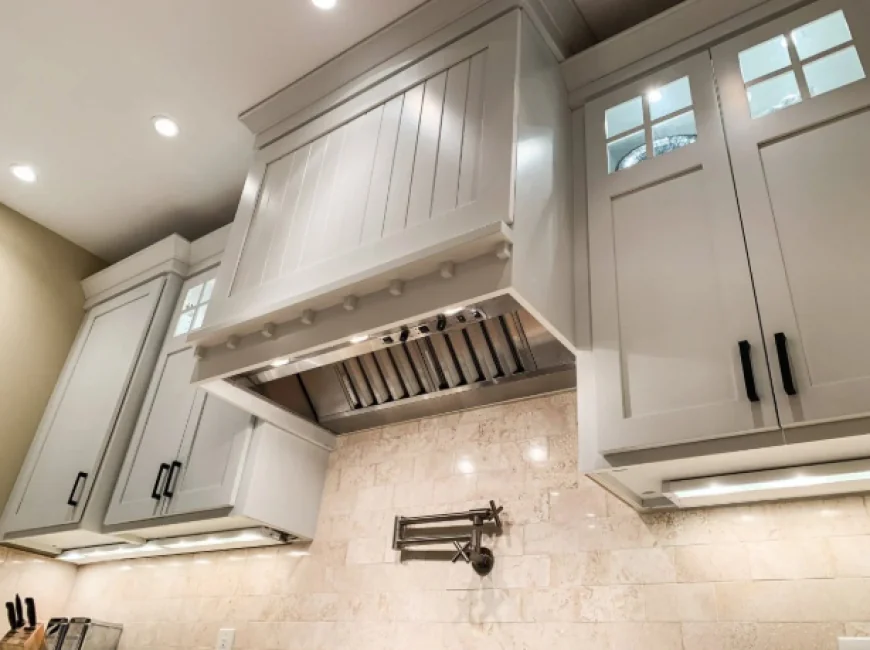

A range hood insert is the ventilation component installed inside a custom hood or cabinet enclosure. Unlike a conventional wall-mounted or under-cabinet hood, the insert itself is integrated into the surrounding structure.

This allows the visible hood enclosure to be customized while the insert provides the blower, filters, lighting, and controls. Because the insert is concealed within another structure, accurate measurements are especially important before installation.

A properly sized insert should provide adequate coverage over the cooking area while leaving the clearance required for mounting and airflow.

How to Size a 30-Inch Insert?

One of the most important considerations when selecting a 30-inch hood range insert is the relationship between the insert and the custom enclosure.

The cabinet or custom hood opening must be measured rather than assuming that a 30-inch opening requires a 30-inch insert. Proline's sizing guidance states that inserts are generally sized 2 inches smaller than the cabinet opening. For example, a 30-inch opening would accommodate a 28-inch insert.

This distinction matters because an insert that is too large may not fit correctly, while an incorrectly sized enclosure can create installation and ventilation problems.

How Much Airflow Do You Need?

Airflow is typically measured in cubic feet per minute (CFM). The appropriate airflow depends on factors such as the cooking appliance, cooking style, kitchen configuration, and ventilation design.

A homeowner who primarily prepares light meals may have different requirements from someone who regularly grills, fries, sears, or cooks at high temperatures. Gas cooking can also produce combustion pollutants, making effective exhaust particularly important.

Ducted Ventilation vs. Recirculation

A 30-inch hood range insert can be part of a ducted ventilation system when the installation is designed to exhaust air outdoors. Ducted ventilation removes cooking emissions from the home instead of returning filtered air to the kitchen.

Recirculating systems use filters to capture grease and reduce odors before returning air indoors. While this configuration can be useful where outdoor ducting is unavailable, it does not provide the same removal of cooking pollutants and moisture as exterior exhaust.

The EPA recommends venting range hoods outdoors when possible because cooking can increase indoor particulate matter.

Why Hood Size Should Match the Cooking Area?

The hood should provide adequate coverage over the cooking surface so rising smoke and particles can reach the intake. A properly positioned insert can improve capture, particularly when cooking on the back burners.

A larger cooking surface may require a wider ventilation solution. For example, homeowners considering a 60 hood range should evaluate the hood's width, cooking appliance dimensions, required airflow, and available installation space rather than simply choosing equipment based on width alone.

The cooking style also matters. Frequent high-heat cooking can generate more smoke, grease, and airborne particles than occasional low-temperature cooking.

Important Installation Considerations

Before installing a 30-inch hood range insert, verify the enclosure dimensions, insert depth, mounting requirements, electrical specifications, duct size, and required clearances.

Ductwork should also be planned carefully. Excessive bends, undersized ducts, or poorly designed exhaust routes can reduce effective airflow and increase noise.

If the ventilation system has a high exhaust capacity, makeup air may also need to be considered. EPA guidance notes that larger kitchen exhaust fans can require makeup air to avoid excessive depressurization and potential backdrafting of combustion equipment.

Conclusion

A 60 hood range and a smaller insert serve different cooking configurations, so ventilation equipment should be selected according to the appliance width, cooking habits, enclosure dimensions, airflow requirements, and available ductwork. Proper measurements are particularly important with custom installations, where the insert must fit within the enclosure rather than simply matching the cooking surface width. Selecting the correct equipment and maintaining its filters can help improve smoke and grease capture while supporting better kitchen ventilation.
