What Is an MS Lined Reducing Tee and Where Is It Used?

Tees split or combine flow in process piping, and each branch point must withstand pressure, temperature, and chemical exposure. The MS Lined Reducing Tee handles that job when the branch pipe is smaller than the main pipe. Its mild steel body gives the fitting structural strength, while the internal lining shields the metal from corrosive process fluids. Plants that move acids, alkalis, and solvents pair this fitting with PTFE-lined pipes to keep branch connections leak-free and maintenance intervals long.

What Is an MS Lined Reducing Tee?

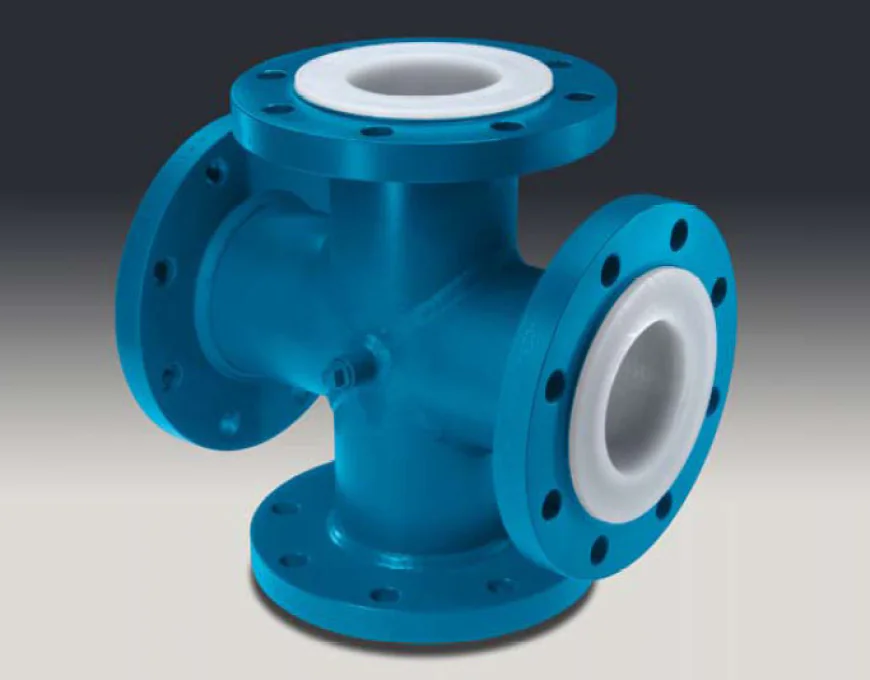

An MS Lined Reducing Tee is a T-shaped fitting with a mild steel shell and a polymer lining bonded to the inside. The steel shell carries pipeline loads and holds the flanges. The lining, such as PTFE, FEP, or PFA, forms a continuous skin that keeps the process fluid away from the metal surface. Unlike an equal tee, whose branch matches the run diameter, a reducing tee narrows the branch outlet. A 100 mm run, for example, can feed a 50 mm branch directly. That layout removes the need for a separate reducer at the junction.

How Is an MS Lined Reducing Tee Constructed?

Mild Steel Outer Body

The mild steel shell gives the fitting its mechanical strength and dimensional stability. It supports the lined assembly during installation and withstands line pressure, vibration and bolt loads in operation.

Internal Lining

The lining acts as a continuous protective barrier between fluid and steel. Engineers choose PTFE, FEP, or PFA according to the chemicals present and the operating temperature of the line.

Reduced Branch Connection

The smaller branch joins a larger main line directly, so one fitting links two pipe sizes. Designers keep the layout compact without stacking multiple lined reducers and tees at one junction.

What Are the Benefits of an MS Lined Reducing Tee?

Protection Against Corrosion

The lining blocks direct contact between aggressive fluids and the steel body. That protection extends service life in corrosive acid and alkali lines and reduces both replacements and unplanned shutdowns.

Chemical Resistance

PFA-lined fittings handle a wide range of industrial chemicals once the lining polymer matches the process fluid. Selection must account for both chemical concentration and the operating temperature range.

Strong Mechanical Support

The MS construction gives more structural strength than a polymer fitting alone. Industrial piping systems that need a rigid external shell, bolted flanges and support points benefit from this build.

Connection Between Different Pipe Sizes

A reducing tee connects a smaller branch to a larger main pipeline in one step. That simplifies piping layouts and cuts the number of extra reducers, spools and gasketed joints.

Where Is an MS Lined Reducing Tee Used?

Chemical Processing Plants

Chemical plants use this fitting in transfer lines, feed headers and process piping. It handles acids, alkalis and similar fluids where a bare steel tee would corrode from the inside.

Pharmaceutical and Specialty Chemical Industries

Pharmaceutical and specialty chemical plants need corrosion resistance and clean internal flow paths. The smooth lining surface resists product buildup and keeps metal ions out of sensitive batch process streams.

Water and Wastewater Treatment

Treatment plants dose chemicals such as chlorine and acids into process water. Lined reducing tees handle these chemically treated and corrosive streams while the lining protects the mild steel body.

Industrial Process Piping

Process lines branching between different pipe sizes use this fitting to protect the metal body from the process medium. One piece replaces a tee and reducer pair on mixed-diameter headers.

What Factors Should Be Considered When Selecting One?

A lined tee performs only as well as its match to the duty. Check the following points against your process data before you order.

• Process fluid type and concentration decide which lining the tee needs.

• Operating temperature and pressure must stay within the rated limits of the lining and steel body.

• The lining material needs proven compatibility with every chemical in the line.

• Main pipe and branch pipe sizes must match the piping drawing.

• Connection type and dimensions, including flange rating and face-to-face length, need confirmation before fabrication.

• Lining thickness, quality and uniformity set service life, so buyers should request spark test results.

• Applicable piping and manufacturing standards must govern the design and testing of the fitting.

Common Applications of MS Lined Reducing Tees

Plants across the process sector install MS lined reducing tees wherever a branch must shrink in diameter and the fluid would otherwise attack bare steel.

• Chemical transfer lines

• Acid and alkali handling systems

• Process plants

• Water treatment systems

• Pharmaceutical processing

• Specialty chemical manufacturing

• Corrosive fluid distribution systems

Conclusion

An MS Lined Reducing Tee joins a smaller branch to a larger main pipe and protects the line from internal corrosion. Mild steel contributes mechanical strength, while the lining contributes chemical resistance. Buyers should select the fitting by matching fluid compatibility, temperature, pressure, dimensions and lining specifications to the actual duty.
