PE Bundler: How Automatic Packaging Systems Improve Efficiency

Packaging operations often need to handle multiple products quickly while maintaining consistent sealing and secure product grouping. Manual wrapping can become difficult when production volumes increase, particularly when packages must move through a continuous line. Automated polyethylene packaging equipment provides a way to streamline these processes while maintaining repeatable packaging conditions. A PE Bundler combines automated sealing and wrapping functions to package products using polyethylene film. Systems such as the MULTIMAC D Series are designed for medium- to high-speed industrial applications, with automatic operation and configurations intended for different product and film requirements.

What Is a PE Bundler?

A PE bundler is packaging equipment designed to group and wrap products using polyethylene film. Depending on the system, products can move through an automated process involving infeed, film application, sealing, and subsequent handling.

This type of equipment can be useful when manufacturers need consistent packaging across repeated production cycles. Instead of relying entirely on manual wrapping and sealing, automated equipment can coordinate several packaging stages within a production line.

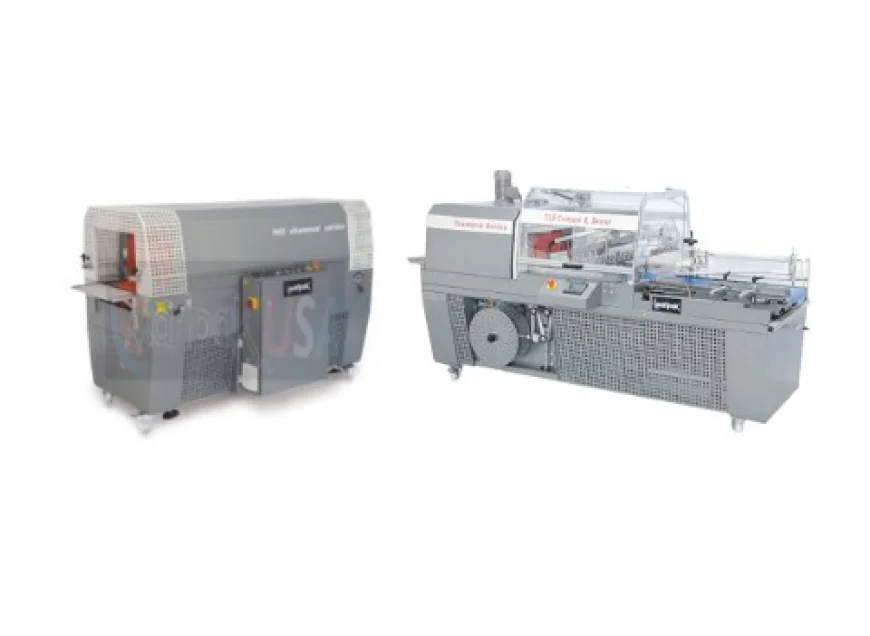

The MULTIMAC D Series, for example, combines an automatic PE sealing system with a heat tunnel on a single chassis.

How Automatic PE Packaging Works

An automated packaging system typically moves products into the wrapping area through a conveyor or infeed system. The film is positioned around the product grouping before the sealing mechanism creates the package.

The MULTIMAC D Series uses a sealing bar and heat-resistant components for the sealing process. Its controls include automatic length detection and a touchscreen interface, while an automatic post-cooling mechanism supports the sealing process after heat is applied.

These automated functions help reduce repetitive manual steps and provide more consistent package handling.

Film Selection Is Important

The packaging film used by the machine needs to match both the equipment and the application. The MULTIMAC D Series is designed for polyethylene film with thickness specifications ranging from 1 to 3 mil, or approximately 30 to 80 microns.

Film width also varies according to the specific machine model. The D 60, D 80, and D 100 models accommodate different conveyor and film widths, allowing packaging operations to select equipment based on product dimensions and production requirements.

Using compatible film is important for achieving proper sealing and reliable package formation.

Production Speed and Automation

Production speed is one of the main reasons manufacturers consider automated packaging equipment. The MULTIMAC D Series is specified for conveyor speeds of up to approximately 65 feet per minute and standard cycle estimates of up to 20 cycles per minute. Servo configurations can reach higher cycle rates depending on product size, film type, and the associated infeed system.

Actual production performance depends on the products being packaged and the configuration of the complete line. Machine specifications should therefore be evaluated alongside the intended production requirements.

Choosing the Appropriate Machine Size

Different products require different packaging dimensions. The MULTIMAC D Series includes D 60, D 80, and D 100 models, with increasing conveyor, cross-sealer, and maximum film widths.

For example, the D 60 has a 24-inch conveyor and maximum film width, while the D 80 provides 31-inch dimensions for both. The D 100 increases those dimensions to 39 inches.

Choosing a machine therefore requires consideration of product dimensions, package configuration, required throughput, and available floor space.

Integration With Production Lines

Automation becomes more useful when packaging equipment can connect effectively with the surrounding production system. The MULTIMAC D Series includes motorized inlet and discharge conveyors and can be configured with options for additional conveyor control. Casters with brakes also allow the equipment to be positioned within a production environment.

Before installation, manufacturers should consider the available floor space, electrical requirements, compressed-air requirements, product flow, and downstream equipment.

Maintenance and Operator Considerations

Automated equipment still requires regular maintenance and proper operation. Operators should understand machine controls, film loading procedures, sealing components, safety features, and routine inspection requirements.

The D Series includes touchscreen controls, package-setting recall functions, warning notifications, and adjustable operating features intended to support repeatable production.

Following manufacturer instructions for maintenance and operation can help keep packaging processes consistent and reduce avoidable interruptions.

Evaluating Equipment for Specialized Businesses

Packaging equipment is generally selected according to the products being packaged rather than the industry name alone. A business should evaluate package dimensions, material requirements, production volume, available space, and desired automation level before choosing equipment.

Conclusion

Automated polyethylene packaging systems can help manufacturers create consistent packages while reducing repetitive manual handling. A Maripak USA  can combine film wrapping, sealing, conveyor movement, and other automated functions into a coordinated packaging process. Evaluating product dimensions, film specifications, production speed, machine capacity, installation requirements, and maintenance needs can help businesses determine whether this type of equipment fits their operation.
