What Minus 40 Degrees Actually Changes on a Rope Safety Lock

What Minus 40 Degrees Actually Changes on a Rope Safety Lock

Cold weather ratings get treated like paperwork. A unit is specified, the datasheet shows a temperature range, and the -40 figure is either noted and forgotten or not noted at all. That is a mistake, because on an overspeed safety device the low-temperature variant is not a certification sticker. It changes the parts, the tolerances, and the behaviour of the device at exactly the moment you are relying on it.

This matters more often than people expect. A Fall Arrester spends its working life in the places that are least forgiving: tower cranes and hoist towers in winter, fire-service and rescue gear in cold stores, marine and offshore winches, and elevated work platforms that sit idle through a cold season. Those are also exactly the environments where the rope is stiff, the lubricants are thick, and every steel component is contracting at a different rate.

Why cold is harder on this particular device

An overspeed safety lock contains a small number of moving parts that all have to move together, in order, at one precise speed. Two flyweights travel outward against a centrifugal force. A latch releases. Jaws close on a steel wire rope. Each of those steps depends on friction, and friction is what cold degrades first.

Consider each step separately.

The flyweight return. Below the set speed, the flyweights sit against the internal stop. Above it, they must travel far enough to release the latch. The travel is small, and the margin between "seated" and "releasing" is deliberately narrow. Cold changes the viscosity of whatever grease is in that space and changes the dimensional relationship between the shaft and the housing as each contracts. A unit that releases cleanly at 20 degrees can release late, or inconsistently, at -25.

The latch. The latch is the part that has to transition from "holding" to "free" every single time the set speed is reached. If the latch face is dry, cold, or slightly contaminated, the release threshold drifts. This is not a failure that shows up on a bench test in a warm workshop.

The jaw bite. The jaws are hardened steel. The rope is steel. Both contract, at different rates, and the jaw opening has to remain within the range where the rope is gripped but not crushed. This is why the series carries a rope diameter range rather than a single diameter, and it is why the low-temperature version is specified against that range rather than against a generic label.

How the low-temperature variant is actually different

Within the OSL30 series the split is between the standard model and the A variant, and the difference is confined to two specific families.

The OSL308 and the OSL308A share a rope speed of 30 m/min and an accepted rope diameter in the 8.3 mm range, with a 630 kg holding capacity and a unit mass of about 4.5 kg. The OSL309 and OSL309A share a rope speed of 42 m/min, a rope diameter of 9.1 mm, an 800 kg holding capacity, and a mass of about 5.0 kg. In each pair, the A suffix designates the low-temperature version qualified to minus 40 degrees Celsius.

What that qualification is built from is the interesting part. It is not one component swapped in. Cold-rated units of this type are addressed through the whole kinematic chain: lubricant selection appropriate to the low-temperature range, materials chosen so that the flyweights and housing contract in a way that preserves the trigger relationship, and jaw surfaces treated so that the coefficient of friction at arrest does not fall off the way an untreated surface does when the rope is cold and dry.

The practical consequence is that the low-temperature version has a trigger speed that remains predictable across the range. The standard version is engineered for a normal range and will generally hold its set point, but nobody builds a standard unit against -40 degrees, because the standard unit was never asked to.

The commutation interlocks that make cold work safe

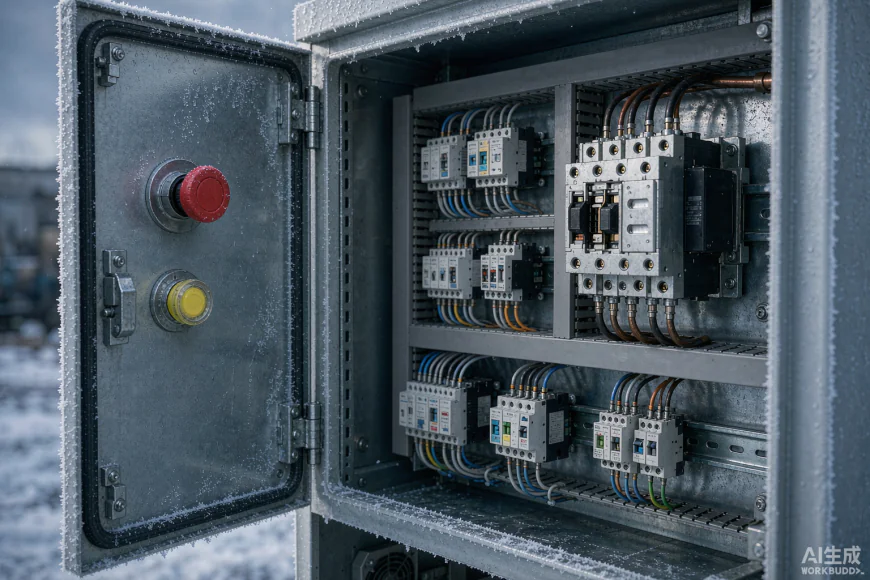

The mechanical device is only one half of a safe cold-weather arrangement. The other half is the control side, and this is where most cold-weather incidents actually originate.

An overspeed arrest on a hoist in a cold climate will typically be followed by a stop, a reset, and a return to service. If that reset is not interlocked against movement, someone will reset the Fall Arrester while the drum is still turning, or restore power to a hoisting contactor while the jaws are still closed on the rope. Both are the kind of mistake that only ever happens once, because the consequence is immediate and obvious.

Four interlocks are worth confirming during commissioning, and each of them should be verified by observation rather than assumed from the wiring diagram.

1. Reset blocked above zero rope speed. The reset must be refused unless the rope is stationary. Verify by attempting a reset with the hoist jogging and confirming the circuit refuses.
2. Reset blocked with the load suspended. A reset that is available while a load hangs on the rope invites a dropped load. Confirm the load-relay contact is in the reset permissive.
3. Hoist inhibit after an arrest. Once the jaws have closed, the hoisting direction should be locked out until the device has been reset and the cause recorded. Confirm the arrest contact is wired into the drive's permissive chain rather than only into an indicator lamp.
4. Directional isolation. Lowering and hoisting should not share the same permissive. Many older installations use a single contactor stack that defeats the point of having an interlock at all.

A commissioning procedure that actually tests the cold path

Standard commissioning is done warm, and warm commissioning is where the habit of trusting this equipment comes from. A procedure that suits cold climates deliberately includes the thermal condition.

Begin with a static check. Confirm the rope seats fully in the jaw throat, the guide alignment is correct, and the mounting takes the arrest load. Then confirm the electrical interlocks in the sequence above, each verified by attempting the prohibited action.

Next, run the speed test at operating temperature. Bring the hoist gradually past the set speed under controlled conditions, confirm the jaws close positively, and confirm they do so at the intended rope speed rather than drifting late.

Then test the reset path completely: reset only at rest, reset with no suspended load, and reset with the power isolated at the drive end. Each of these should permit the reset. Each prohibited variation should refuse it. If a variation permits the reset, that is a wiring defect and it will not fix itself in January.

A final point belongs with the hardware. A correctly rated Fall Arrester still protects nothing if the reset permissive is wired straight across the drive contactors. Verify the interlocks, then verify them again in the cold.

Finally, if the unit is going into a cold environment, leave it there and re-test after it has reached ambient. A cold soak followed by a repeat of the speed test confirms that the trigger relationship survives the thermal cycle. Any unit that passes warm and drifts cold should be replaced with a low-temperature variant, not readjusted.

Why adjusting a cold unit is the wrong response

When an overspeed device trips early on a cold morning, the instinctive response is to loosen the adjustment until it stops tripping. This is exactly backwards. An early trip on a cold unit is usually the low-temperature variant behaving correctly on a marginal trigger relationship, or a standard unit being asked to do work it was not qualified for. Loosening the setting removes the only protection margin you have.

The correct response is to identify which condition you are in and correct it at the specification level: fit the low-temperature variant, confirm the rope diameter is inside the jaw range, confirm the rope speed measurement is the one the device is set for, and check the electrical interlocks. A trigger setting is not a maintenance dial.

What the rating does and does not promise

A minus 40 degree qualification on an OSL-series unit is a specific, bounded promise: within that ambient range, with the correct rope diameter class and a correct installation, the trigger relationship and the jaw bite hold. It does not promise tolerance of ice, moisture, contamination, chemical attack, mechanical damage, or an installation that was never aligned.

Cold weather does not create the failure. It removes the margin that was hiding a specification or installation problem for the rest of the year. Treating the low-temperature variant as a real engineering decision rather than a line on an order form is what keeps that distinction useful instead of decorative.
