Trigger Speed Is Not a Setting, It Is a Mechanical Agreement

Trigger Speed Is Not a Setting, It Is a Mechanical Agreement

Most overspeed protection decisions get made from a catalogue. Someone opens a table, finds the rope speed of the hoist they are replacing, and orders whatever device carries a matching number. That approach works until the day it does not, and the day it fails is usually the day the rope is running faster than the original specification because the drum was re-rated, the gearbox was swapped, or the installation was never measured properly in the first place.

The reason is straightforward: the overspeed device on a Fall Arrester is not detecting speed in isolation. It is detecting the moment when the rope, the sheave, the rope retention jaws, and the structural attachment point stop behaving as one system. The number on the label is only the last variable in that chain.

What the centrifugal trigger is actually measuring

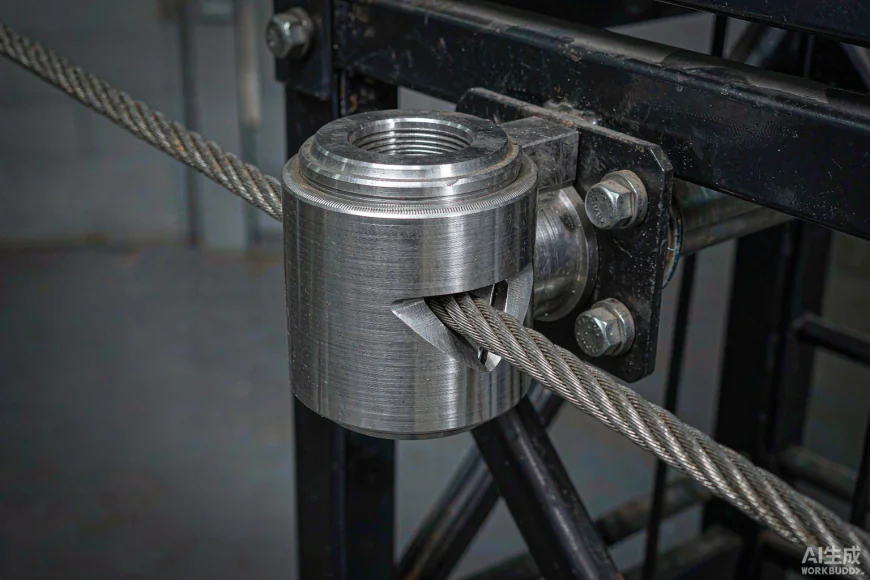

An OSL-series overspeed safety lock works on a simple and durable principle: two flyweights sit inside the body of the unit. As the rope passes through the device, the rotation of the shaft drives those flyweights outward. Below the set speed they stay seated against the internal stop. Above the set speed they move far enough to release a latch, and the retention jaws close on the rope with a force well beyond anything the hoist can continue pulling.

That mechanism gives you two distinct numbers, and they are frequently confused with one another:

• Rope speed — expressed in metres per minute, this is what the device is set to detect.
• Rope diameter range — expressed in millimetres, this is the range of rope the jaws are able to grip reliably.

Looking at the OSL30 series data, the pairing is explicit. The OSL308 and OSL308A carry a nominal rope speed of 30 m/min and accept rope diameters in the 8.3 mm range, at a holding capacity of 630 kg and a unit mass of roughly 4.5 kg. The OSL309 and OSL309A move to 42 m/min, widen the accepted rope diameter to 9.1 mm, lift capacity to 800 kg, and sit at approximately 5.0 kg. The A variants are the low-temperature versions, qualified to operate down to minus 40 degrees Celsius.

Read across a row rather than down a column and the logic is easy to see. Increasing the rope speed increases the flyweight rotational demand, which increases the force the jaws must generate to arrest a rope that is now carrying more kinetic energy. A larger rope is stiffer and heavier, which means the jaws need more clamping force for the same arrest. The pairing is deliberate engineering, not a menu of independent options.

Why selecting by rope speed alone fails

Consider a hoist specified at 30 m/min on an 8 mm rope. The rope is at the low end of what an 8.3 mm jaw accepts, and the unit is correct for that rope. Now the site replaces the hoist with a higher-speed model for productivity reasons. The rope diameter stays the same because the sheave is unchanged. The device now sees 42 m/min through an 8.3 mm rope, which is above the OSL308 rating and inside the OSL309 range on speed but at the bottom edge on diameter.

The arrest still happens. What changes is the margin. The unit is now operating at the extreme lower edge of its rope diameter range, at elevated speed, in an installation whose inertia nobody recalculated. When it does arrest, the shock load transmitted into the rope and into the structural attachment is higher than the original design anticipated.

This is the failure mode that matters. An overspeed device is not a comfort feature; it is the last element standing between a failed hoist and a dropped load. Its job is not to work. Its job is to work once, predictably, at a force the structure can survive.

The matching exercise you should actually perform

Before ordering any Fall Arrester for an installation, collect four numbers from the actual machine rather than from a datasheet:

1. Measured rope speed at the drum. Measure it under real load, not nameplate. A hoist that is within its own tolerance at full rated load may sit above nameplate at a fraction of that load, depending on the control method.
2. Actual rope diameter, measured. Include the thimble and the eye. Rope, not the nominal line size listed in the manual.
3. Installation temperature range. If the unit sits outdoors, on a tower crane in winter, or on a fire-service hoist in a cold store, the standard variant is the wrong part. The A variants exist for this reason and the -40 degree qualification is not a marketing figure.
4. Rated capacity of the line. The holding capacity of the device (630 kg or 800 kg in this series) must be read against the rope and the load, not treated as an independent rating.

Then check the pair against the OSL30 series table rather than against the row that matches your hoist's original specification. If your measured rope speed has drifted above the original nameplate value, you need the higher-speed variant, and you need to confirm the rope diameter still falls inside that variant's jaw range.

Installation details that quietly defeat a correct selection

A correctly specified overspeed lock can still fail to perform if it is installed carelessly. Three details account for most of that.

First, rope seating. The rope must sit fully in the jaw throat with no twist and no lay of the rope bridging the throat edge. A rope that is not fully seated reduces the effective contact area, and the jaws lose part of their bite exactly when they need it most.

Second, the guide alignment. The device needs the rope entering and leaving on the same controlled axis. Rope that enters at an angle causes the flyweights to run out of true, which changes the effective trigger speed and introduces a wear condition that grows over time.

Third, and most often overlooked, the mounting. The Fall Arrester has to be anchored to a structure that can absorb the arrest load. The dynamic force of a rope arrest is a multiple of the static line tension, and it is a short-duration impulse rather than a sustained load. A bracket that is perfectly adequate for holding the unit in place can still deform under that impulse and change the geometry of the jaws at the moment of arrest.

On climbing applications, the OSL30 series is designed to be fitted through an adapter onto the climber rather than into a fixed structure. That is worth noting because it moves the question: with an adapter mount, the strength path runs through the adapter and the climber's own structure, so the adapter becomes the component that has to be specified, not an accessory.

Commissioning checks worth the time

After installation, before the hoist returns to service, run a controlled overspeed test. Raise the speed to just past the set point with no load and confirm the jaws close. Then reset, and confirm the reset is positive — the device must not re-engage until it has been reset deliberately and the hoist is at rest.

Watch for a unit that trips instantly and repeatedly. That pattern usually points to a rope speed that is too near the set point for the current line, or a rope that is running with a twist that is triggering the flyweights early. Both are installation problems masquerading as device problems, and both are worth correcting before the unit is accepted.

The bottom line

Overspeed protection is specified at the intersection of rope speed, rope diameter, temperature, capacity, and structural mounting, and none of those five is optional. The OSL30 series makes the legitimate combinations explicit: 30 m/min with 8.3 mm rope at 630 kg, or 42 m/min with 9.1 mm rope at 800 kg, each available in a standard and a -40 degree variant.

Measure the machine you actually have, match the pair, and mount it so the arrest load has somewhere to go. Everything else is paperwork.
