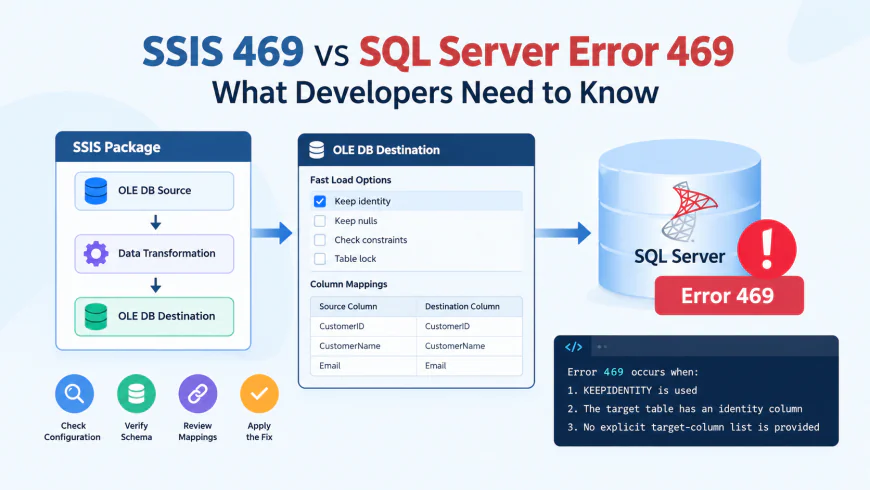

SSIS 469 vs SQL Server Error 469 What Developers Need to Know

When an SSIS package fails with an error identified as 469, it can be tempting to assume that the problem is a specific SSIS error or package-level configuration issue. However, the terminology can be misleading. SQL Server documents error 469 as a Database Engine error related to the KEEPIDENTITY table hint, identity columns, and the requirement for an explicit target-column list.

The error can appear while an SSIS package is loading data into SQL Server, particularly when an OLE DB Destination uses fast-load options and identity values are being preserved. Understanding where the error originates makes troubleshooting much easier.

What Is SSIS 469?

“SSIS 469” is commonly used as a search term for an error encountered while working with SQL Server Integration Services (SSIS). However, it is important to distinguish between the environment in which the error appears and the actual source of the error.

SSIS is Microsoft's platform for building data integration and ETL workflows. An SSIS package can extract data from a source, transform it, and load it into a destination such as SQL Server.

During the loading stage, SSIS can use components such as the OLE DB Destination. Microsoft documents that this destination supports fast-load options, including an option to keep identity values from imported data.

If the resulting database operation meets the conditions for SQL Server error 469, the failure may therefore be observed during SSIS execution.

This is why searching for SSIS 469 can lead to confusion. The package may be where you encounter the problem, but error 469 itself is documented by Microsoft under SQL Server Database Engine errors.

Is SSIS 469 an Official SSIS Error Code?

Not in the sense of an official SSIS product version or a standalone SSIS-specific error definition.

Microsoft's Database Engine error catalog lists 469 as a severity 16 error with the following condition: an explicit column list must be specified for the target table when the KEEPIDENTITY table hint is used and the table contains an identity column.

That distinction matters when diagnosing the problem.

Instead of assuming that “SSIS 469” represents a general SSIS failure, developers should examine the complete error message and determine what SQL Server operation the SSIS package was attempting to perform.

A useful way to think about the relationship is:

SSIS package → Data Flow → OLE DB Destination → SQL Server load operation → SQL Server error 469

SSIS is responsible for the data-integration workflow, while SQL Server is reporting the specific Database Engine error.

What Does SQL Server Error 469 Actually Mean?

SQL Server error 469 occurs when three conditions come together:

1. The operation uses the KEEPIDENTITY table hint.

2. The target table contains an identity column.

3. An explicit column list has not been provided for the target table.

Microsoft's official error catalog documents this exact condition.

An identity column is a column for which SQL Server automatically generates sequential values according to its configured seed and increment. Microsoft documents the IDENTITY property as a mechanism for generating values for a column when rows are inserted.

For example, a target table might contain:

CREATE TABLE Customers

(

    CustomerID INT IDENTITY(1,1),

    CustomerName NVARCHAR(100),

    Email NVARCHAR(255)

);

Here, CustomerID is an identity column.

If a bulk-loading operation attempts to preserve identity values from the source while the target column list is not explicitly specified, SQL Server can reject the operation with error 469.

Why Can Error 469 Appear During an SSIS Package?

SSIS frequently acts as the orchestration layer for moving data into SQL Server.

For example, a package might contain:

OLE DB Source → Data Transformation → OLE DB Destination

The OLE DB Destination supports several loading modes, including regular table/view loading, fast loading, variable-based destinations, and SQL commands.

Its fast-load configuration also includes a Keep identity option. Microsoft explains that this option determines whether identity values from imported data are copied or whether SQL Server assigns identity values.

Therefore, an SSIS package can encounter error 469 when its destination configuration causes SQL Server to perform a load involving KEEPIDENTITY against a table with an identity column without the required explicit target-column list.

The important point is that the error should be investigated at the database-load operation, not simply treated as a generic SSIS failure.

Understanding KEEPIDENTITY

KEEPIDENTITY is related to preserving identity values during bulk data loading.

Normally, when you insert a row into a SQL Server table containing an identity column, SQL Server generates the identity value.

For example:

INSERT INTO Customers

    (CustomerName, Email)

VALUES

    ('John Smith', '[email protected]');

SQL Server can generate the CustomerID automatically.

However, during certain data-migration or bulk-loading scenarios, you may need to preserve identity values that already exist in the source data.

That's where identity-preservation options become relevant.

The SSIS OLE DB Destination's fast-load configuration provides a Keep identity option specifically for deciding whether imported identity values should be retained. Microsoft states that this option is available with fast-load access modes and defaults to false.

For a migration where source IDs must remain unchanged, preserving identity values can be necessary. For a normal load into a new SQL Server table, however, allowing SQL Server to generate new identity values may be more appropriate.

How Identity Columns Trigger Error 469

The identity column itself isn't necessarily the problem.

The problem occurs because SQL Server needs enough information to understand how the supplied values correspond to the target table when KEEPIDENTITY is being used.

Consider a table:

CREATE TABLE Orders

(

    OrderID INT IDENTITY(1,1),

    CustomerID INT,

    OrderDate DATE,

    OrderTotal DECIMAL(10,2)

);

Suppose the source contains:

OrderID | CustomerID | OrderDate   | OrderTotal

1001    | 25         | 2026-09-01  | 150.00

1002    | 31         | 2026-09-02  | 275.00

If the load is intended to preserve OrderID, the operation needs to explicitly identify the destination columns where required.

Microsoft's error definition specifically states that an explicit column list is required for the target table when KEEPIDENTITY is used and that table contains an identity column.

This is why checking the target schema and column mappings is one of the first troubleshooting steps.

The Role of OLE DB Destination in SSIS 469

The OLE DB Destination is particularly relevant because it provides SSIS with a mechanism for loading data into OLE DB-compatible databases, including SQL Server.

Microsoft documents that its fast-load mode provides several options, including:

• Keep identity

• Keep nulls

• Check constraints

• Table lock

• Rows per batch

• Maximum insert commit size

The Keep identity setting determines whether identity values from imported data are retained.

The destination also provides a Mappings page where input columns are mapped to destination columns. Microsoft notes that destination columns may need appropriate input mappings depending on their properties, and incompatible data types can also cause runtime errors.

Therefore, when investigating an SSIS 469 failure, check both:

• the Keep identity configuration

• the input-to-destination column mappings

These settings help establish whether the package is attempting to preserve identity values and whether the destination mapping matches the target schema.

SSIS 469 Example With a SQL Server Identity Column

Imagine an SSIS package that migrates customer records from an old SQL Server database into a new database.

The destination table is:

CREATE TABLE Customers

(

    CustomerID INT IDENTITY(1,1),

    CustomerName NVARCHAR(150),

    Email NVARCHAR(255)

);

The source already contains customer IDs:

CustomerID | CustomerName | Email

101        | Alice Brown  | [email protected]

102        | Mark Jones   | [email protected]

103        | Sarah Lee    | [email protected]

The business requirement is to preserve those original IDs.

The SSIS OLE DB Destination is therefore configured to keep identity values.

At this point, the load must satisfy SQL Server's requirements for using KEEPIDENTITY. If the target operation doesn't provide the required explicit column list, SQL Server can return error 469.

The important diagnostic question isn't simply:

“Why is SSIS broken?”

Instead, ask:

“Is the destination performing a KEEPIDENTITY load into a table containing an identity column, and is the target column list explicitly defined?”

That question leads directly to the documented cause.

How to Fix SSIS 469

The appropriate fix depends on why identity values are being preserved.

1. Check the Keep Identity setting

Open the relevant OLE DB Destination and check its fast-load configuration.

Microsoft documents the Keep identity option as the setting that controls whether imported identity values are retained.

If preserving source identity values is not necessary, disabling this option may allow SQL Server to generate new identity values.

2. Use an explicit target-column list

If identity preservation is required, make sure the target operation explicitly identifies the destination columns.

For example:

INSERT INTO dbo.Customers

(

    CustomerID,

    CustomerName,

    Email

)

SELECT

    CustomerID,

    CustomerName,

    Email

FROM dbo.SourceCustomers;

The explicit destination list makes the intended column mapping clear.

3. Check SSIS column mappings

Open the OLE DB Destination's Mappings page and verify that the source columns correspond correctly to the destination columns.

Pay particular attention to:

• identity columns

• renamed columns

• newly added columns

• nullable versus non-nullable columns

• incompatible data types

Microsoft specifically documents column mappings as part of the OLE DB Destination configuration.

4. Confirm the target table schema

Don't troubleshoot the SSIS package in isolation.

Check whether the destination table actually contains an identity column:

SELECT

    COLUMN_NAME,

    DATA_TYPE

FROM INFORMATION_SCHEMA.COLUMNS

WHERE TABLE_NAME = 'Customers';

For more detailed schema inspection, SQL Server's catalog views can also be used to identify identity properties.

5. Review the complete error message

Don't rely solely on the number 469.

The complete SQL Server message can tell you whether the failure corresponds to the documented KEEPIDENTITY condition.

This is particularly important because SSIS packages can contain many different components, and unrelated configuration issues can produce entirely different errors.

When You Should Disable KEEPIDENTITY

You should not automatically disable identity preservation just because error 469 appears.

The correct question is whether the original identity values need to survive the migration.

Disable identity preservation when:

• the target should generate new IDs

• source IDs aren't meaningful in the destination

• the destination is intentionally creating a new identity sequence

• there are no business or referential requirements to preserve the original values

For example, if you're importing historical data into a newly designed application and the old CustomerID has no external significance, allowing SQL Server to generate new identity values may be appropriate.

Preserve identity values when:

• other tables reference the original IDs

• the IDs are part of an established data model

• external systems depend on those IDs

• the migration requires exact identifier preservation

• historical relationships must remain unchanged

In those cases, the solution should focus on configuring the load correctly rather than simply turning identity preservation off.

When You Need an Explicit Column List

An explicit column list is particularly important when the target table contains an identity column and the operation uses KEEPIDENTITY.

For example, prefer:

INSERT INTO dbo.Customers

(

    CustomerID,

    CustomerName,

    Email

)

SELECT

    CustomerID,

    CustomerName,

    Email

FROM dbo.SourceCustomers;

rather than relying on implicit positional mapping.

Explicit column lists also make ETL workflows easier to maintain.

Consider what happens if someone later adds a column to the destination table. An implicit mapping can become difficult to reason about, while an explicit list documents exactly which columns the operation is intended to populate.

This becomes particularly useful in long-lived SSIS packages where source and destination schemas may evolve independently.

How to Troubleshoot SSIS 469 Step by Step

If an SSIS package reports error 469, use a structured troubleshooting process.

Step 1: Capture the complete error

Record the entire error message rather than just the number.

Step 2: Identify the failing SSIS component

Determine whether the failure occurs in an OLE DB Destination, Execute SQL Task, or another component.

Step 3: Check the destination table

Look for an identity column in the target table.

Step 4: Check identity preservation

If the OLE DB Destination uses fast load, inspect its Keep identity setting. Microsoft documents this option as controlling whether imported identity values are retained.

Step 5: Review column mappings

Verify every relevant input-to-destination mapping.

Step 6: Check the SQL operation

If the package uses a SQL command or another bulk-loading mechanism, inspect the command for the conditions that could invoke KEEPIDENTITY.

Step 7: Test with identity preservation disabled

If business requirements allow it, perform a controlled test without preserving source identity values.

If the load succeeds, this provides useful evidence that the identity-preservation configuration is related to the failure.

Step 8: Test with explicit mappings

If identity values must be retained, use explicit target columns and verify the complete mapping.

Step 9: Review SSIS logging

Microsoft's OLE DB Destination documentation recommends package logging and the Diagnostic event for logging calls made by the destination to external data providers during troubleshooting.

This can provide additional information about what the destination is doing when the failure occurs.

How to Prevent Similar SSIS Data-Load Errors

Preventing identity-related problems starts with treating the source and destination schemas as part of the ETL design.

Document identity requirements

Before creating a migration package, determine whether identity values need to be preserved.

Avoid unnecessary identity preservation

Don't enable Keep identity simply because it is available. Use it when the migration actually requires the source identity values.

Maintain explicit mappings

Keep SSIS mappings synchronized with the destination schema.

Test schema changes

If columns are added, removed, renamed, or have their data types changed, test the affected SSIS packages before deploying them.

Validate migration logic with representative data

Test:

• existing identity values

• duplicate IDs

• missing values

• foreign-key relationships

• large data volumes

• new destination records

Monitor package execution

Logging can make it easier to determine whether a failure originates in the SSIS component or the database operation it invokes.

A structured monitoring and testing process is especially valuable for production ETL pipelines.

Proper technical optimization and clear website structure also matter when businesses want their technical content to remain accessible and discoverable through search. You can learn more about modern SEO and its key practices.

SSIS 469 FAQs

Is SSIS 469 an official SSIS error?

The term “SSIS 469” is commonly used to describe an error encountered during an SSIS workflow, but Microsoft documents error 469 under SQL Server Database Engine errors. Its documented condition involves KEEPIDENTITY, an identity column, and an explicit target-column list.

What causes SQL Server error 469?

According to Microsoft's error catalog, it occurs when KEEPIDENTITY is used with a target table containing an identity column without specifying an explicit target-column list.

Can an OLE DB Destination cause SSIS 469?

An OLE DB Destination can be involved because its fast-load configuration includes a Keep identity option. That option can cause identity values from imported data to be retained, making the destination configuration relevant when investigating error 469.

Should I always disable Keep Identity?

No. If your migration requires the original identity values to remain unchanged, disabling identity preservation may not meet the business requirement. First determine whether the source IDs need to be retained.

What should I check first?

Start with the complete error message, the target table's identity columns, the OLE DB Destination's Keep identity setting, and the input-to-destination mappings.

Is error 469 caused by an old version of SSIS?

Error 469 should not automatically be interpreted as an SSIS version issue. Microsoft categorizes 469 as a SQL Server Database Engine error with a specific KEEPIDENTITY and identity-column condition.

Conclusion

SSIS 469 can be confusing because the error is encountered during an SSIS workflow, while Microsoft's documented SQL Server error 469 relates specifically to a database loading condition.

The key elements are KEEPIDENTITY, an identity column in the target table, and the requirement for an explicit target-column list.

When troubleshooting the issue, start by identifying the failing destination, checking whether identity values are being preserved, reviewing the target schema, and validating the column mappings. The OLE DB Destination's fast-load settings are particularly important because Microsoft provides a dedicated Keep identity option for preserving imported identity values.

The goal shouldn't simply be to disable a setting until the package runs. Instead, determine whether the migration requires original identity values and then configure the SSIS data load accordingly. This approach makes the ETL workflow more predictable and reduces the risk of introducing incorrect identifiers or broken relationships into the destination database.
