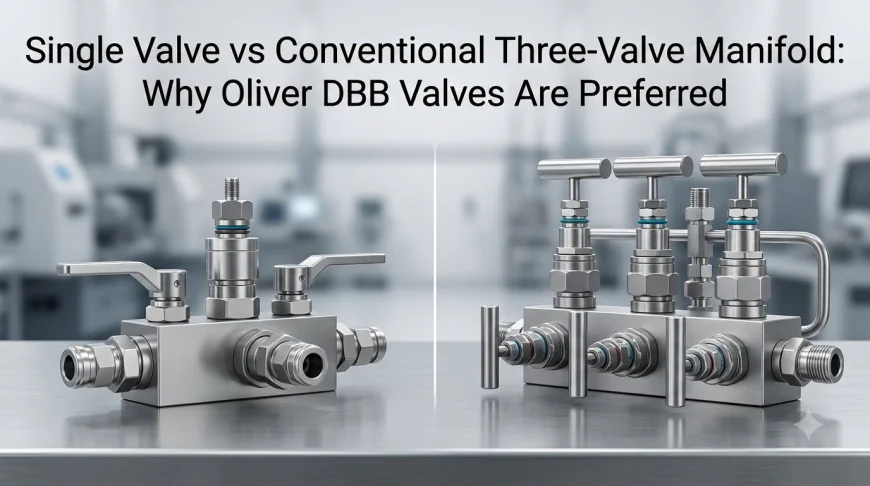

Single Valve vs Conventional Three-Valve Manifold: Why Oliver DBB Valves Are Preferred

Process isolation decisions carry real consequences in oil and gas, petrochemical, power generation, and chemical processing. A poorly specified isolation arrangement increases leak risk, complicates maintenance, and adds installation hours that accumulate across dozens of instrument loops on a large project. Conventional three-valve manifold arrangements have handled this function for decades, but Oliver DBB Valves integrate isolation and bleed into a single forged body, changing the comparison between these two approaches significantly. Understanding what separates a single valve DBB from a conventional three-valve manifold helps engineers and procurement teams specify the more appropriate solution for each application.

Understanding the Two Isolation Methods

Conventional three-valve manifolds combine two isolation valves and one equalizing or bleed valve in separate bodies connected by threaded or flanged joints. The arrangement is familiar, widely stocked, and suits differential pressure instrumentation across most process applications. Multiple valve bodies mean multiple connections, each one a potential leak path that requires inspection, torquing, and monitoring throughout the installation's service life.

Single-body Oliver DBB valves combine both isolation valves and the bleed valve into one forged body. There are no threaded joints between the isolation and bleed functions the fluid path passes through machined internal bores in a single piece of forged bar stock. Fewer external connections directly reduce the number of leak paths present in the installation, which matters in any service where fugitive emissions carry safety, regulatory, or environmental consequences.

Single Valve vs Conventional Three-Valve Manifold: Side-by-Side Comparison

Why Oliver DBB Valves Are Preferred

The leak path reduction is the central engineering argument. A conventional three-valve arrangement introduces multiple threaded joints between valve bodies each joint requires gaskets or PTFE tape, periodic re-torquing, and inspection. A single-body DBB valve eliminates those intermediate connections entirely. On a project with 200 instrument loops, that difference accumulates into a measurable reduction in total joint count, inspection hours, and potential emission points.

Compact installation follows from the single-body design. Oliver DBB valves fit into space-constrained instrument locations that cannot physically accommodate a conventional three-valve hook-up with its extended piping runs. Skid-mounted systems and offshore platforms where instrument space is engineered to the centimetre particularly benefit from the reduced footprint. Weight savings compound the space advantage; a lighter instrument assembly reduces load on pipe supports and instrument stands, which matters on elevated process structures.

Installation labour drops when one assembly replaces three separate valves with their associated fittings, supports, and tubing connections. Procurement simplifies to a single line item rather than three valve orders plus fittings. Documentation, material certification, and inspection records cover one part number instead of several reducing administrative overhead on large EPC projects where instrument loop documentation runs to thousands of pages.

Maintenance simplification is operational rather than just theoretical. Isolating and bleeding an instrument loop through a DBB valve involves fewer valve operations and fewer inspection points per routine maintenance cycle. That efficiency adds up across a plant's full instrument count over a 25-year service life.

Factors to Consider Before Choosing Between the Two Options

1. Process pressure and temperature: confirm the DBB valve's pressure-temperature rating against maximum operating conditions including upset scenarios; not all DBB configurations cover every pressure class.

2. Available installation space: measure the physical envelope; single-body DBB valves suit tight locations that conventional three-valve arrangements physically cannot fit.

3. Instrumentation layout: evaluate whether the DBB valve's end connections and mounting interface suit the transmitter and process nozzle without additional adaptors.

4. Maintenance accessibility: consider how often the loop requires isolation for calibration or transmitter replacement, and whether the DBB valve's handle positions allow operation in the available space.

5. Number of potential leak points: count joints in both configurations against the process hazard level; high-consequence service justifies the DBB valve's reduced joint count even where cost difference is marginal.

6. Applicable industry standards: confirm compliance with API 6D, ASME B16.34, or project-specific instrumentation standards before specifying either solution.

7. Material compatibility: verify body material, seat material, and stem packing suit the process fluid; stainless steel covers most instrument isolation service, with special alloys available for corrosive streams.

8. Required pressure class: confirms the DBB valve's rated pressure class matches the process flange rating; mismatched pressure classes require engineering deviation approval.

9. Lifecycle maintenance costs: calculate inspection frequency, replacement part cost, and maintenance labour across the expected service life rather than comparing only initial procurement price.

10. Supplier support and documentation: confirm EN 10204 3.1 material certificates, pressure test records, and dimensional documentation are available; these are standard requirements on most EPC and operator projects.



Common Mistakes to Avoid During Valve Selection

Selecting on initial purchase cost alone misses the installed cost calculation a conventional three-valve arrangement that appears cheaper per valve requires additional fittings, labour, and piping supports that close the price gap on most instrument loops. Ignoring installation space leads to field modifications when the specified arrangement physically does not fit the available envelope. Overlooking leak path count creates inspection and maintenance burdens that persist for the installation's full service life.

Incorrect pressure ratings cause engineering hold-points during pre-commissioning when inspectors confirm the specified valve does not match the process line class. Unverified material compatibility causes accelerated seat wear or body corrosion in service both result in early replacement that costs significantly more than specifying the correct material initially. Failing to review applicable API and ASME standards before finalising the specification creates documentation gaps that delay project handover.

Questions to Ask Before Purchasing Oliver DBB Valves

• Is the valve supplied as a single forged-body DBB assembly with integrated bleed?

• Which pressure classes ANSI 150 through 2500 and end connections are available from stock?

• What body materials are offered: 316 SS, carbon steel, or special alloys for corrosive service?

• Does the valve comply with API 6D or ASME B16.34 as applicable to the project specification?

• Are EN 10204 3.1 material certificates supplied with every order?

• What pressure testing seat leak and body hydrostatic is performed before dispatch?

• What are current lead times for standard stock sizes and for project-volume orders?



Conclusion

Both Oliver DBB valves and conventional three-valve manifolds deliver the isolation and bleed functions that instrument loops require. The practical difference is in how many components, connections, and inspection points each arrangement introduces into the installation. Where installation space, leak point reduction, maintenance efficiency, and total installed cost all factor into the specification decision which they should on any well-engineered project the single-body DBB valve's integrated design consistently justifies its selection over a conventional three-valve arrangement for critical process isolation applications. Reliable suppliers such as Priminox Overseas provide certified Oliver instrumentation valves with full material traceability and technical documentation to support project specifications.
