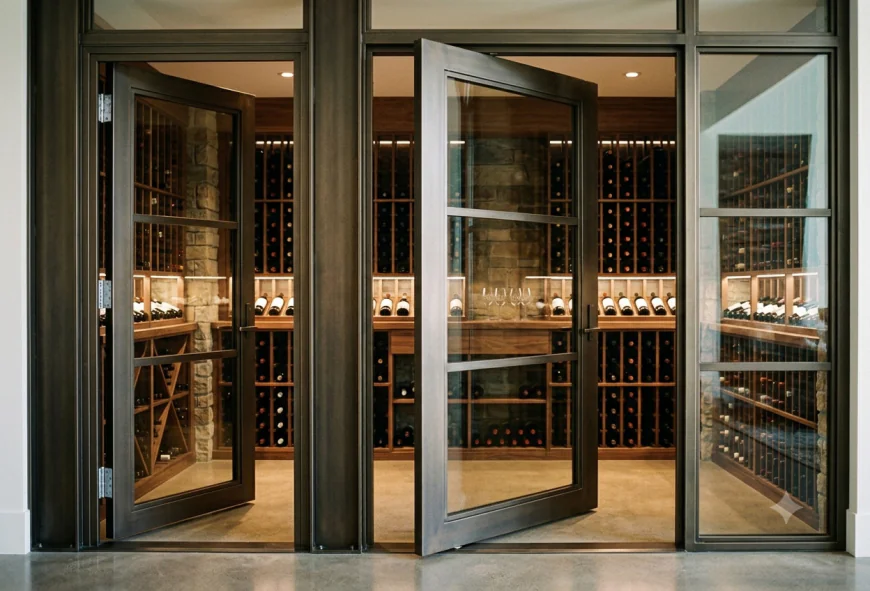

Pivot, Hinged, or Bi-Fold? Choosing the Right Opening System for Custom Metal Wine Doors

Choosing the right opening system for Custom Steel & Aluminum Wine Doors depends on your display space size, clearance room, and climate-control needs. Traditional hinged doors offer the tightest perimeter weather seal for strict temperature control, pivot doors deliver a dramatic modern entrance for large openings, and bi-fold doors maximize open access in space-constrained rooms.

What Should You Consider Before Selecting a Wine Room Door System?

Building a luxury wine display requires balancing visual appeal with strict environmental management. Standard interior doors allow conditioned air to escape, causing cooling units to overwork and leading to premature system failure.

A dedicated wine enclosure must maintain a steady internal temperature of 55°F (13°C) and a relative humidity level between 60% and 70%. Achieving these conditions requires thermally isolated frame profiles, specialized perimeter gaskets, and high-performance glass units designed to block ambient room heat.

Why Are Hinged Metal Doors the Gold Standard for Climate Control?

Hinged swing doors remain the most popular choice for traditional and modern wine cellars alike because of their structural simplicity and airtight closure.

• Maximum Seal Pressure: Side-mounted butt hinges or continuous piano hinges pull the door leaf firmly against the frame jambs when closed, compressing the perimeter weatherstripping evenly.

• Proven Thermal Retention: The tight mechanical seal prevents cool air leakage, keeping your cooling unit running efficiently without frost buildup.

• Versatile Sizing: Available as single panel units or double French door configurations to fit standard rough openings ranging from 30 inches to 72 inches wide.

• Floor Clearance Simplicity: Accommodates automatic drop-down bottom seals that seal the floor gap when closed and retract automatically when swung open.

If your primary goal is absolute climate preservation for investment-grade wine collections, a classic hinged assembly using custom glass wine room doors provides the highest thermal efficiency.

When Should You Choose a Steel Framed Pivot Wine Cellar Door?

Pivot systems swap traditional side hinges for top and bottom pin mechanisms set along a rotating axis, allowing massive glass panels to swing effortlessly.

• Architectural Impact: Creates a stunning, floating visual effect that serves as a focal centerpiece in contemporary living rooms, dining spaces, or tasting cellars.

• Heavy Panel Support: Floor-mounted pivot hardware transfers panel weight directly to the floor structure rather than hanging it from the wall frame, allowing for oversized steel profiles.

• Wide Rough Openings: Ideal for broad entryways spanning 42 inches to 60+ inches per leaf without requiring multiple door mullions.

• Offset Axis Clearance: Can be mounted with a 4-inch to 12-inch offset from the jamb, creating an opening flow on both sides of the pivot point.

Select a steel framed pivot wine cellar door if you are designing a high-end architectural display and have sufficient clearance space on both sides of the panel arc. Note that pivot hinges require specialized magnetic or continuous weatherseals around the pin clearance points to prevent air infiltration.

Are Bi-Fold Metal Doors Practical for Wine Enclosures?

Bi-fold glass doors feature multiple narrow panels hinged together that slide along a top ceiling track, folding neatly against the perimeter walls when open.

• Space-Saving Operation: Requires minimal outward swing clearance, making them ideal for narrow hallways, under-stair wine displays, or compact tasting alcoves.

• Full Wall Openings: Folds almost completely out of the way to blend your wine storage display seamlessly with adjacent entertaining areas.

• Custom Panel Count: Configurable with two, three, or four folding leaves based on your total wall opening width.

While bi-fold systems maximize opening accessibility, they contain multiple panel-to-panel joints that require heavy-duty continuous gasket seals. Ensure your bi-fold specification includes climate controlled wine enclosure metal doors equipped with dual-lip EPDM gaskets along every folding stile to maintain room temperature.

How Do Metal Frame Options Compare for Custom Wine Enclosures?

Choosing between steel and aluminum framing impacts structural profile slimness, total system weight, and overall climate management performance.

• Steel Framing Strengths: Steel delivers exceptional tensile strength, allowing for ultra-slim frame sightlines down to 1-1/8 inches while supporting heavy insulated double-pane glass.

• Steel Framing Considerations: Heavier overall panel weight requires solid structural backing at the header or floor mounting locations.

• Aluminum Framing Strengths: Extruded aluminum offers lightweight operation, complete immunity to rust in high-humidity zones, and built-in continuous thermal break channels.

• Aluminum Framing Considerations: Requires slightly wider frame profiles than steel to support equivalent glass sheet dimensions without flexing.

Both metal materials perform exceptionally well when properly engineered. To eliminate frame condensation or interior "sweating," ensure your design incorporates thermally broken metal wine cellar doors that separate the cold interior frame face from warm exterior room air.

Clear Selection Summary: Which System Should You Choose?

• Choose Hinged Doors if: You prioritize strict 55°F temperature stability, long-term wine aging protection, and a classic single or double French door layout.

• Choose Pivot Doors if: You are building a large contemporary feature display where visual drama, oversized glass panes, and ultra-narrow steel sightlines take priority.

• Choose Bi-Fold Doors if: You need to open an entire wall section for social events or have restricted floor space in front of the wine room opening.

At Custom Metal Windows & Doors, we design and precision-craft custom steel and aluminum door systems engineered specifically for high-end residential and commercial wine enclosures. Contact our design engineering team to discuss frame profiles, hardware specifications, and glass options for your upcoming project.

Frequently Asked Questions

Do wine cellar doors need double-pane glass?

Yes, wine room glass doors should always utilize insulated double-pane glass units to prevent thermal transfer and condensation. Single-pane glass allows room heat to penetrate the cellar, causing temperature spikes and frame sweat. Using low-E glass coatings also protects stored wine bottles from harmful ambient light exposure.

Can I install a pivot door on an actively cooled wine cellar?

Yes, you can install a pivot door on an actively cooled cellar, provided the frame is manufactured with dedicated perimeter weatherstripping and drop-down floor sweeps. Because top and bottom pivot pins create small gaps at the rotation points, precision-engineered magnetic or silicone compression seals are required to stop cool air leakage.

What is a thermal break in a metal door frame?

A thermal break is a non-conductive composite material placed between the interior and exterior metal frame sections. Because steel and aluminum naturally conduct heat, a thermal break stops heat from traveling from your warm living space into your cooled wine enclosure, preventing frame sweating and energy loss.

How wide should a wine cellar entry door be?

A standard single wine cellar entry door is typically 32 to 36 inches wide to allow comfortable access while carrying wine crates or storage racks. Double door openings typically span 60 to 72 inches wide, while custom pivot doors can easily accommodate single openings up to 48 to 60 inches wide.

Will a bi-fold wine door seal out humidity?

A properly designed bi-fold metal door with dual-lip EPDM seals along every folding panel stile will maintain proper humidity levels. However, because bi-folds contain more moving panel joints than hinged doors, high-quality compression locking hardware is necessary to hold the panels tight against the frame gaskets when closed.
