NEMA 12 Electrical Enclosure: Uses and Selection Tips

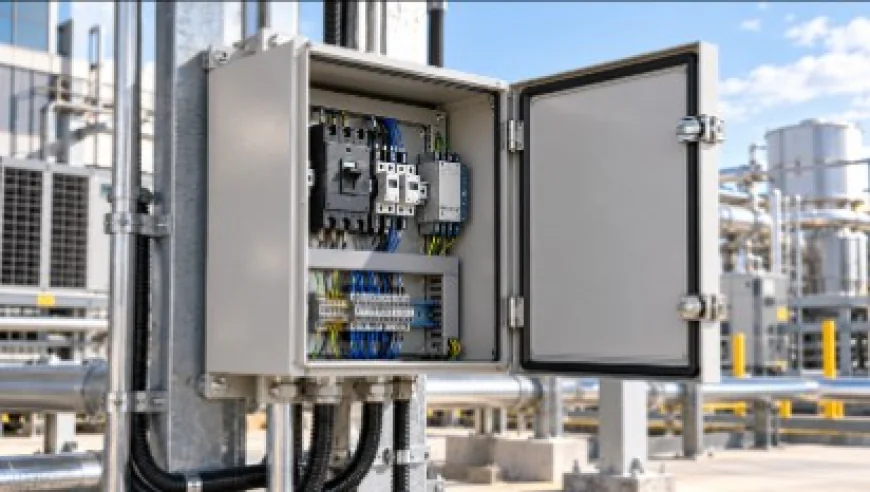

What Is a NEMA 12 Electrical Enclosure?

Industrial electrical systems often operate in environments where dust, falling dirt, fibers, and occasional dripping or splashing liquids may affect sensitive components. A NEMA 12 electrical enclosure is designed for indoor applications where protection against these specific environmental conditions is necessary.

These enclosures are commonly used to house electrical controls, automation equipment, wiring terminals, and instrumentation in manufacturing facilities, workshops, and commercial buildings. By providing a protective housing, they help reduce exposure to contaminants and accidental contact with internal electrical components.

Choosing the appropriate enclosure involves more than matching cabinet dimensions. Engineers and facility managers must consider environmental conditions, equipment requirements, installation space, and applicable electrical standards.

Understanding the NEMA 12 Rating

The National Electrical Manufacturers Association (NEMA) publishes enclosure classifications that describe how enclosures protect equipment against specified environmental hazards. NEMA Type 12 is intended primarily for indoor use and provides protection against circulating dust, falling dirt, lint, fibers, and dripping or light splashing liquids that are not corrosive.

This makes a NEMA 12 electrical enclosure a useful option for many indoor industrial environments where contaminants may be present but exposure to severe outdoor weather is not expected.

However, the rating has limitations. It does not mean an enclosure is suitable for every liquid exposure, outdoor installation, or corrosive environment. If equipment will face heavy washdowns, rain, or corrosive chemicals, another enclosure type may be more appropriate. The decision should be based on the actual conditions and the manufacturer's documented rating.

Common Applications in Industrial Settings

Manufacturing and Production Lines

Manufacturing facilities often contain motors, control panels, sensors, and automated machinery. Dust and production debris can accumulate around electrical components, potentially interfering with operation or increasing maintenance needs.

A properly selected NEMA 12 electrical enclosure can provide a protective barrier for control equipment in suitable indoor production areas. Its effectiveness depends on proper installation, intact seals, and appropriate cable-entry arrangements.

Automation and Process Control

Automated production systems rely on components such as programmable logic controllers, relays, switches, and communication equipment. These components may need to be grouped in a cabinet that allows organized wiring and convenient maintenance access.

A NEMA 12 cabinet can provide a structured space for these systems while helping limit exposure to specified indoor contaminants. Designers should also account for heat generated by internal equipment, since a protective enclosure can restrict natural airflow.

Workshops and Commercial Facilities

Workshops, assembly areas, and equipment rooms may experience airborne particles, lint, or occasional moisture from routine operations. Where conditions align with the rating, this enclosure type can help protect electrical assemblies and keep components organized.

The surrounding environment should always be evaluated before installation, especially if cleaning practices involve direct water jets or chemical solutions.

Materials, Construction, and Design Features

The material and construction of an enclosure influence its durability, weight, corrosion resistance, and suitability for a particular location.

Painted steel is widely used for indoor industrial cabinets because it offers a rigid structure and can provide a durable finished surface. Stainless steel may be considered where corrosion resistance or specific sanitation requirements are important, although the required material grade depends on the environment.

When assessing a NEMA 12 electrical enclosure, review several design features:

• Door seals and gaskets: These help maintain the enclosure's intended protective performance.

• Latches and hinges: Reliable hardware supports secure closure and repeated access.

• Mounting panels: These provide a foundation for arranging electrical components.

• Cable-entry provisions: Suitable fittings help maintain protection where wires enter the cabinet.

• Internal dimensions: Adequate space allows for wiring bends, component clearances, and future modifications.

Accessories and modifications should be compatible with the enclosure's intended rating. Unapproved openings or poorly installed fittings can compromise protection.

How to Choose the Right Enclosure

Begin by identifying the equipment that needs housing and estimating the required internal space. Allow room for wiring, ventilation or thermal management, and future maintenance.

Next, evaluate the environmental hazards. Consider the type of dust present, the likelihood of liquid exposure, ambient temperature, and whether cleaning procedures could introduce conditions beyond the enclosure's capabilities.

Also assess access requirements. Frequently serviced equipment may benefit from a practical door arrangement, suitable locking hardware, and a clear internal layout. For larger control systems, confirm that the mounting surface can support the loaded cabinet and that technicians can access it safely.

Comparing different NEMA enclosures can help determine whether Type 12 provides adequate protection or whether the installation requires a different classification. Ratings should be selected according to the actual application rather than assumed to be interchangeable.

Maintenance and Inspection

Routine inspection helps identify problems before they affect equipment protection. Check doors, gaskets, latches, mounting hardware, and cable entries for damage or deterioration. Look for signs of moisture intrusion, excessive dust accumulation, corrosion, and overheating.

Cleaning should follow the enclosure manufacturer's instructions and the facility's electrical safety procedures. Before opening a cabinet, qualified personnel should follow appropriate isolation and lockout procedures whenever required.

Conclusion

A NEMA 12 electrical enclosure is a practical choice for many indoor applications that require protection against specified dust, dirt, fibers, and limited liquid exposure. Selecting the correct size, material, accessories, and installation method helps support reliable equipment operation and easier maintenance. Before finalizing a design, compare the expected environmental conditions with the enclosure's documented capabilities. Reviewing suitable NEMA enclosures alongside the project's electrical and safety requirements helps ensure that the selected cabinet provides the protection the application needs.
