How Standard 12/16/25 Pin Watertight Connectors Improve Reliability

Reliable electrical connections are essential in environments where equipment is exposed to water, moisture, pressure, dust, vibration, and demanding operating conditions. From marine electronics and underwater instrumentation to industrial control systems and offshore equipment, connectors must maintain stable electrical performance while protecting internal contacts from environmental damage.

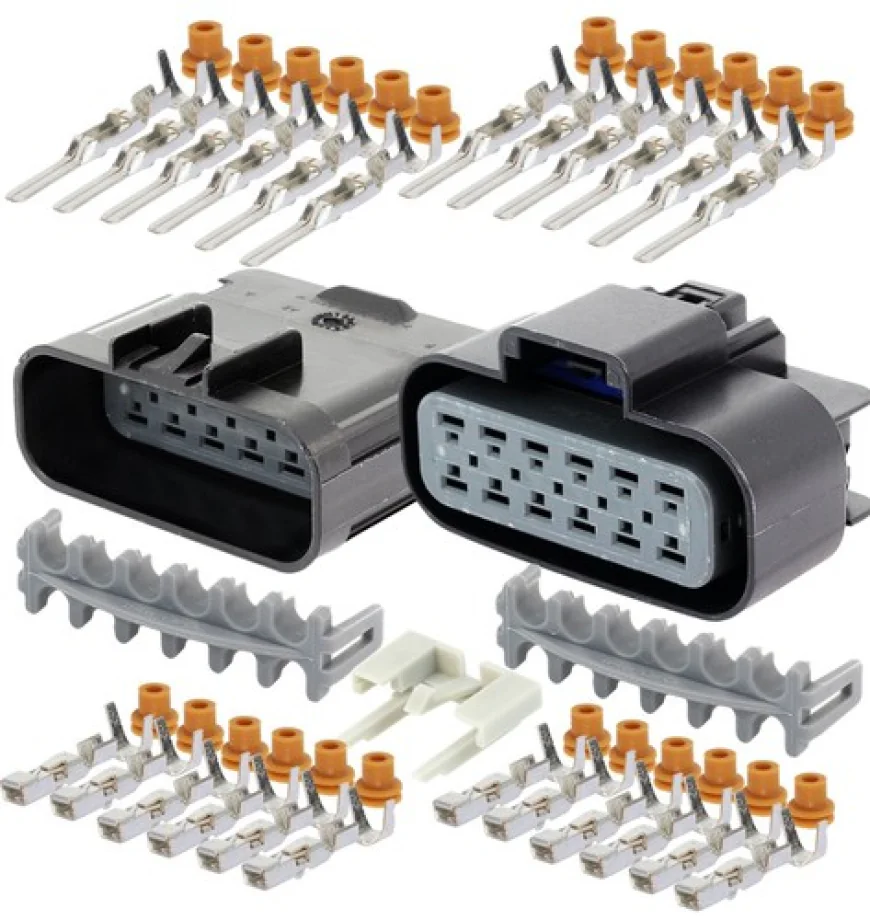

Standard 12/16/25 Pin Watertight Connectors are designed to address these challenges by providing secure multi-pin connections with effective protection against water and other external conditions.

Understanding Watertight Connectors

Watertight connectors are specialized electrical components designed to prevent water from reaching sensitive electrical contacts and connection points. Unlike ordinary connectors, they typically incorporate sealing systems, protective housings, and locking mechanisms that help maintain the integrity of the connection.

The number of pins determines how many individual electrical circuits can be carried through the connector. A 12-pin version may be suitable for systems requiring moderate connectivity, while 16-pin and 25-pin options can support more complex equipment with additional power, signal, communication, or control requirements.

Choosing the appropriate connector depends on the electrical configuration, environmental conditions, installation requirements, and number of circuits needed. A properly selected connector can contribute significantly to long-term system reliability.

Protection Against Water and Moisture

Water is one of the most common causes of electrical connection problems. Moisture can create corrosion, reduce insulation performance, cause short circuits, and eventually result in equipment failure. These problems can become particularly serious in marine and subsea environments.

Standard 12/16/25 Pin Watertight Connectors help reduce these risks by using sealing features that create a barrier between the electrical contacts and the surrounding environment. When correctly installed and maintained, these seals can help prevent water penetration and preserve the condition of the connection.

This protection is especially valuable for underwater equipment, marine sensors, remotely operated systems, pumps, monitoring instruments, and other applications that may operate in wet environments for extended periods.

Maintaining Stable Electrical Performance

A connector does more than physically join two cables or components. It must also maintain reliable electrical contact throughout its service life. Loose connections, corrosion, contamination, and mechanical movement can increase electrical resistance and cause intermittent signals.

A properly engineered multi-pin watertight connector provides a secure connection between corresponding contacts. Robust contact designs can help maintain consistent electrical continuity, while locking mechanisms can prevent accidental separation during operation.

For systems carrying multiple signals, reliable contact is particularly important. A single failed connection may affect a sensor, communication channel, control function, or other part of the equipment. Selecting a suitable connector therefore helps support overall system stability.

Supporting Multiple Circuits

Modern marine and industrial equipment often requires multiple electrical connections within a limited installation area. Using separate single-pin connectors for every circuit can increase cable clutter, installation time, and the number of potential connection points.

Standard 12/16/25 Pin Watertight Connectors allow several circuits to be integrated into one connector assembly. This can simplify cable management and make equipment layouts more organized.

A multi-pin arrangement may be used for combinations of power, control, instrumentation, and signal connections, depending on the connector's specifications. Before installation, users should confirm the required pin configuration, electrical ratings, contact arrangement, and compatibility with the connected equipment.

Improved Mechanical Security

Marine and subsea systems may experience vibration, movement, pressure changes, and mechanical stress. A connector that can easily loosen or disconnect may create serious reliability problems.

Watertight connectors commonly use secure coupling or locking systems to keep the connection firmly engaged. This mechanical protection is important when equipment is installed on moving platforms, underwater vehicles, vessels, pumps, or machinery.

A secure connection can reduce the risk of accidental disconnection during operation. It also helps maintain consistent contact between mating components, particularly when the equipment is exposed to movement or vibration.

Resistance to Harsh Environments

Connectors used in demanding applications must withstand more than water. Saltwater, humidity, temperature variations, dirt, chemicals, and mechanical stress can all affect electrical components.

The materials and sealing systems used in a watertight connector should therefore be selected according to the intended operating environment. Suitable construction can help protect contacts and internal components from environmental exposure.

For subsea applications, users should pay particular attention to pressure ratings and depth requirements. A connector intended for shallow-water equipment may not be appropriate for deep subsea installations. Checking the manufacturer's specifications before selection is essential.

Simplifying Installation and Maintenance

Reliability is also influenced by how easily a connector can be installed, inspected, and maintained. Complicated connection systems can increase the possibility of installation errors, while clearly arranged multi-pin connectors can make wiring more manageable.

Standard 12/16/25 Pin Watertight Connectors can provide a structured connection point for systems with multiple circuits. Proper labeling and pin identification can make troubleshooting and maintenance more efficient.

During installation, technicians should follow the manufacturer's instructions carefully. Cable preparation, contact termination, sealing, mating, and locking procedures all affect the final performance of the connection. Even a high-quality connector may perform poorly if it is incorrectly installed.

Reducing Downtime and Replacement Costs

Unexpected electrical failures can result in equipment downtime, maintenance expenses, and operational delays. In marine and industrial environments, accessing equipment for repairs may also be difficult or expensive.

Reliable connectors can help reduce the likelihood of connection-related failures by protecting electrical interfaces from environmental exposure and mechanical stress. This can contribute to more dependable equipment operation and potentially reduce the frequency of maintenance caused by connector problems.

However, connector reliability should always be considered as part of the complete system. Proper cable selection, correct installation, routine inspection, and appropriate environmental protection are equally important.

Choosing the Right Pin Configuration

The ideal pin count depends on the application's electrical requirements. A 12-pin connector may provide sufficient capacity for a system with a moderate number of circuits. A 16-pin option can accommodate additional connections, while a 25-pin configuration may be appropriate for more complex equipment.

Before purchasing, users should evaluate the number of required circuits, voltage and current requirements, signal type, environmental exposure, operating depth, cable diameter, mating requirements, and space limitations.

It is also important to check compatibility between mating components. Pin arrangements, contact specifications, sealing dimensions, and coupling systems should match the intended application.

The Role of hysfsubsea

hysfsubsea focuses on connector solutions for demanding marine and subsea applications where dependable electrical connections are essential. Its product range can support applications requiring protected connections in challenging environments.

When selecting a connector for a specific project, users should review technical specifications carefully to ensure that the chosen configuration matches their electrical, mechanical, sealing, and environmental requirements.

Conclusion

Reliable electrical connections are fundamental to the performance of marine, industrial, and subsea equipment. Standard 12/16/25 Pin Watertight Connectors can improve reliability by protecting electrical contacts from water and moisture, supporting multiple circuits, providing mechanical security, and simplifying cable management.

Their effectiveness ultimately depends on correct product selection, proper installation, suitable environmental ratings, and regular maintenance.

For equipment operating in wet or demanding environments, investing in appropriately specified watertight connection technology can help create a more dependable electrical system and support consistent performance over the long term.
