How Safety Light Curtains Improve Access Protection in Manufacturing

The efficiency of modern manufacturing facilities depends on equipment automation, robotic systems, conveyors and high-speed production lines. But these automated processes can leave workers at risk of press, pinch and crush injuries from moving machine parts or unexpected motion. Safety light curtains are a reliable non-contact access protection solution that limits workplace accidents without compromising the speed of production.

Understanding Safety Light Curtains in Manufacturing

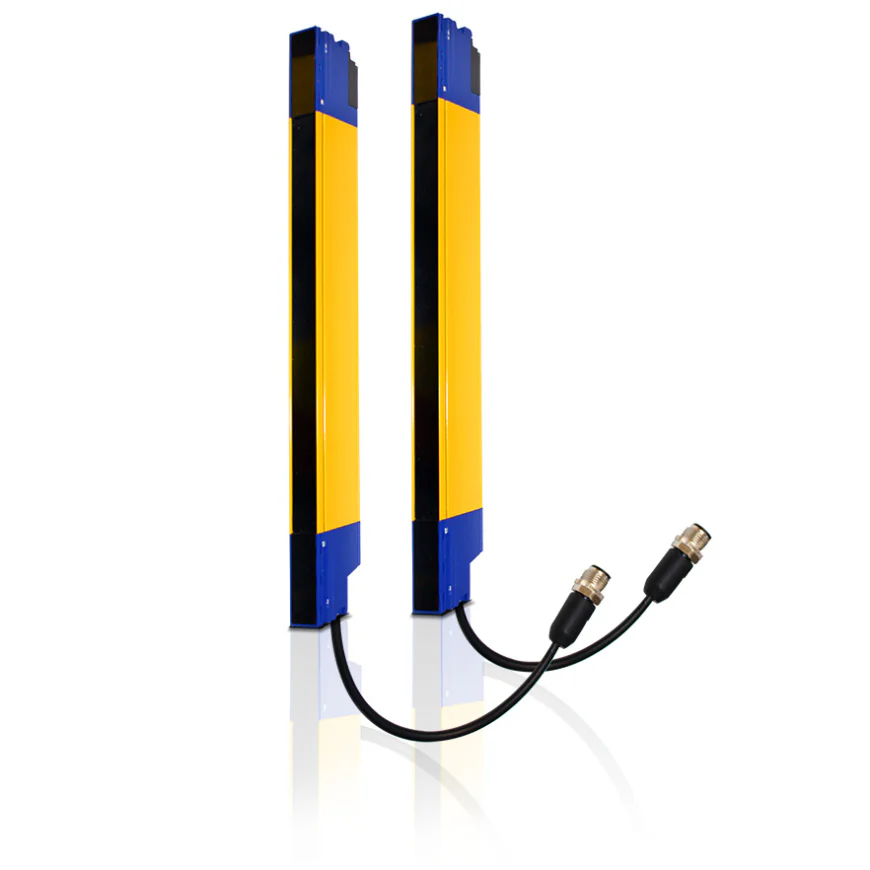

Safety light curtains are optoelectronic protective devices that act as an invisible detection field composed of multiple beams of light projected between a transmitter and receiver. If a person or object enters the area guarded by the safety field, the system gives a command to the control system of machine to trigger prescribed safety response.

Safety light curtains singapore provide operators easier access to the areas of a machine that have been checked as safe, removing the need for operators to routinely open and close protective doors like conventional physical barriers. They are typically applicable to robotic cells, assembly stations, packaging equipment and industrial presses, but predicated on the machine's safety risk assessment.

How Safety Light Curtains Enhance Access Protection

1.      Identify Access Attempts to Dangerous Zones

Detection of entry into protected machine zones is a key advantage that safety light curtains possess. An operator vibration hand, arm or body can interrupt the sensing field which, when properly selected, installed and integrated, allows the safety system to perform a stop prior to that person reaching the hazard.

This strategy is a way to keep personnel from being exposed to its hazardous moving parts, which could occur during event management like loading and unloading, or even typical production processes.

2.      Supporting Efficient Manufacturing Workflows

When your workers need to move material from one part of the production cycle to another, traditional guarding methods can present barriers. These are appropriate for non-hazardous machinery openings and can be used to safeguard areas where material passes through access points rather than needing a hinged guard at every transfer.

When it comes to automated production lines, appropriate configurations will help them strike a balance between the protection of personnel and operational efficiency. But any such muting or blanking function must be suitably designed and subject to validation in order to mitigate undesired unsafe access.

3.      Providing Application-Specific Protection

Different production environments each call for different form protection. Your education comes from measuring the size of the aperture, the position of the hazard, detection resolution and stopping performance required by your machine.

Important considerations include:

·         Finger and hand protection: Higher-resolution models can detect smaller objects when appropriately selected for point-of-operation safeguarding.

·         Protection of body and perimeter: Multi-beam setups are useful to monitor access to larger danger zones.

·         Anti-protection height and range: These must correspond with the entry in addition to any installation requirements.

·         Safety system interface: Outputs must be suitable for use with the machine's safety relay, a safety controller or other validated safety control.

Critical Considerations for Safety Light Curtain Selection

The selection of the appropriate equipment involves more than simply comparing product specifications. Manufacturers need to evaluate the machine hazards, safety performance requirements, environmental conditions and access routes to reach the machine.

Which is especially important in terms of minimum installation distance. It has to take into consideration the whole of response and stopping time, so a dangerous motion stops before someone can reach the danger zone. You may need to follow relevant machinery safety standards, such as IEC 61496 and ISO 13855, to help define the requirements for device selection and positioning.

Conclusion

Effective access protection is critical to supporting safer and more productive manufacturing environments. Safety light curtains help to sense when an unqualified person intrudes into a dangerous or hazardous area, while enabling easy access for appropriate material-handling and automation jobs. They work well only if selected correctly, integrated into the safety system, installed at an approved distance and continuously validated over time. SensorHaus is a supplier of safety light curtain solutions in Singapore including Data sensing options for various industrial safeguarding needs assisting manufacturers in identifying the right equipment for their machine protection use.
