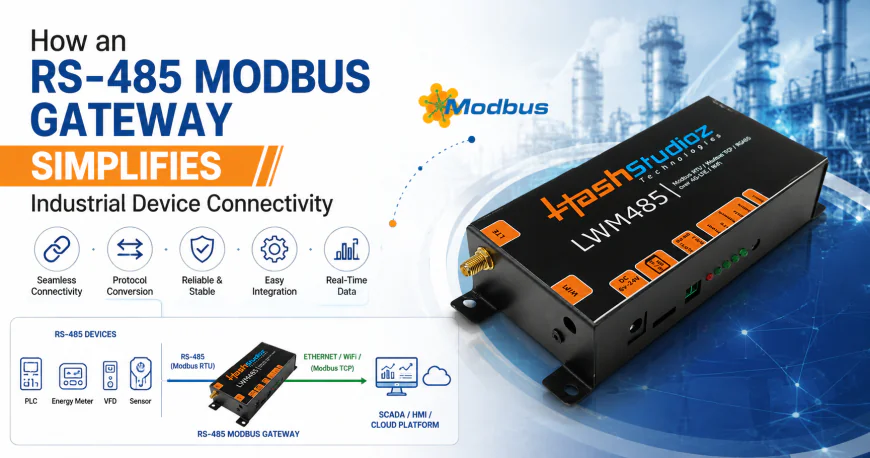

How an RS-485 Modbus Gateway Simplifies Industrial Device Connectivity

Modern industrial environments rely on seamless communication between machines, sensors, controllers, and monitoring systems. From manufacturing plants and energy facilities to water treatment stations and smart buildings, thousands of devices continuously exchange data to ensure efficient operations.

However, many industrial facilities still operate with legacy equipment that communicates using the RS-485 Modbus RTU protocol. While these devices are highly reliable and cost-effective, integrating them with modern Industrial Internet of Things (IIoT) platforms and cloud-based monitoring systems can be challenging.

This is where an RS-485 Modbus Gateway becomes an essential component. Acting as a communication bridge, it enables legacy industrial devices to connect with Ethernet networks, SCADA systems, PLCs, HMIs, and cloud platforms without replacing existing infrastructure.

What Is an RS-485 Modbus Gateway?

An RS-485 Modbus Gateway is a communication device that converts Modbus RTU data transmitted over an RS-485 serial network into other industrial communication protocols such as:

• Modbus TCP

• Ethernet/IP

• MQTT

• OPC UA

• HTTP/HTTPS

• Cloud IoT protocols

The gateway allows multiple industrial devices using RS-485 serial communication to interact with modern Ethernet networks and Industrial IoT platforms.

Instead of replacing legacy equipment, industries can extend the life of their existing devices while taking advantage of digital transformation.

Understanding RS-485 Communication

RS-485 is one of the most widely used serial communication standards in industrial automation.

It offers several advantages:

• Long-distance communication (up to 1200 meters)

• Multi-drop networking

• High noise immunity

• Reliable communication in harsh environments

• Cost-effective deployment

• Support for multiple devices on a single bus

Because of these advantages, RS-485 remains the preferred communication interface for industrial equipment.

What Is Modbus RTU?

Modbus RTU is an industrial communication protocol developed for serial communication.

It allows a master device (PLC, controller, or gateway) to communicate with multiple slave devices such as:

• Energy meters

• Temperature controllers

• VFDs

• Industrial sensors

• Power monitoring devices

• Smart relays

• Flow meters

• Water level sensors

Modbus RTU operates efficiently over RS-485 networks, making it the industry standard for industrial device communication.

Why Industrial Connectivity Is Challenging

Many industries operate with equipment purchased over the last 20–30 years.

Common challenges include:

Legacy Equipment

Older machines often support only RS-485 communication.

Different Communication Protocols

Modern software platforms typically use Ethernet or TCP/IP, while legacy devices use serial communication.

Lack of Remote Monitoring

Without gateways, operators must manually collect data from field devices.

Limited Scalability

Adding new devices becomes increasingly difficult without centralized communication.

Data Silos

Equipment from different manufacturers often cannot communicate directly.

An RS-485 Modbus Gateway solves these problems efficiently.

How an RS-485 Modbus Gateway Works

The gateway acts as a translator between industrial devices and modern networks.

Step 1: Data Collection

Industrial devices send Modbus RTU data over the RS-485 network.

Examples include:

• Voltage

• Current

• Power consumption

• Temperature

• Pressure

• Flow rate

• Motor status

Step 2: Data Processing

The gateway receives serial data and interprets Modbus registers.

Step 3: Protocol Conversion

The gateway converts the data into protocols like:

• Modbus TCP

• MQTT

• OPC UA

• REST API

• Ethernet

Step 4: Data Transmission

Converted data is transmitted to:

• SCADA systems

• PLCs

• Industrial PCs

• Cloud platforms

• Dashboards

• Mobile applications

This enables real-time monitoring and control across the organization.

Key Features of an RS-485 Modbus Gateway

Multi-Protocol Support

Supports communication between serial devices and modern industrial protocols.

Multiple Device Connectivity

One gateway can communicate with dozens of Modbus slave devices.

High-Speed Data Transfer

Ensures reliable communication with minimal latency.

Remote Monitoring

Operators can monitor equipment from anywhere.

Data Logging

Stores operational data for analysis and troubleshooting.

Secure Communication

Supports encrypted communication and user authentication in advanced models.

Industrial Design

Built for harsh industrial environments with:

• Wide operating temperature

• Surge protection

• EMI resistance

• DIN rail mounting

• Rugged enclosure

Benefits of Using an RS-485 Modbus Gateway

1. Extends Equipment Life

Industries do not need to replace functioning RS-485 devices.

The gateway modernizes existing infrastructure without expensive upgrades.

2. Reduces Integration Costs

Instead of replacing hundreds of field devices, organizations simply install one gateway.

This significantly lowers modernization costs.

3. Enables Industrial IoT

The gateway connects traditional industrial equipment to:

• Cloud dashboards

• IoT platforms

• Predictive maintenance systems

• AI analytics

• Energy management software

4. Centralizes Data Collection

Data from multiple machines is collected into one central monitoring system.

Benefits include:

• Better reporting

• Faster decision-making

• Reduced downtime

5. Improves Operational Efficiency

Operators receive real-time equipment status, allowing quick action before problems escalate.

6. Supports Predictive Maintenance

Continuous monitoring helps identify:

• Equipment wear

• Motor overheating

• Voltage fluctuations

• Excessive energy consumption

• Sensor failures

Maintenance teams can address issues before breakdowns occur.

7. Simplifies Network Expansion

New Modbus devices can easily be added without redesigning the entire communication network.

Industrial Applications

Manufacturing

Connects CNC machines, PLCs, and production equipment for centralized monitoring.

Energy Management

Collects data from:

• Energy meters

• Power analyzers

• Smart meters

Used for energy optimization and reporting.

Water Treatment Plants

Monitors:

• Pumps

• Water flow

• Pressure sensors

• Tank levels

Improves operational reliability.

Oil and Gas

Supports communication with:

• Pressure transmitters

• Flow meters

• Valve controllers

• Remote terminal units

Building Automation

Integrates:

• HVAC systems

• Lighting controls

• Power monitoring

• Access control

Renewable Energy

Collects data from:

• Solar inverters

• Battery management systems

• Wind turbines

• Energy storage equipment

RS-485 Modbus Gateway vs Direct RS-485 Communication

Factors to Consider When Choosing an RS-485 Modbus Gateway

Choose a gateway that offers:

• Multiple RS-485 ports (if required)

• Support for Modbus RTU and Modbus TCP

• Ethernet connectivity

• MQTT or OPC UA support

• Industrial-grade protection

• DIN rail mounting

• Wide operating temperature

• High-speed processor

• Secure firmware updates

• Remote configuration capabilities

Selecting the right gateway ensures reliable communication and future scalability.

Best Practices for Deployment

To achieve optimal performance:

• Use high-quality shielded RS-485 cables.

• Follow proper termination and biasing practices.

• Assign unique Modbus slave IDs to each device.

• Keep communication parameters (baud rate, parity, stop bits) consistent across the network.

• Monitor communication errors using diagnostic tools.

• Regularly update gateway firmware to improve performance and security.

• Implement network segmentation and access controls for critical industrial systems.

Future of RS-485 Modbus Gateways

As industries adopt Industry 4.0 and smart manufacturing, gateways are becoming more intelligent.

Modern gateways increasingly support:

• Edge computing

• AI-powered diagnostics

• Predictive maintenance

• Cloud synchronization

• Wireless connectivity

• Real-time analytics

• Digital twins

• Cybersecurity enhancements

These capabilities enable organizations to bridge legacy systems with advanced digital ecosystems while maximizing the return on existing investments.

Conclusion

An RS-485 Modbus Gateway is a vital component for modern industrial automation. It bridges the communication gap between legacy RS-485 Modbus RTU devices and today's Ethernet, SCADA, and cloud-based platforms, allowing businesses to modernize without replacing proven equipment.

By simplifying device connectivity, enabling centralized monitoring, supporting Industrial IoT initiatives, and improving operational efficiency, these gateways help organizations reduce costs, minimize downtime, and make smarter, data-driven decisions.

Whether you're upgrading a manufacturing facility, implementing an energy monitoring system, or deploying a smart industrial network, investing in the right RS-485 Modbus Gateway is a practical step toward building a connected, scalable, and future-ready operation.

Frequently Asked Questions (FAQs)

1. What is an RS-485 Modbus Gateway used for?

An RS-485 Modbus Gateway connects Modbus RTU devices on an RS-485 network with Ethernet, SCADA systems, PLCs, and cloud platforms, enabling seamless communication and centralized monitoring.

2. Can an RS-485 Modbus Gateway connect multiple devices?

Yes. Most gateways support communication with multiple Modbus RTU slave devices on a single RS-485 bus, depending on the gateway's specifications and network design.

3. Is an RS-485 Modbus Gateway compatible with legacy industrial equipment?

Yes. One of its biggest advantages is extending the life of legacy equipment by integrating it with modern automation and IIoT systems without replacing existing devices.

4. What industries commonly use RS-485 Modbus Gateways?

They are widely used in manufacturing, energy management, building automation, water treatment, oil and gas, renewable energy, transportation, and process industries.

5. What should I look for when selecting an RS-485 Modbus Gateway?

Consider protocol compatibility, the number of supported devices, Ethernet and cloud connectivity, industrial-grade design, cybersecurity features, remote management capabilities, and future scalability.
