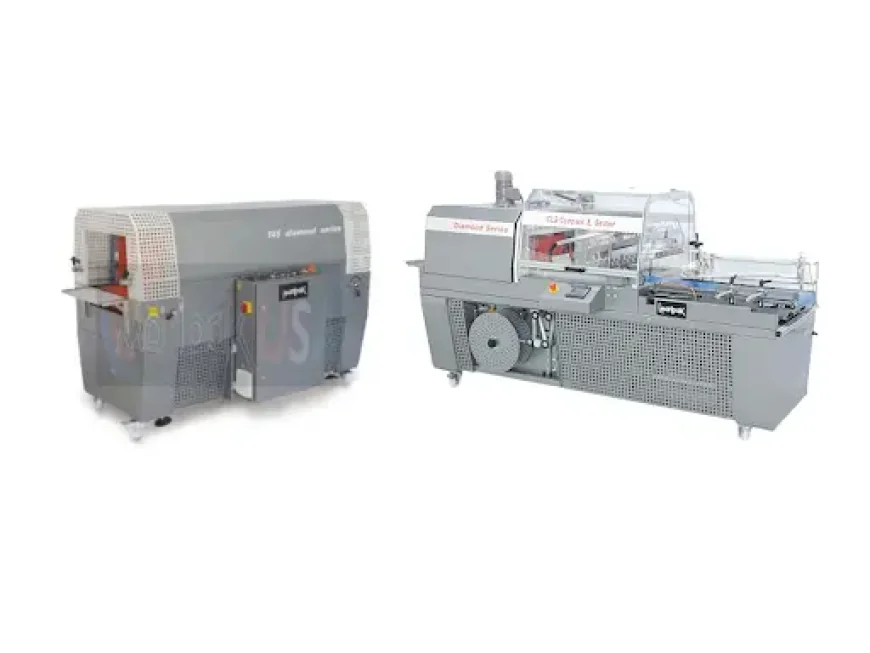

Heat Tunnel Performance: 7 Factors That Shape Shrink Quality

Shrink packaging looks simple from the outside: film is sealed around a product, the package passes through heated air, and the film contracts tightly around the item. In practice, the quality of the final result depends on several variables working together. A heat tunnel must deliver the right combination of temperature, airflow, conveyor speed, dwell time, and product handling to produce consistent shrink without damaging the film or the product.

For packaging operations, this means tunnel selection should be based on more than chamber size or maximum temperature. The way a tunnel manages heat and product movement can have a direct effect on appearance, throughput, energy use, and line reliability.

1. Temperature Control Must Be Consistent

The first major factor is temperature stability.

A heat tunnel needs to maintain controlled heat throughout the shrink zone so that film responds evenly as the package moves through the chamber. If one part of the tunnel is significantly hotter than another, the film may shrink unevenly.

Too little heat can leave loose areas or wrinkles. Too much heat may create distorted film, weak seals, or damage to heat-sensitive products.

The ideal temperature depends on the film specification, package dimensions, conveyor speed, and desired finish. Operators should therefore avoid relying on one universal setting for every product.

2. Airflow Is Just as Important as Heat

Temperature alone does not determine shrink quality.

The hot air must reach all sides of the package effectively. Poor airflow can create uneven shrink, especially around corners, underneath products, or on irregular shapes.

A well-designed heat tunnel uses controlled air circulation to distribute heat throughout the chamber. The direction, speed, and consistency of airflow can influence how quickly the film reacts.

Packages with different shapes may require adjustments because a flat carton and a tall multipack expose different surfaces to the air stream.

Consistent airflow helps reduce the need for repeated passes through the tunnel.

3. Conveyor Speed Controls Dwell Time

The amount of time a package remains inside the tunnel is known as dwell time.

Conveyor speed determines much of this exposure.

If products move too quickly through a heat tunnel, the film may not receive enough heat to shrink fully. If they move too slowly, the package may be exposed to excessive heat.

This means conveyor speed and temperature must be adjusted together.

A faster line may require different temperature or airflow settings than a slower one, even when the same film is being used.

Production teams should test combinations carefully and document successful settings for repeat jobs.

4. Film Type Changes the Required Setup

Different shrink films behave differently when heated.

Polyolefin, polyethylene, and other shrink materials can have different shrink temperatures, shrink forces, thicknesses, and sealing characteristics.

A heat tunnel should therefore be selected and configured with the intended film types in mind.

Changing from one film formulation to another may require adjustments to:

• Chamber temperature

• Conveyor speed

• Airflow

• Film tension

• Seal settings

Even two films that look similar before shrinking can behave differently inside the tunnel.

Consistent results depend on matching the tunnel setup to the actual material being used.

5. Product Shape Influences Shrink Quality

Square boxes are relatively straightforward to shrink-wrap, but many products are not perfectly uniform.

Tall packages, cylindrical items, multipacks, products with open spaces, and irregular shapes can create different airflow patterns.

A heat tunnel must be capable of delivering enough controlled heat around these areas without overheating exposed surfaces.

Product orientation on the conveyor can also affect results.

Rotating a package before it enters the tunnel or changing spacing between products may improve shrink consistency without requiring major changes to temperature.

This is why testing real products is more useful than selecting equipment based solely on catalog specifications.

6. Tunnel Size Should Match Production Needs

A larger tunnel is not always better.

Tunnel dimensions should reflect the size of the products being processed and the required production rate.

An oversized heat tunnel may consume more energy than necessary, while a tunnel that is too small may restrict product variety or throughput.

Important dimensions include:

• Tunnel width

• Tunnel height

• Heated chamber length

• Conveyor width

• Maximum package clearance

Operations should consider both current products and likely future package sizes.

A system that fits only today's smallest SKU may become limiting if the product range expands.

7. Insulation Affects Energy Efficiency

Shrink tunnels operate at elevated temperatures, so heat retention matters.

Good insulation helps keep thermal energy inside the chamber rather than allowing excessive heat to escape into the surrounding workspace.

This can support more stable tunnel temperatures and reduce unnecessary energy loss.

A well-insulated heat tunnel may also create a more comfortable working environment by limiting the amount of heat released into the production area.

Energy efficiency becomes particularly important in facilities where tunnels operate for long shifts or multiple production cycles every day.

Product Spacing Can Affect Results

Packages should enter the tunnel with enough separation to allow hot air to circulate effectively.

When products are positioned too closely together, they can shield one another from airflow. This may create areas where film does not shrink evenly.

Spacing also affects the rhythm of the packaging line.

The sealer, infeed conveyor, tunnel, and discharge section should work at compatible speeds so that products do not accumulate before or after the heat tunnel.

Consistent product spacing can therefore improve both package quality and production flow.

Cooling After the Tunnel Matters Too

Shrink wrapping does not necessarily end the moment the package leaves the heated chamber.

The film is still warm and flexible immediately after shrinking. A stable discharge area gives the package time to cool and set before additional handling.

If hot packages are compressed, stacked, or moved aggressively, the film can become marked or distorted.

A properly designed line should therefore consider the discharge conveyor and cooling period alongside the heat tunnel itself.

This is particularly important for high-speed operations where products move quickly into labeling, case packing, or palletizing.

Watch for Common Shrink Problems

Operators can often diagnose packaging issues by examining the finished film.

Loose film may indicate insufficient heat or excessive conveyor speed. Burn marks or holes may indicate too much heat. Uneven shrink can suggest airflow problems or poor product positioning.

Wrinkling may result from several factors, including film size, temperature, airflow, or sealing conditions.

A heat tunnel should allow enough adjustment to troubleshoot these variables rather than forcing operators to compensate elsewhere in the line.

Documenting successful settings for each product can reduce trial-and-error during future production runs.

Maintenance Supports Consistent Performance

A tunnel can only perform reliably when its components are maintained.

Routine attention may be needed for heaters, temperature sensors, fans, conveyor components, electrical systems, and ventilation areas.

Build-up or mechanical wear can affect airflow and heat distribution over time.

Operators should also watch for changes in package quality that may indicate developing equipment problems.

Preventive maintenance can reduce unexpected downtime and help the heat tunnel maintain repeatable results across long production runs.

Integration With Sealing Equipment Is Important

The tunnel is only one stage in a shrink-packaging system.

If the upstream sealer creates weak or inconsistent seams, the tunnel cannot correct them. Likewise, an excellent seal can still produce a poor package if the tunnel settings are incorrect.

The complete line should be evaluated as one process:

1. Product feeding

2. Film wrapping

3. Sealing

4. Tunnel shrinking

5. Cooling

6. Discharge

7. Downstream packing

Matching the speed and capabilities of each stage helps prevent bottlenecks and inconsistent output.

Conclusion

A heat tunnel plays a central role in determining the appearance, consistency, and efficiency of shrink packaging. Temperature, airflow, conveyor speed, film type, product shape, chamber size, and insulation all need to be considered together rather than adjusted independently. When evaluating industrial equipment such as systems available through Maripak USA, packaging teams should focus on how well the tunnel can be matched to real products, film specifications, production speeds, and future line requirements. The best results come from controlled, repeatable settings and a well-integrated packaging process. When heat exposure and product movement are balanced correctly, a shrink tunnel can deliver cleaner packages while supporting higher throughput and more predictable production.
