Guniting Services for Structural Concrete Repair

Concrete structures are exposed to moisture, corrosion, heavy loads, weather conditions, chemicals, and continuous operational stress. Over time, these factors can cause cracks, spalling, exposed reinforcement, surface deterioration, and loss of concrete section. Guniting provides a practical method for repairing and rebuilding deteriorated concrete by pneumatically applying mortar or concrete at high velocity onto a prepared surface, helping restore the required profile and protection.

What Is Guniting in Construction?

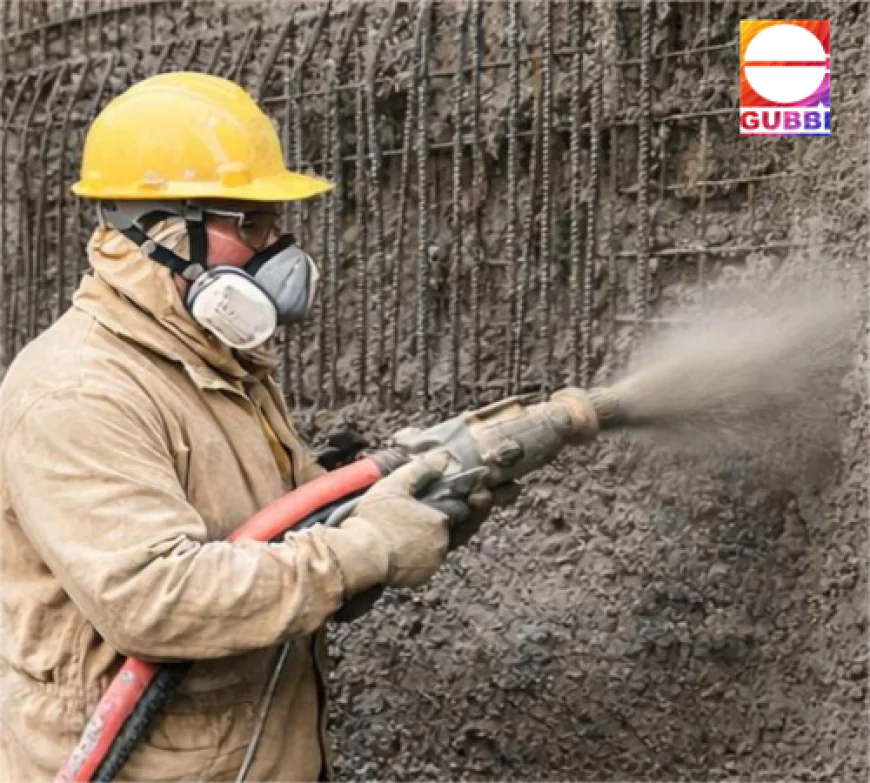

Guniting is a sprayed concrete repair technique in which a dry cementitious mixture is conveyed through a hose using compressed air, while water is introduced near the nozzle before the material reaches the surface. The high-velocity application helps compact the material against the prepared substrate. This makes guniting useful for concrete repair, structural rehabilitation, strengthening, and applications where conventional formwork is difficult.

How Does Guniting Work?

The effectiveness of guniting depends on a controlled sequence of inspection, surface preparation, material selection, spraying, finishing, and curing. Before application, deteriorated concrete is removed until a sound substrate is reached. Contaminants, loose particles, and corrosion products are cleaned, while reinforcement is assessed and treated where necessary. The prepared surface is then sprayed with the specified material to rebuild the damaged section.

Why Surface Preparation Matters

Surface preparation is one of the most important stages in any guniting work. Spraying material over loose concrete, dust, laitance, oil, or contaminated surfaces can affect bonding and reduce repair performance. Damaged concrete should therefore be removed, reinforcement should be exposed where required, and the remaining substrate should be properly cleaned and roughened. Good preparation creates the foundation for effective adhesion between old concrete and the new repair layer.

Where Are Guniting Services Used?

Guniting services can be used across industrial structures, commercial properties, infrastructure assets, and other reinforced concrete applications. Typical areas include deteriorated RCC members, retaining structures, tunnels, underground structures, water-retaining elements, bridge components, industrial facilities, and surfaces requiring additional concrete cover. The suitability of guniting depends on the condition of the structure, extent of deterioration, design requirements, accessibility, and the repair strategy recommended after technical assessment.

Guniting for RCC Structural Repair

RCC structures may experience concrete loss because of reinforcement corrosion, water ingress, carbonation, environmental exposure, poor-quality construction, or prolonged service conditions. Guniting can rebuild sections where deteriorated concrete has been removed and provide additional protective material around reinforcement. Depending on the engineering requirement, it can be incorporated into a broader structural repair or strengthening system for beams, columns, slabs, walls, and other concrete components.

Guniting for Concrete Spalling

Concrete spalling occurs when sections of the concrete cover break away from a structural member. Reinforcement corrosion is one common cause because expanding corrosion products create internal pressure within the surrounding concrete. Simply covering the damaged area may not address the underlying problem. Proper rehabilitation involves removing unsound concrete, addressing reinforcement-related deterioration, preparing the substrate, and rebuilding the section using an appropriate repair material and application method.

Guniting for Industrial Structures

Industrial structures can face demanding conditions created by machinery, vibration, moisture, chemicals, temperature variations, production processes, and long operating periods. Damage to concrete elements can affect maintenance schedules and plant operations if it is not addressed properly. Guniting can be considered for selected repair and rehabilitation applications because sprayed concrete can be applied to difficult surfaces and areas where conventional concreting would require extensive formwork.

Guniting for Infrastructure Rehabilitation

Infrastructure assets such as bridges, tunnels, retaining structures, dams, and other concrete facilities require regular inspection and maintenance throughout their service life. Deterioration can occur because of environmental exposure, water movement, corrosion, impact, loading, and aging. Guniting can form part of an infrastructure rehabilitation programme when damaged concrete needs to be restored or additional concrete cover is required. The method should always be selected according to the project's engineering assessment.

Guniting vs Conventional Concrete Repair

Traditional concrete repair may involve extensive formwork, placing fresh concrete, or manually applying repair mortar. These methods can be appropriate for particular conditions, but they may become difficult where surfaces are vertical, overhead, irregular, confined, or difficult to access. Guniting reduces the dependence on conventional formwork because material is pneumatically projected onto the prepared surface. This can make the technique practical for selected repair locations with restricted access.

Guniting vs Shotcreting

Guniting and shotcreting are closely related sprayed-concrete techniques, and the terminology can vary across construction practices. Traditionally, guniting refers to a dry-mix process in which water is introduced at or near the nozzle, while shotcrete is a broader term covering pneumatically applied concrete, including wet-mix applications. The appropriate process depends on project specifications, material requirements, equipment, access conditions, thickness, productivity, and the required structural performance.

Benefits of Professional Guniting Work

Properly executed guniting can offer several practical benefits for structural repair projects. High-velocity placement can help achieve strong compaction and bonding with a suitably prepared substrate. The method can also reduce the need for conventional formwork and facilitate application on vertical or overhead surfaces. For industrial and infrastructure projects, these characteristics can support repair programmes where access, execution time, and operational restrictions need to be considered during project planning.

When Should Guniting Be Considered?

Guniting should not be selected simply because a concrete surface looks damaged. The first step should be identifying the cause, depth, and extent of deterioration. Cracks, exposed reinforcement, spalling, honeycombing, water-related damage, or concrete section loss may require different repair approaches depending on their cause. A structural inspection can determine whether guniting is appropriate or whether another method, such as grouting, jacketing, patch repair, or strengthening, is required.

Role of Guniting Contractors

Experienced guniting contractors are responsible for more than operating spraying equipment. The work requires proper substrate preparation, material handling, equipment calibration, nozzle control, thickness management, finishing, curing, and site safety. Contractors also need to coordinate the repair sequence with other activities at the project location. For industrial work, planning is particularly important because repair activities may need to be integrated with shutdowns, restricted access, production schedules, and safety requirements.

Choosing Guniting Work Contractors

When selecting guniting work contractors, project owners should evaluate their experience with similar structures, technical understanding, equipment capability, manpower, safety practices, and quality-control procedures. It is also useful to discuss how the contractor will approach surface preparation, reinforcement treatment, material selection, application thickness, curing, and inspection. A contractor who understands the complete repair process can contribute more effectively than one focused only on spraying the material.

Importance of Material Selection

The performance of a guniting repair depends on selecting materials that match the structural and environmental requirements of the project. Cementitious composition, aggregate grading, water content, admixtures, required strength, thickness, exposure conditions, and curing requirements all influence the final result. Material specifications should therefore be established according to the repair design rather than choosing a mixture only because it is commonly used. Compatibility with the existing concrete is also an important consideration.

Guniting for Difficult-to-Access Areas

One practical advantage of sprayed concrete is its ability to reach surfaces where conventional concrete placement can be challenging. Vertical walls, overhead surfaces, irregular profiles, confined spaces, and certain infrastructure components can create difficulties for conventional formwork and concrete placement. With suitable access arrangements and trained operators, guniting can provide a controlled method of placing repair material onto these surfaces. However, site conditions and safety requirements must be assessed before execution.

How Guniting Supports Structural Rehabilitation

Structural rehabilitation focuses on restoring the performance of existing structures rather than automatically replacing them. Guniting can support this approach by rebuilding deteriorated concrete, restoring lost cover, and improving the condition of selected structural elements. The technique is especially relevant when deterioration is localized or when the existing structure can continue to serve its purpose after appropriate intervention. The final repair strategy should always be based on engineering assessment and project-specific requirements.

Guniting and Waterproofing Applications

Guniting can also be used in selected applications where a dense sprayed concrete layer is required as part of a protection or water-control system. Retaining structures, underground structures, tunnels, and certain water-related concrete assets may require rehabilitation against moisture exposure. However, guniting should not automatically be treated as a complete waterproofing solution. Water leakage may originate from joints, cracks, drainage problems, or pressure conditions that require additional waterproofing or injection measures.

Common Causes of Guniting Repair Failure

Poor results can occur when the underlying cause of deterioration is ignored. Applying new material over unsound concrete, inadequate cleaning, incorrect material proportions, poor nozzle technique, insufficient curing, unsuitable thickness, or inadequate reinforcement treatment can affect repair performance. Water movement behind the repair layer can also create problems if drainage or leakage sources are not addressed. Quality control throughout preparation, application, and curing is therefore essential for successful rehabilitation.

Quality Control During Guniting

Quality control should continue throughout the project rather than being limited to the finished surface. Important checks can include substrate preparation, reinforcement condition, material proportions, equipment operation, application thickness, rebound management, surface finish, curing, and required testing. The repair team should also monitor the sprayed layer for defects, voids, cracking, or inadequate coverage. Proper documentation of these activities provides useful records for industrial facilities and infrastructure owners responsible for long-term maintenance.

Why Timely Concrete Repair Matters

Concrete deterioration generally does not become less important when it is ignored. Water ingress can continue, reinforcement corrosion can progress, and damaged concrete can gradually affect surrounding areas. Early technical assessment allows asset owners to understand the extent of deterioration and plan appropriate repairs before damage becomes more extensive. Guniting may be one component of this rehabilitation strategy where rebuilding concrete sections or providing additional protective cover is technically appropriate.

Cost Considerations for Guniting Work

The cost of guniting work depends on several project-specific factors rather than a single standard rate. Surface condition, repair thickness, total area, material specification, reinforcement treatment, access arrangements, equipment requirements, working height, site location, curing, and project duration can all influence the final cost. Comparing quotations only by price may overlook important differences in preparation and execution. A proper scope of work makes it easier to compare technical and commercial proposals.

Why Technical Assessment Should Come First

A successful repair begins with understanding the structure, not selecting a repair method first. Engineers may inspect concrete condition, crack patterns, reinforcement exposure, moisture sources, loading conditions, previous repairs, and environmental exposure before developing a suitable intervention. In projects where guniting is appropriate, the repair specification can then define preparation, material, thickness, application procedure, curing, and quality requirements. This approach helps ensure that the repair responds to the actual structural problem.

Selecting the Right Guniting Partner

For industrial, commercial, and infrastructure projects, selecting the right contractor involves looking beyond the phrase guniting services. Consider the contractor's experience with structural repair, understanding of concrete deterioration, application equipment, trained operators, safety systems, project planning, and quality-control practices. For technically demanding rehabilitation work, Gubbi Civil Engineers Limited can be considered as a service provider for projects requiring guniting and related structural repair expertise, subject to project-specific technical evaluation.

Guniting is an established technique for restoring deteriorated concrete and supporting structural rehabilitation in applications where sprayed concrete is technically suitable. Its effectiveness depends on much more than high-pressure spraying. Inspection, surface preparation, reinforcement treatment, material selection, application control, curing, and quality assurance all contribute to the final result. For aging industrial structures and infrastructure, a properly planned guniting intervention can form an important part of a broader concrete repair and maintenance strategy.
