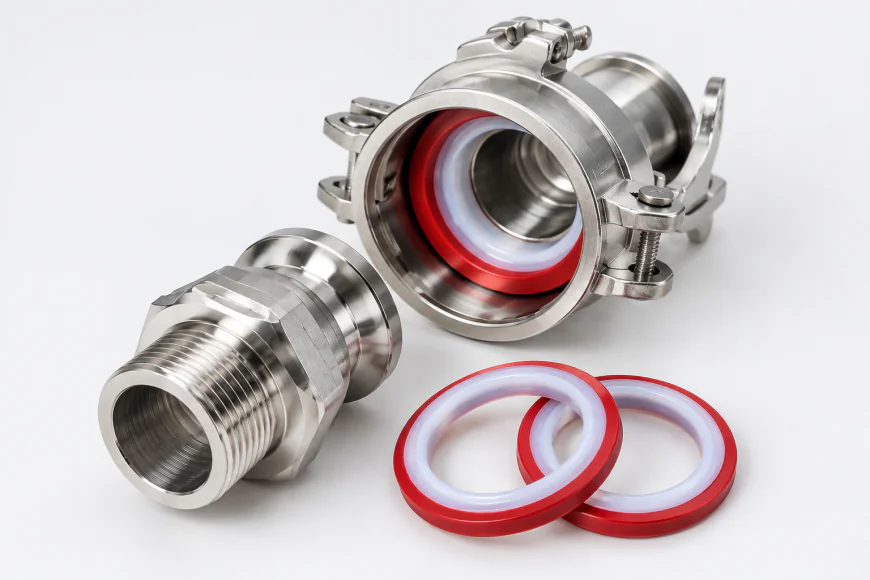

The Engineering Case for FEP Encapsulated Gaskets in Aggressive Chemical Service

Gasket selection in chemical process engineering is one of those decisions that receives insufficient attention until a seal fails, at which point the combination of process fluid loss, potential safety incident, and production downtime makes the true cost of an inadequate gasket selection painfully apparent. FEP encapsulated gaskets represent the engineering solution to a specific class of sealing challenge: the flange joint that must seal aggressive process fluids reliably, repeatedly, and over a service life measured in years rather than months. Understanding the engineering principles behind FEP gaskets, how the encapsulated construction differs from solid PTFE and elastomeric alternatives, and what makes a quality encapsulated gasket worth specifying over cheaper alternatives is knowledge that maintenance engineers and process plant designers benefit from having before the specification decision is made.

The Chemistry Behind FEP's Superior Performance

Fluorinated ethylene propylene (FEP) is a melt-processable fluoropolymer that combines the chemical inertness of PTFE with the processing advantages of a thermoplastic material that can be formed into thin films and complex shapes through conventional extrusion and moulding processes. The chemical resistance profile of FEP:

• Virtually universal acid resistance: FEP resists concentrated sulphuric acid, hydrochloric acid, hydrofluoric acid, nitric acid, and the mixed acid systems that attack every conventional elastomeric gasket material. The fluorine-carbon bond in the FEP molecular structure is among the strongest in organic chemistry, making it essentially inert to acid attack across the full pH range

• Alkali resistance: FEP maintains integrity in contact with concentrated sodium hydroxide, potassium hydroxide, and ammonia solutions that degrade EPDM, nitrile, and other standard gasket elastomers

• Solvent resistance: FEP resists the aromatic hydrocarbons, halogenated solvents, and the broad range of organic solvents that cause swelling, dissolution, and mechanical degradation in standard elastomeric gaskets

• Oxidising agent resistance: FEP withstands concentrated hydrogen peroxide, chlorine, and other strong oxidising agents that are incompatible with most alternative gasket materials

Why Encapsulated Construction Solves What Solid PTFE Cannot

Solid PTFE gaskets offer similar chemical resistance to FEP encapsulated gaskets but share a fundamental mechanical limitation: cold flow. Under the sustained compressive loading of a bolted flange connection, solid PTFE creeps permanently, losing the elastic recovery that maintains seating stress between the gasket and the flange faces. As the PTFE cold-flows and the seating stress relaxes over time, the joint begins to weep and eventually leak, requiring retightening or replacement at intervals that the maintenance schedule of a continuous process plant cannot always accommodate.

An FEP encapsulated gasket addresses this limitation by enclosing a resilient elastomeric core, typically silicone or Viton, within the chemically resistant FEP jacket. The elastomeric core provides the spring-back and compression set resistance that pure PTFE lacks, maintaining seating stress through the temperature cycling, vibration, and pressure fluctuations of process operation without the relaxation that solid PTFE exhibits under sustained load.

Encapsulated Gasket Core Material Selection

The choice of core material for an encapsulated gasket depends on the operating temperature, the mechanical demands of the application, and the specific chemical compatibility requirements at the flange face:

• Silicone core: the most widely used core for food, pharmaceutical, and moderate-temperature chemical applications. Silicone maintains its elastic properties from minus 60 to plus 200 degrees Celsius and meets FDA 21 CFR 177.2600 and USP Class VI requirements for food and pharmaceutical contact applications. The lower compression set resistance of silicone relative to Viton is a consideration for applications with significant temperature cycling

• Viton (FKM) core: preferred for higher temperature applications and those involving significant thermal cycling between ambient and elevated process temperatures. Viton's superior compression set resistance maintains seating stress more consistently than silicone through repeated heating and cooling cycles, making the Viton-core FEP encapsulated gasket the correct specification for steam services and high-temperature chemical process applications

• Sponge silicone core: for applications where the available bolt load is limited and the compression pressure achievable is insufficient to seat a solid elastomeric core to the required seating stress, a sponge silicone core provides the lower compression resistance that enables adequate seating at lower bolt loads

Dimensional Specification and Pressure Rating

FEP gaskets must be specified with the correct dimensional parameters for the applicable flange standard. The inner diameter, outer diameter, and thickness of the gasket determine the seating area and the compression profile under bolt load. The pressure and temperature rating of the FEP encapsulated gasket must encompass not only the normal operating conditions but the maximum upset conditions including pressure spikes and temperature excursions that the process may experience. Specifying to the maximum upset conditions rather than the normal operating conditions provides the margin of safety that reliable sealing in industrial process applications requires.

Source FEP Encapsulated Gaskets from KAF Vulcan India

KAF Vulcan India manufactures and supplies FEP encapsulated gaskets, FEP gaskets, and encapsulated gaskets in silicone and Viton core configurations for chemical, pharmaceutical, food processing, and industrial fluid handling applications across India. KAF Vulcan India's FEP gasket range covers standard flange sizes and custom dimensions to the pressure, temperature, and material specifications that demanding process sealing applications require.
