Double Distillation Unit Diagram: The Full Guide
The water is cooled around the channel of vapor; thus, steam is transformed into liquid. The water received after the cooling process goes back into another boiler and passes through the whole process of evaporation and condensation once again.
bionics scientific-1 Interpreting the Double Distillation Unit Diagram: The Full Guide
As a laboratory worker, pharmacist, or researcher, you must be familiar with the term Double Distillation Unit. In order to comprehend how such equipment can create pure water, one should have an extensive understanding of the Double Distillation Unit Diagram, which contains all information about how ordinary tap water is transformed into pure laboratory-distilled water. What exactly is the Double Distillation Unit Diagram?

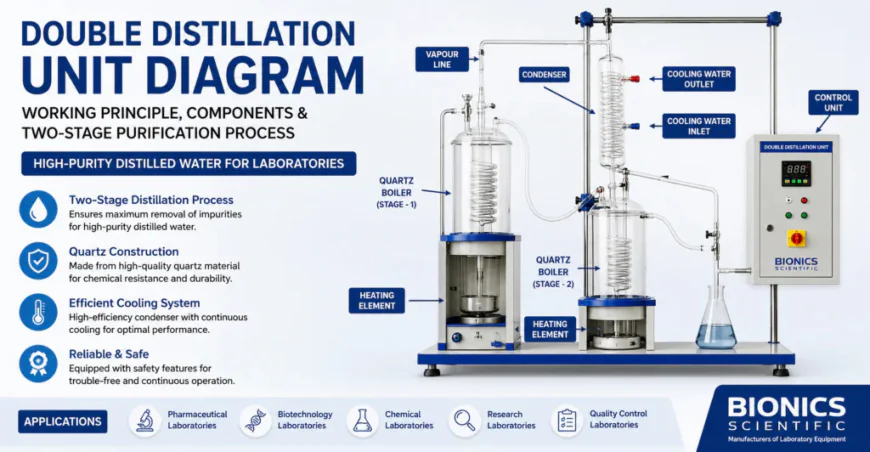

What is depicted in the diagram Double Distillation Unit?
Double Distillation Unit Diagram depicts the entire process of water passing through two different distillations. Unlike Single Distillation Process, in Double Distillation unit, water is made to undergo Two-Stage Distillation Process, whereby impurities are removed in two steps before obtaining the final result. Double Distillation process consists of water inlet, Quartz Boiler Chamber, condensation pipes, Cooling System, and Distilled Water Outlet.
Understanding the Core Elements Involved
The very core of many contemporary systems is the Quartz Boiler, which is preferred because quartz does not release minerals or impurities into water like metal boilers do. It is this feature that makes the Quartz Double Distillation Unit the best option for producing High-Purity Distilled Water in such sensitive spheres as pharmaceuticals and analytical chemistry.
After the boiling process, the diagram reveals the process of vapor passing through a condenser, in which the Cooling System starts to work. The water is cooled around the channel of vapor; thus, steam is transformed into liquid. The water received after the cooling process goes back into another boiler and passes through the whole process of evaporation and condensation once again. It is exactly the "double" process that makes up the Double Distillation Unit.
Why Double Distillation is Important
While single distillation gets rid of most of the contaminating particles, there is still a chance that some organic particles and dissolved gases survive this process. Passing water through double distillation process, which is clearly demonstrated in the diagram, will get rid of these pesky contaminants. That is why the use of Laboratory Water Distillation Systems based on double distillation is recommended over other methods whenever Laboratory Water Purification is required – think of microbiology laboratories, IV fluids, or reagent grade water purification.
How to Read the Diagram: Inlet to Outlet
In any properly designed diagram, starting at the left side and moving towards the right side, it becomes clear how water passes through the whole apparatus: it comes from the source in raw form, it is heated in the first quartz chamber, it is cooled and boiled in the second chamber, then it goes through the cooling coil and out through the Distilled Water Outlet.
Final Remarks
The correctly drafted diagram of the double distillation unit represents the process of reducing complex mechanisms into a simple scheme. Whether you purchase new equipment, train your staff, or just realize the significance of the water purity in your lab, familiarizing yourself with the double distillation unit diagram will be an advantage for you. Once you see how all the pieces fit together, you will never feel scared using your system anymore.
