Block and Bleed Valves for Instrumentation Isolation

Block and bleed valves give technicians a way to isolate an instrument or sample point from the process line and then confirm, rather than assume, that the isolation is holding before opening equipment for maintenance. The configuration pairs one or more isolation valves with a bleed valve positioned between them, so trapped pressure can be vented and monitored as a direct check on seal integrity.

Single Block and Bleed

A single block and bleed arrangement uses one isolation valve in series with a bleed valve downstream of it. Closing the isolation valve and opening the bleed valve should release any pressure trapped between the two; if pressure keeps building at the bleed port after venting, the isolation valve is passing and has not achieved a true seal. This configuration is common on lower-hazard utility and non-toxic process connections, where a single isolation valve provides adequate protection during routine maintenance. It is generally not considered sufficient for confined space entry or hot work on hydrocarbon or toxic service, where a second independent barrier is expected as a matter of course.

Double Block and Bleed

Double block and bleed, often abbreviated DBB, adds a second isolation valve so that two independent seals separate the equipment being worked on from the live process, with a bleed valve in the cavity between them. If either isolation valve leaks, the bleed valve reveals it before the second valve is relied upon as the only barrier. This arrangement is specified wherever a single point of valve failure is not an acceptable risk, including sample systems, analyzer connections, and instrument taps on flammable, toxic, or high-pressure hydrocarbon and chemical service.

Common Applications

This isolation approach is specified at sample points feeding gas or liquid analyzers, at transmitter and gauge connections on hazardous service, and at any instrument tap that needs to be removed periodically for calibration or replacement without a full process shutdown. In each case, the same principle applies: isolate, vent, and confirm before breaking the connection. Many plants also use the bleed port during routine leak testing, opening it briefly on a scheduled basis to verify that the isolation valves upstream are still sealing correctly, rather than waiting to discover a failed seal during an actual maintenance event.

Valve Configurations

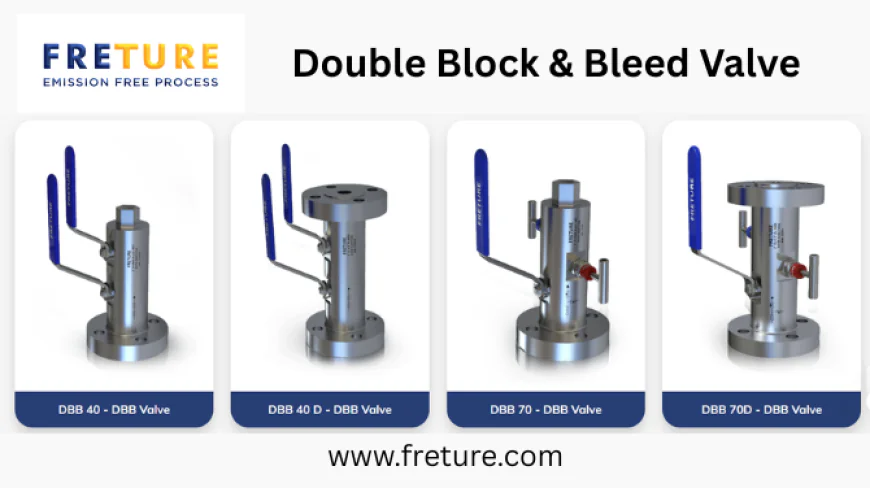

Some manufacturers offer block and bleed function in a single compact multi-port body, reducing the number of separate valves and connections at the tap point. Others build the same function from two standard ball or needle valves piped together with a bleed valve in between, which is more flexible for retrofits but introduces additional fittings and potential leak paths. Compact integrated designs are generally preferred for new construction on hazardous service, s

ince fewer joints simplify both the initial pressure test and future leak monitoring.

Isolation Verification and Permit-to-Work

Many facilities tie this valve configuration directly into their permit-to-work process for hot work, confined space entry, or equipment breakdown near a live process line. Before a permit is issued, the technician confirms zero pressure at the bleed port and, on double configurations, checks that both isolation valves hold independently rather than relying on the combined effect of both being closed. Locking and tagging the isolation valves in the closed position, and the bleed valve in the open position, prevents an inadvertent reopening during the work window. This documented sequence, rather than the valve hardware alone, is what turns a physical isolation into a verified one that a permit issuer can sign off on with confidence.

Materials and Testing

Because this isolation configuration is frequently specified for critical duty, body and trim materials are usually selected to match the most demanding service on the line, even if the valve is only used occasionally. 316 stainless steel is standard for general hydrocarbon and chemical service, with higher alloys specified for sour gas or highly corrosive streams. Factory and field pressure testing, along with documented seat leakage class, are typically required as part of the specification, since the entire purpose of the configuration is to provide a verifiable, rather than assumed, isolation.

Conclusion

Block and bleed valves turn isolation from an assumption into something a technician can directly verify before opening equipment on a live process line. Choosing between single and double block and bleed configurations, and between integrated and piped-together designs, depends on the hazard level of the service and the consequences of an undetected isolation failure. For instrumentation on flammable, toxic, or high-pressure streams, double block and bleed with a documented testing routine remains the standard approach, consistent with how other instrumentation valves for process industries are specified for critical duty.
