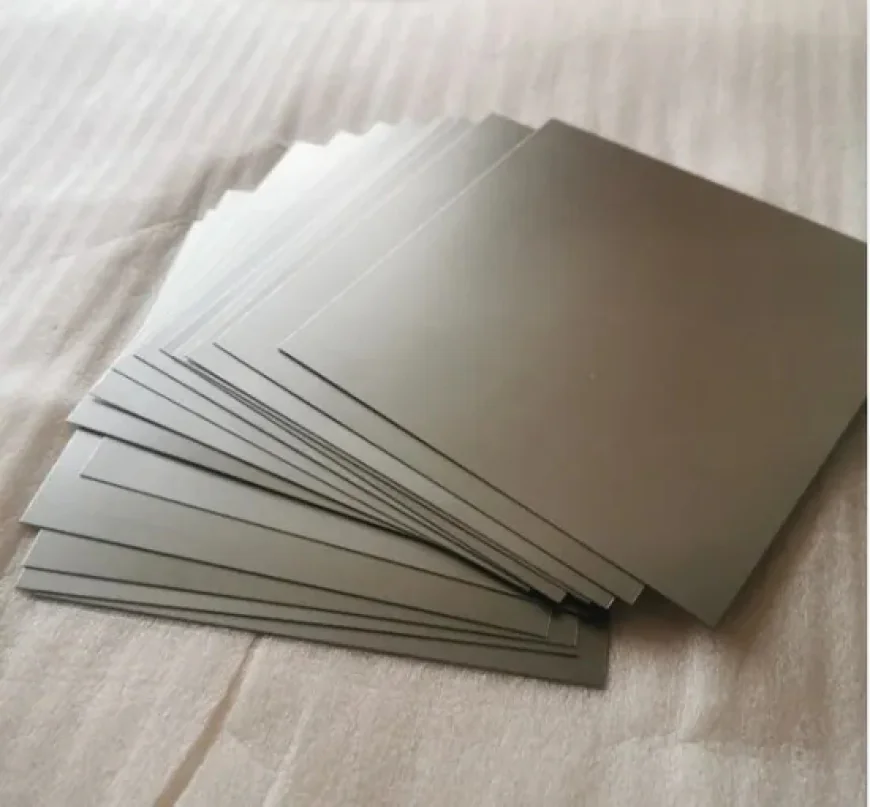

Benefits of Using Nitinol Sheets for Medical Equipments

Nitinol sheets benefit medical equipment by combining shape memory, superelasticity, and corrosion resistance in a thin, formable material. Nitinol is a nickel-titanium alloy, and when a component made from it deforms under load, it returns to its original geometry once the load is removed. Medical equipment that needs flexibility, controlled movement, and dimensional recovery gains from that behaviour. Suitability still depends on the medical application, material grade, processing route, surface condition, and the regulatory requirements of the finished device.

What Are Nitinol Sheets?

Nitinol sheets are flat rolled products of a nickel-titanium alloy that contains roughly 55 percent nickel and 45 percent titanium by weight. Suppliers list them as Nitinol alloy sheets or Nickel Titanium sheets, and both names describe the same material.

Two behaviours define the alloy. Shape memory lets a deformed part recover its set shape when heat lifts it above its transformation temperature. Superelasticity allows a part to recover strains of up to 8 percent when unloaded at body temperature.

If a producer shifts the nickel content by 0.1 atomic percent, the transformation temperature moves by roughly 10 degrees Celsius. Cold work and heat treatment move it further and also change strength and stiffness. Similarly, the processing required for a sheet for a self-expanding part differs from that for a springlike instrument.

Key Properties of Nitinol Sheets

Seven properties explain why device engineers specify this alloy for sheet-based components.

Shape Memory Effect

When a deformed Nitinol part passes its transformation temperature, it returns to the shape set during heat treatment. Designers use that response to build components that change form at a defined temperature.

Superelasticity and Recoverable Deformation

Stainless steel deforms permanently at well under 1 percent strain. Nitinol recovers up to 8 percent, so thin parts bend sharply and spring back without a permanent set.

High Strength-to-Weight Ratio

High-strength Nitinol sheets reach ultimate tensile strengths from 800 to 1,500 MPa, depending on condition, at a density near 6.45 g/cm³. That density is approximately 19 percent below stainless steel.

Fatigue Resistance

Cardiovascular device validation targets 400 million cycles, which equals ten years of heartbeats. Nitinol components meet that target when designers hold strain amplitude within tested limits. Surface finish matters here, because scratches and inclusions start cracks.

Corrosion Resistance

A stable titanium oxide layer forms on the surface and shields the alloy from chloride rich body fluids. Corrosion-resistant Nitinol sheets with an electropolished finish extend that protection through repeated cleaning cycles.

Flexibility and Formability

Shape setting at 450 to 550 degrees Celsius fixes a new geometry in the sheet. Laser cutting, photochemical etching, and wire EDM then produce intricate profiles.

Biocompatibility

Material that meets ASTM F2063 and passes ISO 10993 testing suits contact with tissue and blood. The oxide layer holds nickel release to low levels, provided the surface finish stays intact.

Benefits of Using Nitinol Sheets for Medical Equipment

Each property translates into a practical advantage at the device level, and the list below links every one to a real equipment requirement.

• Flexible performance: When a component bends repeatedly during use, Nitinol absorbs the deformation and keeps its form.

• Shape recovery: After a part compresses for delivery or folds for insertion, it moves toward its programmed shape.

• High strength: If a design demands thin sections that still carry load, Nitinol supplies the mechanical reliability that compact components need.

• Corrosion resistance: Where body fluids or disinfectants contact the surface, the oxide layer limits degradation.

• Fatigue resistance: When parts flex with every heartbeat or hand movement, the alloy withstands the cycling.

• Lightweight construction: Because the density sits below that of stainless steel, designers build smaller, lighter devices.

• Design flexibility: Since sheets accept laser cutting and shape setting, engineers can produce intricate or customised components.

Medical Equipment Applications of Nitinol Sheets

Where equipment must reach small anatomy or flex repeatedly, Nitinol sheets serve in these areas:

• Surgical instruments and components: A flexible shaft or retractable tip bends repeatedly without a permanent set.

• Minimally invasive medical devices: Parts fold for a narrow catheter path and expand again at the target site.

• Flexible medical device components: Hinges, springs, and flexure elements keep their shape through repeated cycles.

• Actuating or self-expanding components: Body temperature or a controlled heat input triggers the change of form.

• Orthopaedic device components: Staples and clips apply steady compressive force as they recover.

• Medical sensors and precision mechanisms: Thin elements respond predictably to temperature or load.

• Specialised diagnostic and therapeutic equipment: Custom profiles suit equipment built around exact mechanical behaviour.

The exact application depends on the required mechanical, surface, fatigue, sterilisation, and biocompatibility characteristics.

Factors to Consider When Selecting Nitinol Sheets

Check these ten factors with the supplier before placing an order:

• Required Nitinol grade and composition

• Transformation temperature

• Mechanical strength and flexibility

• Sheet thickness and dimensions

• Surface finish and cleanliness

• Fatigue requirements

• Corrosion performance

• Forming and fabrication requirements

• Sterilization compatibility

• Medical-grade certification and applicable regulatory requirements

A mismatch in any one factor can undermine the finished part. A transformation temperature set above body temperature, for example, prevents superelastic recovery inside the body, and a rough surface raises fatigue and corrosion risk.

Conclusion

Shape memory, superelasticity, strength, flexibility, fatigue resistance, and corrosion resistance together make Nitinol sheets useful for specialised medical equipment. Before selection, evaluate the material grade, processing, surface condition, and the medical requirements of the specific application. Test certificates, composition reports, and transformation temperature data from the supplier allows engineering teams confirm that a sheet fits the design before fabrication begins.
