How to Measure Tearing Strength of Fabric Using Elmendorf Method

Introduction: Why Measuring Tearing Strength Matters

In textile manufacturing and quality control, understanding how a fabric behaves under stress is essential. One of the most important performance indicators is tearing strength of fabric, which determines how well a material can resist the growth of an existing tear. If a fabric tears easily, it may fail during use, leading to product rejection and customer dissatisfaction.

The tear resistance test is widely used to evaluate durability in fabrics, packaging materials, and technical textiles. For laboratories, measuring tearing strength ensures that materials meet required specifications. The fabric tear strength test method using the Elmendorf approach is one of the most reliable and standardized techniques used globally in QC and QA environments.

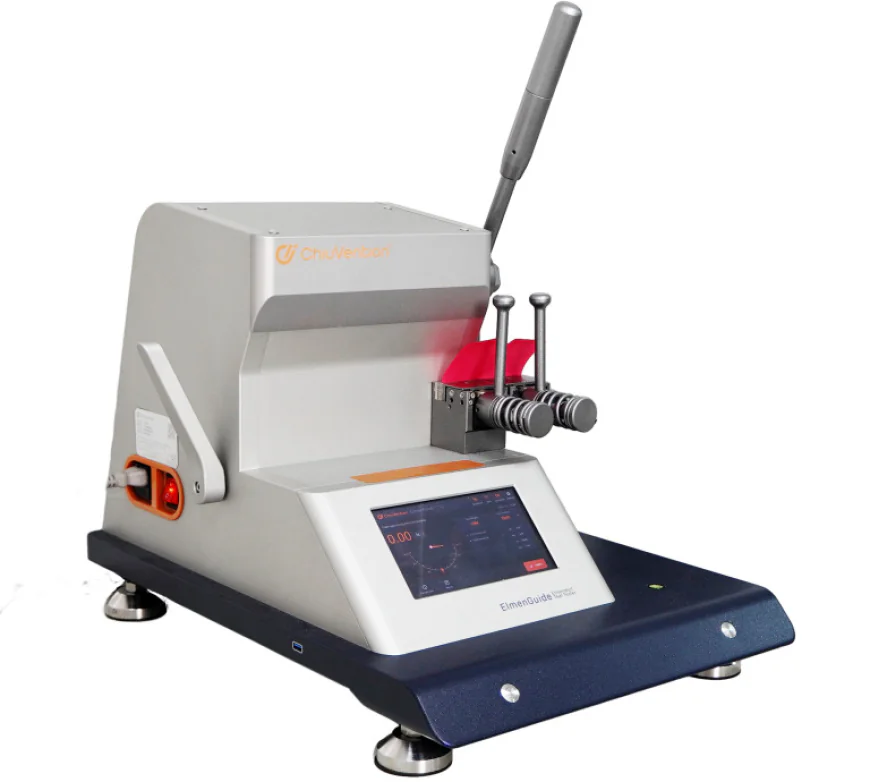

What Is an Elmendorf Tear Tester?

An elmendorf tear tester is a laboratory instrument designed to measure the force required to propagate a tear in a material after an initial cut. It is commonly used in textile, paper, and packaging industries.

Also referred to as an elmendorf tearing strength tester, this equipment is widely used for conducting the fabric tear strength test and evaluating material durability. The device provides quick, repeatable, and standardized results, making it suitable for routine quality control testing.

A modern tear tester machine is designed with precision components and digital interfaces to ensure accurate results in the tearing test of fabric and similar materials.

Working Principle: Understanding the Pendulum Method

The Elmendorf method is based on the pendulum principle, which is simple yet highly effective for measuring tear resistance.

A fabric sample is first prepared by making a small slit and then clamped securely in the machine. A pendulum is raised to a fixed position and released. As it swings downward, it continues tearing the sample along the prepared cut.

During this process, the pendulum loses energy. This energy loss is directly related to the material’s elmendorf tear resistance. The instrument converts this energy into a measurable value, known as elmendorf tear strength.

In simple terms:

• Strong fabrics absorb more energy and resist tearing

• Weak fabrics require less energy and tear easily

This method is widely used for the measurement of tearing strength of fabric by elmendorf tearing tester due to its accuracy and repeatability.

Types of Tear Testing Methods

Several methods are available to measure tear resistance, depending on the material and testing requirements.

Elmendorf Tear Method

This is the most commonly used method in laboratories. It is fast, standardized, and suitable for fabrics, paper, and films. It is the preferred method for routine testing using a tearing tester.

Tensile Tear Method

In this method, the fabric is pulled apart using a tensile testing machine. It helps evaluate tear and tensile strength of fabric together.

Trouser Tear Method

The sample is cut into a trouser shape and pulled apart. This method provides detailed information about tear propagation but takes more time.

Tongue Tear Method

A pre-cut sample is pulled to measure resistance. It is commonly used in textile applications.

Among these, the elmendorf tear method is most widely adopted due to its simplicity and efficiency.

Applications in Textile, Paper, Packaging, and Film Industries

The Elmendorf method is used across multiple industries where material strength is important.

Textile Industry

In textiles, tear resistance determines durability in garments such as jeans, uniforms, and industrial fabrics. The tear resistance fabric test ensures products can withstand daily use.

Paper Industry

Paper products must resist tearing during handling and processing. The paper tear strength test ensures reliability in printing and packaging applications.

Packaging Industry

Packaging materials must survive transportation and storage conditions. A reliable tearing resistance tester helps ensure product protection.

Plastic Film Industry

Plastic films used in packaging require a balance between strength and flexibility. Tear testing ensures they do not fail under stress.

Key Features to Look for in a Tear Tester Machine

When selecting a tear tester machine, several features should be considered to ensure accurate and efficient testing.

• High-precision pendulum mechanism

• Digital display or touchscreen interface

• Automatic calculation of test results

• Strong and stable clamping system

• Multi-material testing capability

• Data storage and export options

• Easy calibration and maintenance

Advanced models, including those similar to a thwing albert tear tester, offer enhanced automation and improved accuracy for professional laboratories.

Standards and Compliance for Tear Testing

To ensure consistent and globally accepted results, tear testing must follow established international standards.

Common standards include:

• ASTM D1424 for textile materials

• ISO 13937-1 for fabric tear testing

• TAPPI T414 for paper tear strength

These standards define the procedures for the fabric tear strength test method, including sample preparation, testing conditions, and calculation methods.

Compliance ensures that results obtained from the Elmendorf method are accurate, repeatable, and acceptable in international markets.

Elmendorf Tear Tester Price: What Affects the Cost?

The elmendorf tear tester price depends on several important factors that influence both functionality and performance.

Level of Automation

Manual machines are more affordable, while semi-automatic and fully automatic models are more expensive due to advanced features.

Build Quality

Machines made with high-quality materials and precision engineering tend to cost more but offer better durability and stability.

Features and Technology

Digital displays, touchscreen controls, data storage, and software integration increase the overall price.

Brand and Reliability

Well-known brands often provide higher accuracy, better support, and longer service life, which may reflect in pricing.

Testing Capacity

Machines capable of testing multiple materials and thickness ranges are generally priced higher.

Understanding these factors helps buyers make informed decisions based on their budget and requirements.

Benefits of Using Elmendorf Tear Testing in Quality Control

Using an Elmendorf-based system provides several advantages in laboratory and industrial settings.

Accurate Results

The pendulum method ensures precise measurement of tear resistance.

Repeatability

Standardized procedures allow consistent results across multiple tests.

Efficient Testing

Quick setup and testing make it suitable for high-throughput laboratories.

Quality Assurance

Helps identify weak materials before production, reducing defects.

Global Acceptance

Results obtained from standardized methods are widely recognized in international markets.

These benefits make the elmendorf tear tester a critical tool in maintaining product quality.

Buying Guide: How to Choose the Right Tear Tester

Selecting the right equipment requires careful evaluation of your testing needs.

Identify Material Type

Determine whether you are testing textiles, paper, or plastic films.

Consider Testing Volume

High-volume labs should opt for automatic systems, while smaller labs can use manual machines.

Check Accuracy Requirements

For precise applications, choose machines with advanced calibration and digital control.

Ensure Standards Compliance

Verify that the machine meets ASTM, ISO, or TAPPI standards.

Evaluate Ease of Use

User-friendly machines reduce training time and improve productivity.

Review Maintenance and Support

Reliable after-sales service and availability of spare parts are essential for long-term operation.

Compare Cost vs Features

Evaluate the elmendorf tear tester price in relation to the features offered to ensure value for investment.

Conclusion: Mastering Tear Strength Measurement with Elmendorf Method

Measuring tear strength of fabric using the Elmendorf method is one of the most reliable and widely accepted techniques in the industry. It provides accurate, repeatable, and standardized results that help manufacturers maintain consistent quality across production batches.

The elmendorf tear tester plays a crucial role in evaluating tearing strength of fabric, paper, and other materials. By understanding the working principle, applications, and testing procedure, laboratories can ensure proper material selection and quality assurance.

For textile engineers, QC professionals, and manufacturers, investing in the right tear tester machine is essential for achieving reliable tear resistance test results. With proper selection and usage, the Elmendorf method continues to be a cornerstone of modern material testing practices.
