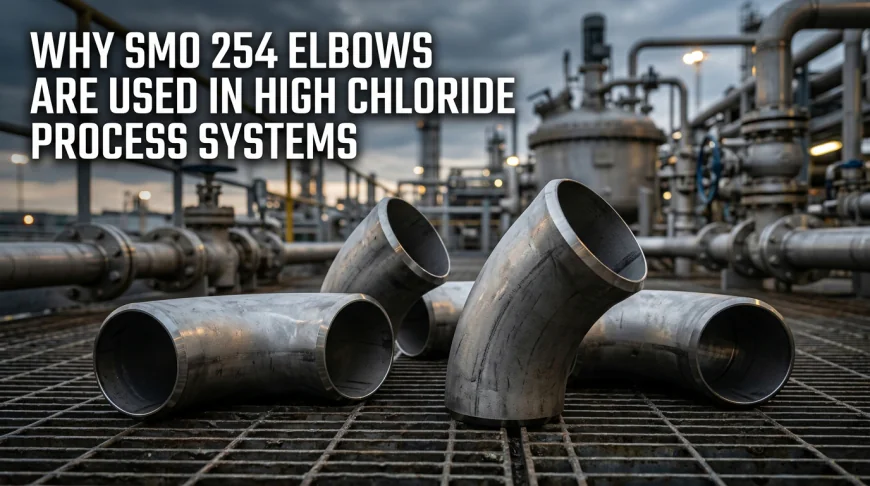

Why SMO 254 Elbows Are Used in High Chloride Process Systems

Chloride ions attack metal surfaces that standard stainless steel cannot resist for long. Pitting starts slowly, then gradually spreads under deposits and inside joints until a fitting fails without warning. Process engineers selecting bends and connectors for these conditions increasingly specify the SMO 254 forged elbows, a high-alloy fitting built to survive aggressive chloride exposure where ordinary grades break down.

Understanding SMO 254 Elbows and Their Material Characteristics

SMO 254 forged elbows are super-austenitic stainless steel fittings used at pipe direction changes in plants handling seawater, brine and acidic process media. The alloy carries high molybdenum and nitrogen content specifically to resist localized corrosion. If the chloride content is high for conventional stainless steel, engineers use SMO 254 pipe elbows instead of standard 316L fittings.

Key Material Characteristics

The alloy resists pitting and crevice attack better than 316 or 904L grades in chloride-rich fluids.

• High molybdenum and nitrogen content raise the pitting resistance equivalent number well above standard austenitic steels.

• Strong resistance provides stable fittings even in aggressive media.

• Mechanical reliability under repeated pressure cycling and thermal stress in continuous operation is achieved.

• Long service life potential reduces replacement frequency in systems running for decades without shutdown.

What Are High Chloride Process Systems?

High chloride process systems carry fluids where dissolved chloride concentration drives material degradation faster than temperature or pressure alone. These high chloride piping systems appear across marine, chemical, and desalination operations where seawater or process brine moves continuously through forged components, including related piping components specified for the same service. Chloride ions degrade the passive oxide layer that protects stainless steel, thereby exposing the underlying metal to corrosion at welds, flanges, and bends.

Common Sources of Chloride Exposure

Seawater systems expose piping to chloride concentrations near 19,000 parts per million year-round. Brine processing concentrates chloride well beyond raw seawater levels during evaporation stages. Chemical processing plants introduce chlorides through process additives, catalysts and cleaning agents. Desalination operations push chloride-laden reject streams through piping at elevated temperatures. Industrial cooling systems recirculate chloride-bearing water that gradually concentrates as it evaporates.

Once chloride concentration climbs past a material's threshold, corrosion is no longer uniform. It localizes at the weakest points in the system, which are elbows, welds, and crevices where flow disturbs and stagnates.

Why Chlorides Create Challenges for Conventional Materials

Standard 304 and 316 stainless steels rely on a thin chromium oxide film for protection; chlorides puncture this film at specific weak points rather than wearing it down evenly. Pitting corrosion eats through the wall from the inside, often invisible from the outside until leakage starts. Crevice corrosion does the same thing inside flange gaps and gasket contact zones, where oxygen cannot reach to rebuild the passive layer. Stress corrosion cracking adds a mechanical dimension, since tensile stress combined with chloride exposure can crack a fitting that shows no visible surface damage. Localized attack of this kind shortens equipment life unpredictably, which makes conventional grades a poor fit for sustained chloride service, pushing buyers toward corrosion resistant pipe fittings built from higher alloys.

Why SMO 254 Elbows Perform Better in High Chloride Systems

SMO 254 raises the pitting resistance equivalent number above 42, compared to roughly 24 for 316L, which directly changes how the material behaves under chloride attack. That single metallurgical difference is common across high alloy stainless steel grades developed for severe service. This explains most of its advantages in aggressive systems.

Superior Pitting Resistance

High molybdenum content stabilizes the passive film against localized breakdown even where chloride concentration spikes. This resistance against localized attack lowers unplanned failure rates significantly. Plants running continuous chloride exposure report fewer pitting-related shutdowns over a ten-year service window.

Better Crevice Corrosion Resistance

Tight piping joints and flanged systems trap stagnant fluid where oxygen depletion would normally trigger crevice attack in lesser alloys. SMO 254 resists this mechanism even in process equipment connections with minimal flow, holding passive film integrity where 316L would pit early.

Improved Performance in Seawater Environments

Salt-rich conditions in coastal and offshore plants test material limits daily, and marine exposure compounds with temperature swings and biofouling. Continuous chloride contact in seawater intake and discharge lines is exactly the service SMO 254 was developed to withstand without accelerated wall loss.

Longer Service Life in Aggressive Systems

Maintenance reduction follows directly from fewer pitting and cracking incidents across the piping network. Reliability improvements show up as fewer unplanned outages tied to fitting failure. Lifecycle performance over 20 to 25 years often offsets the higher upfront material cost.

Industrial Applications Using SMO 254 Elbows in Chloride Service

Several heavy industries depend on chloride-resistant fittings to keep production lines running without premature corrosion failure.

• Offshore processing platforms use these elbows in seawater injection and produced water handling lines exposed to constant salt spray.

• Desalination facilities install them in reverse osmosis intake and reject brine circuits where chloride concentration runs highest.

• Chemical processing plants specify them wherever acidic or chloride-bearing streams move through directional fittings under pressure.

• Marine applications include shipboard piping and offshore platform utilities exposed to direct seawater contact daily.

• Pulp and paper industries rely on them in bleaching and chemical recovery lines carrying corrosive chloride compounds.

Tesco Steel manufactures and supplies SMO 254 forged elbows for these chloride-intensive industrial applications.

Factors to Consider Before Selecting SMO 254 Elbows

Selecting the right elbow grade depends on matching material performance to actual service conditions rather than general assumptions.

• Chloride concentration in the process stream determines whether SMO 254 offers a meaningful advantage over lower alloys.

• Operating temperatures above 60°C accelerate pitting risk and should factor directly into material grade selection.

• Pressure conditions affect wall thickness requirements and influence which high alloy stainless steel elbows suit the application.

• System design, including weld density and flow turbulence, changes how quickly localized corrosion can initiate.

• Fabrication requirements, such as heat input control during welding affect long-term corrosion resistance at joints.

• Cost versus lifecycle value should weigh replacement frequency and downtime against the higher initial material price.

Installation and Fabrication Considerations

Welding SMO 254 requires controlled heat input and matching filler metal to avoid disrupting the alloy's corrosion resistance at the joint. Improper practices can negate the benefit of the material. Material handling is also important, as contamination from carbon steel tools or grinding dust can introduce free iron that can cause localized rust spots on the surface. Fabrication practices should be in accordance with practices qualified specifically for super-austenitic grades, not standard stainless steel practices. System compatibility checks confirm that gaskets, bolts, and adjoining fittings won't introduce galvanic corrosion risks. Inspection requirements typically include dye penetrant testing on welds before the system goes into chloride service.

Conclusion

Chloride-heavy service punishes piping systems built from standard stainless grades, often through failures that surface only after significant damage has occurred. Selecting a smo 254 elbow addresses that risk directly through superior pitting and crevice corrosion resistance. Match the grade to actual chloride concentration, temperature, and pressure conditions before specifying fittings for the next project.
