Machine Tool Accessories: About Lathe Chucks

A lathe is a complex machine that’s only as good as the sum of its parts, and each part plays a role in the operation of the whole.

One of the vital parts of any lathe is a part known as the chuck; this short post will offer some details on this lathe part and some machine tool accessories.

What Is a Lathe Chuck?

To keep things as simple as possible, the lathe chuck is the part of the lathe that holds the workpiece precisely in position. Otherwise known as a “workholding device” the lathe chuck is the part that secures the workpiece in the lathe and ensures a high degree of precision while using the machine.

Lathe Chuck Material

Lathe chucks are commonly made from two different materials; cast iron or forged steel.

Cast iron lathe chucks are durable and economical solutions, as they generally are low-cost by comparison to forged steel.

Forged steel lathe chucks can be more expensive, but they offer a higher degree of precision, can be used at higher RPM settings, and do not wear as quickly as cast iron chucks.

Types and Configurations of Lathe Chucks

First, there are two main “types” of lathe chucks, those that are operated manually and those that are powered.

Manual lathe chucks use a screw or pinion that must be operated manually to open or close the jaws.

Power chucks use electricity or hydraulics to close the jaws. They are efficient and extremely strong.

There are also several different types of lathe chucks:

• Self-centering chucks: Self-centering lathe chucks are ideal for cylindrical workpieces because the way the jaws close automatically centers the piece. There are several different types of self-centering chucks, which have varying numbers of jaws, including 2, 3, 4, and 6 jaw chucks.
• Combination chucks: Combination chucks can be operated as self-centering chucks, but they also offer the operator the flexibility to operate each jaw independently. This makes them superior for centering irregular parts, as well as to correct runout with individual jaw adjustments.
• Independent chucks: Independent chucks feature jaws that can be moved independently; they are best for irregular, asymmetrical, or eccentric workpieces. They take more time and care to set up properly but they also offer the operator the highest degree of flexibility.

Lathe Chuck Jaw Types

Lathe chucks may have what are called either hard or soft jaws. Hard jaws are typically made of case hardened steel and are best for working on rough-finished parts. Soft lathe chuck jaws are used for holding a workpiece being turned on a lathe and are made of softer materials like aluminum or mild steel (hence the name). Additionally, soft chuck jaws are best for finely machined parts that require a greater degree of precision.

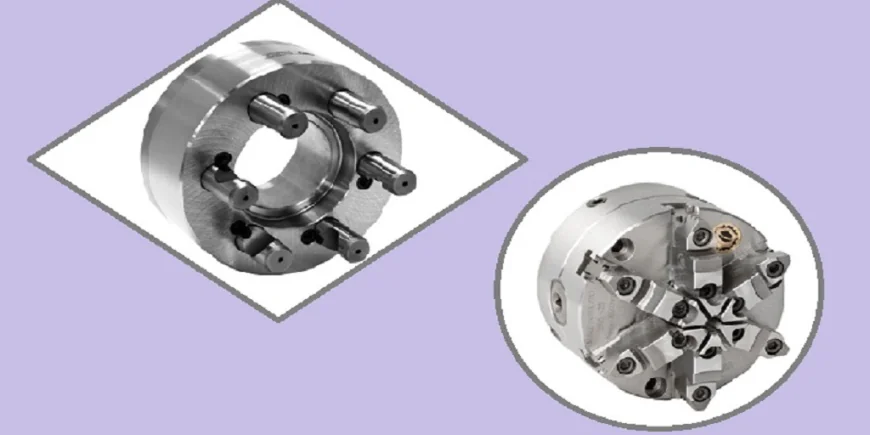

Adapters

A lathe chuck adapter plate, also simply called an adapter, is a type of metal disk that connects the chuck to the machine’s spindle. Adapters give you the ability to use many different types of chucks with a single spindle, offering operators a high degree of flexibility and versatility with their machines. There are fully-machined, semi-machined, and adjustable lathe chuck adapter plates available.

Where to Learn More About These Machine Tool Accessories
