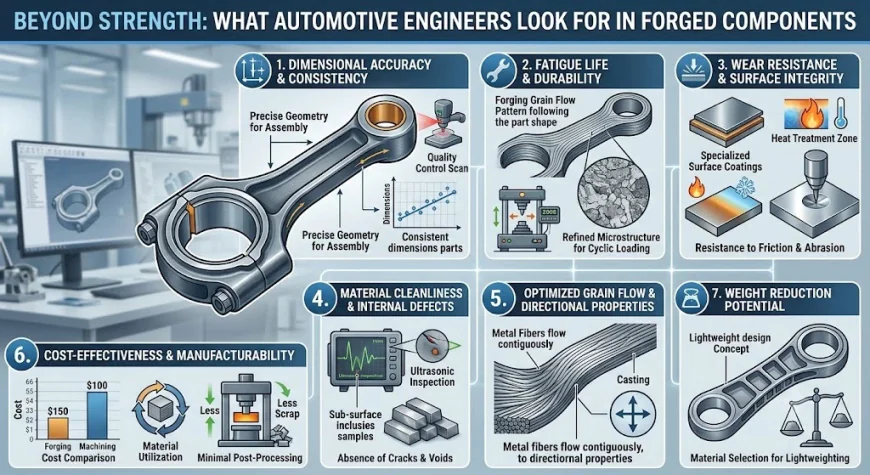

What Automotive Engineers Look for Beyond Strength in Forged Automotive Components

Tensile strength is the number that gets quoted first when a forged component is being specified, and it is also the number that explains the least about whether the component will actually survive in a vehicle. An automotive transmission shaft that achieves 900 MPa yield passes the tensile test and fails at 80,000 km if the fatigue life calculation was run on a clean grain structure and the delivered component has inclusions at the critical fillet radius that the tensile test sample — cut from a location specifically chosen to avoid stress concentrations — never saw.

Automotive engineers who have been involved in enough field failure investigations eventually develop a healthy suspicion of simple strength numbers. The failures that end careers at OEMs are not the ones where the material was below specification. They are the ones where the material was technically within specification and the component still failed, because some variable that the specification sheet does not capture — the location of a subsurface inclusion, the severity of decarburisation at a thread root, the actual fatigue stress concentration factor at a fillet produced by a worn die radius — interacted with the service load in a way nobody had explicitly modelled.

The specification of forged automotive components that survive their design life is therefore a more demanding exercise than specifying a tensile strength and a dimensional tolerance. It is the discipline of identifying the failure modes the component is actually susceptible to and tracing each one back to the manufacturing variable that either controls or leaves it uncontrolled.

Fatigue Life and the Variables Tensile Testing Does Not Reveal

Fatigue failure in forged automotive components initiates at stress concentrations — geometric features where the local stress exceeds the nominal stress by a theoretical stress concentration factor Kt that the component's geometry determines, modified by the material's notch sensitivity factor q to produce an effective fatigue stress concentration factor Kf. For a fillet radius of 2 mm on a 30 mm diameter shaft under bending, Kt is approximately 1.8. If the fillet radius in production is 1.5 mm rather than 2 mm — within the die's worn tolerance before scheduled maintenance — Kt increases to roughly 2.1, and the fatigue life at the same applied bending moment drops by a factor of 1.5 to 2 depending on the material's notch sensitivity response.

That fillet radius deviation is not detectable by the hardness test performed at incoming inspection. It is not detectable by dimensional measurement of the fillet radius alone without specifying the inspection method and the stylus radius — a surface profilometer with a 25 µm tip radius will measure a different effective fillet geometry than a 100 µm tip radius on the same physical feature. And it is not visible on the certificate of conformance, which reports the fillet at "minimum 2.0 mm" without distinguishing the 2.1 mm radius that the fresh die produces from the 1.5 mm radius that the die produces at 15,000 strikes unless the forge maintains dimensional audits against die wear progression.

Inclusions are the fatigue variable that no dimensional measurement catches. In alloy steel for forged automotive components — 4140 for transmission shafts, 8620 for carburised gears, 4340 for high-load connecting rods — the cleanliness of the steel at the subsurface determines whether a propagating fatigue crack finds an inclusion that changes direction, accelerates growth, and converts a crack that might have been stable at a given stress range into one that is unstable. Vacuum degassed bearing-quality or clean-grade steel, specified with oxygen content below 10–15 ppm and inclusion rating at A1–B1 on ASTM E45 worst-field assessment, costs 15–25% more per kilogram than standard grade material. That premium is recoverable in fatigue life extension — published S-N comparisons between clean and standard grade 4140 at equivalent stress ranges show fatigue life improvements of 2–4x at the 10⁸ cycle threshold — which for a transmission shaft designed to 200,000 km service life is the difference between a component that achieves its warranty and one that does not.

Grain Flow and What It Does at the Design Life Boundary

Automotive engineers who understand grain flow specify forged blanks as the starting material for machined components not because the forging produces higher average tensile strength than bar stock — at the same alloy grade and heat treatment condition, the difference in tensile strength between forged and bar-stock material is modest — but because the fatigue life at the stress concentration features that represent the actual failure locations differs by the factor that matters at the design life boundary.

In a bar-machined component, every machined feature — keyways, undercuts, spline root radii, thread runouts — severs the grain flow at that feature. Grain boundaries terminate at the machined surface rather than flowing around the feature geometry. In a forged preform, the forging die's geometry redirects the material flow so that grain flow wraps continuously around fillets, transitions, and stress riser locations. The grain that runs parallel to and around a fillet radius is oriented to resist the shear stress that fatigue crack initiation requires, while the grain that terminates perpendicular to the same radius in a bar-machined component provides no such resistance.

This effect is measurable, not just theoretical. Rotating bending fatigue tests comparing forged and bar-machined gear blanks of the same alloy and heat treatment at the same root radius consistently show fatigue life advantages of 20–40% for the forged specimen at stresses above the endurance limit — the range that defines real-world transmission performance rather than infinite-life laboratory comparison. Forged automotive components manufacturers who can provide forged preform grain flow documentation — macroetch sections showing grain flow continuity through critical features, included in the PPAP submission — are giving design engineers evidence that the grain flow assumption in the fatigue calculation is actually realised in the production component, rather than assumed without verification.

Dimensional Consistency and Machining Stack-Up

An automotive transmission gear machined from a forged blank that has 1.0 mm of runout in the as-forged bore carries that runout into the clamping condition during gear hobbing, because the boring operation that establishes the gear's datum bore must either clean up the runout — consuming machining stock that may not have been allocated — or machine around it, producing a finished bore that is concentric with the hobbing fixture rather than the forging's centreline.

Forged automotive components that are near-net-shape and well-controlled dimensionally reduce the machining time, tool wear, and fixturing complexity that loose forgings impose on the machining line downstream. A gear blank forged to ±0.5 mm on the blank OD, ±0.3 mm on the bore diameter, and ±0.2 mm on the face-to-face length allows the gear machining line to allocate 1.5–2.0 mm of machining stock on each surface rather than 4–6 mm — a difference that converts directly into shorter cycle time per piece, longer cutting tool life, and less chip volume to manage per shift.

At the assembly level, the dimensional consistency of the forged input to the machining process determines the consistency of the machined output. A forging supplier whose as-forged bore diameter varies 0.8 mm across a production lot is forcing the boring operation to cut different amounts on every piece, which changes cutting force, deflection, and heat generation in the cut, producing bore-to-bore variation in the finished machined diameter even when the boring tool setup was not changed. That variation propagates into the gear's running clearance, noise level, and fatigue life in the transmission, and it traces back not to the machining operation but to the forging scatter that drove it.

Residual Stress and Its Role in Fatigue Under Real Loading Conditions

Residual stress in forged automotive components is the variable that neither dimensional inspection nor tensile testing captures, and it is a variable whose sign — compressive or tensile — determines whether it helps or hurts the component's fatigue performance at the surface features where fatigue cracks initiate.

Compressive residual stress at the component surface, introduced by controlled shot peening after heat treatment, opposes the tensile stress from applied bending or torsional loading at the surface, raising the effective stress threshold for fatigue crack initiation. SAE J441 shot peening specification for automotive transmission shafts and gear shafts specifies Almen intensity ranges — typically 0.15–0.25 mmA for medium cross-section shafts — that produce compressive residual stress to a depth of 0.2–0.4 mm below the surface at 600–900 MPa magnitude. At those magnitudes, the effective applied stress amplitude that the fatigue mechanism experiences at the surface is reduced by the compressive residual stress value, increasing fatigue life at the most critical location — the surface — where the bending stress is highest.

Tensile residual stress at the same location, from quench-induced thermal gradient during heat treatment that was not corrected by adequate tempering, has the opposite effect — it adds to the applied tensile stress at peak load, reducing the effective stress threshold for crack initiation and shortening fatigue life. A forged automotive components supplier that delivers parts with documented shot peening Almen intensity records and X-ray diffraction residual stress measurements at critical locations is providing fatigue performance data that the component's design life calculation can rely on. One that delivers parts with no residual stress documentation is relying on the assumption that the heat treatment and shot peening process produced an acceptable residual stress state — an assumption that is correct on average and wrong on the individual components that fail in warranty.

Machinability And What It Signals About Microstructure

Automotive engineers specify hardness bands on forged blanks before machining not just to ensure the heat treatment achieved the target properties, but because hardness outside the specified band signals a microstructure that will machine differently from what the CNC programme and cutting parameters were calibrated for. A normalised 4140 forging at 280–320 HB cuts cleanly at the programmed feed and speed. The same forging with untempered martensite patches from incomplete tempering reaches 40 HRC locally and abruptly shatters carbide inserts that were specified for the 300 HB average — cutting tool failure that the machine operator initially suspects is a tooling batch problem before someone checks the incoming forging hardness trace and finds a point at 38 HRC.

Ferrite-pearlite banding — elongated bands of ferrite alternating with pearlite through the forging cross-section, a segregation artefact from the original billet's solidification — produces alternating layers of soft and hard material that the cutting tool cycles through on every revolution, producing chatter, vibration, and tool wear patterns that differ from those in a homogeneous microstructure. Banding in a gear blank fed into a gear hobbing operation with a specific chip load per tooth produces interrupted cutting conditions at the hob tooth that the cutter geometry was not designed for, reducing hob life and producing involute profile errors at the band locations that a gear checker measures as elevated total profile deviation without an obvious process explanation.

Sendura Forge Pvt. Ltd., IATF 16949:2016 and ISO 9001:2015 certified, operating from Rajkot with 800 MT monthly production capacity across 700-plus active part numbers and OEM customers including DANA, Mahindra, Eaton, New Holland, and TAFE, produces forged automotive components with documented billet chemistry control, induction heating temperature logs, and heat treatment furnace traces — the production record set that allows automotive engineers to trace fatigue, machinability, and dimensional issues back to specific production variables rather than accepting "within specification" as a closed answer when a component fails to meet its design life.

Noise, Vibration, and the Surface Quality That Determines Both

NVH — noise, vibration, and harshness — is the automotive performance parameter that most directly reflects manufacturing variation in forged automotive components, and it is the parameter that generates the most warranty claims in final assembled vehicles because its threshold is customer-perceived rather than objectively specified. A transmission gear that generates 2 dB more noise than the development vehicle under the same load conditions is a warranty-relevant issue even if every dimensional and material parameter on the finished gear is within tolerance.

Surface waviness on the forged blank's datum faces — the faces used to locate the blank in the hobbing or turning fixture — introduces a systematic geometric error into every machined feature referenced from those faces, because the machine tool's motion is accurate relative to the fixture but the fixture's reference surface is not accurate relative to the blank's true centreline. Waviness is a mid-spatial-frequency surface irregularity between the scale of roughness and the scale of flatness, with wavelengths typically in the 1–10 mm range, that standard flatness measurement with a dial indicator on a surface plate misses because the indicator tip bridges across the waves rather than following them. Measurement by surface profilometer with a long traverse length relative to the wavelength — at least 4–5 wave periods per traverse — captures waviness separately from roughness and flatness, providing the surface characterisation that a gear blank's datum quality actually requires.

Conclusion

Automotive engineers looking beyond strength in forged automotive components are looking for the manufacturing variable discipline that determines whether the strength number in the datasheet is realised at the specific location in the component where the fatigue crack initiates, across the variation of a 100,000-unit annual production run, at the end of a 200,000 km service life. Tensile strength is a necessary condition. It is not a sufficient one.

The components that achieve design life reliably are produced by manufacturers who have identified the failure modes, traced each to a controllable manufacturing variable, and built the process control and documentation infrastructure to demonstrate that the variable is actually controlled rather than assumed to be. That is what the PPAP qualification cycle is designed to verify, and what the OEM field failure investigation confirms — or disproves — in the first warranty period.
