Why Should Construction Teams Adopt Scan to BIM Services for As-Built Models?

Construction projects involving existing buildings rarely start with reliable documentation. Original drawings often reflect design intent rather than final construction, while decades of alterations remain unrecorded. Structural elements shift, ceiling heights vary, and mechanical or electrical systems follow paths that differ from available plans. When construction teams rely on such information, conflicts emerge during demolition, coordination, and installation phases. These conflicts increase change orders, disrupt sequencing, and complicate contractor coordination, particularly in renovation and adaptive reuse projects.

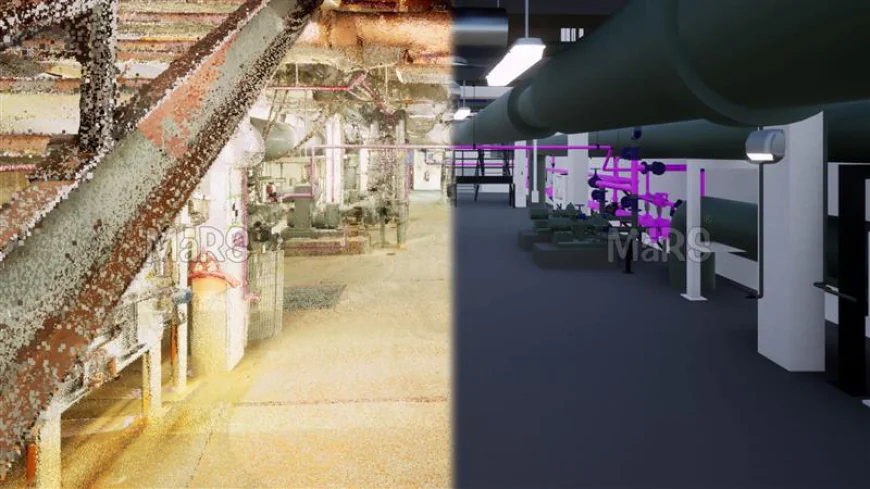

Scan to BIM Services directly address this operational gap by translating physical site conditions into data-driven as-built BIM models. Laser scanning captures actual geometry, system locations, and spatial constraints with high precision, allowing BIM models to represent what exists rather than what was planned. This accuracy supports informed decision-making before work begins on site. Trade coordination improves, material quantities reflect real conditions, and construction sequencing aligns with verified spatial data. As-built BIM models support compliance reviews, safety planning, and constructability analysis. They are particularly valuable in complex facilities like hospitals, government buildings, and industrial plants. Construction teams move away from assumption-based planning and toward measurable, verifiable building intelligence that supports cost control, schedule reliability, and long-term asset value.

What Is Scan to BIM and How Does It Capture Existing Building Conditions?

It is a process that documents existing buildings by converting laser-scanned site data into accurate, editable BIM models. Instead of depending on drawings that reflect past design intent, this method records the building exactly as it exists at the time of scanning. Laser scanners capture precise spatial data for floors, walls, columns, beams, ceilings, and installed systems. BIM professionals then translate this data into structured digital models that reflect real dimensions, alignments, and construction tolerances. These models provide construction teams with a reliable digital baseline for renovation, retrofit, and expansion projects.

The capture of existing conditions starts with on-site scanning, where millions of data points record geometry and spatial relationships across the facility. This data forms a scanned data that visually and dimensionally represents the building. During modeling, teams reference the point cloud to trace elements accurately, verify clearances, and confirm system routing. This approach captures irregularities, deviations, and field-installed conditions that traditional surveys often miss. As a result, construction teams gain visibility into actual site constraints before work begins, supporting better planning and coordination.

Scan to BIM captures existing building conditions through:

• Terrestrial laser scanning of architectural, structural, and MEP elements

• High-density mesh data representing real geometry and elevations

• Modeling based on scanned conditions rather than legacy drawings

• Identification of offsets, clashes, and spatial constraints within the model

• Creation of as-built BIM models suitable for construction and coordination use

Workflow for As-Built Models

Control Setup and Scan Planning

Survey teams establish control points and scanning positions based on renovation scope, ceiling congestion, and access constraints, defining accuracy targets that guide data capture for construction-level modeling.

High-Density Reality Capture

Technicians scan structural frames, floor slabs, service corridors, and ceiling voids at defined resolutions to record offsets, penetrations, and installation deviations critical for trade coordination.

Point Cloud Registration and QA

Specialists register scans to project coordinates, check tolerances between scan stations, and flag data gaps that could affect modeling accuracy in high-risk construction zones.

Discipline-Based Model Development

Modelers convert scan data into architectural, structural, and MEP elements, following agreed LOD standards and reflecting field-installed conditions rather than design assumptions.

As-Built Verification and Handover

Teams validate modeled geometry against scan references, apply tags and markups, and issue as-built BIM files ready for renovation planning, sequencing, and coordination reviews.

How As-Built Details Are Accurately Captured

Accurate as-built details begin with controlled reality capture rather than visual inspection or manual measurements. Laser scanners record geometry at millimeter-level precision, capturing slab edges, beam depths, column offsets, wall deflections, and ceiling profile variations. This data reveals construction tolerances, misalignments, and field-installed conditions that drawings rarely document. Scanning also records service routes above ceilings and within shafts, where deviations frequently occur due to site constraints. By capturing these elements digitally, construction teams gain a factual record of spatial conditions before any design or demolition work starts.

Specialists trace building elements directly from scanned data instead of referencing historic drawings. Modelers align grids, levels, and system paths to scanned coordinates, preserving real-world relationships between structure and services. They verify clearances around equipment, confirm penetration locations, and model system intersections exactly as installed. Quality checks compare modeled geometry against scan slices at multiple locations, reducing dimensional discrepancies. This method produces as-built BIM models that reflect installed conditions with measurable accuracy, supporting coordination, renovation planning, and construction sequencing.

Tools and Software Used

Applications in Real Construction Projects

USA Federal Building Scan to BIM Project

MaRS Trans USA LLC delivered Point cloud to BIM Services for the David W. Dyer Federal Building and U.S. Courthouse in Florida during 2016–17. The 20,000 sq.m. historic facility required accurate as-built data to support renovation for Miami-Dade College. Using laser scanning and BIM tools such as Revit, AutoCAD, and Navisworks, the team documented existing conditions and modeled structural and spatial elements precisely. The as-built BIM model supported renovation planning while preserving historic architecture and integrating modern educational spaces.

Sydney Opera House Renovation

A separate project in Australia used 3D laser to BIM to renovate complex performance and service areas of the Sydney Opera House. Contractors captured highly detailed point cloud data of curved roofs, structural trusses, and MEP systems using high-resolution laser scanners. BIM specialists converted the scans into accurate 3D models compatible with Revit and Navisworks. The models guided mechanical upgrades, structural assessments, and interior renovations, helping project teams plan interventions without damaging the iconic structure, while coordinating multiple trades within tight spatial constraints.

Common Challenges and Solutions

• Large 3D datasets can slow processing, so teams segment scans by zones and floors while using high-performance software to maintain accuracy and efficiency.

• Inaccessible or occupied areas limit data capture, so technicians deploy handheld or mobile scanners and schedule scans during low-occupancy periods to record hidden or operational spaces.

• Irregular geometries and historic elements complicate modeling, so specialists apply high-density scanning and adaptive parametric modeling to replicate curved roofs, ornamental facades, and non-standard structures precisely.

• Coordination across multiple trades often causes clashes, so teams integrate architectural, structural, and MEP models in a shared BIM environment to resolve conflicts before construction begins.

• Maintaining model accuracy requires constant validation, so modelers cross-check data against built elements, verify critical dimensions on site, and perform iterative QA/QC during BIM development.

• Tight project schedules challenge scanning and modeling, so teams plan phased workflows, prioritize critical zones, and align BIM deliverables with construction milestones to avoid delays.

Best Practices for Successful Implementation

Start with a detailed scanning plan, including control points, scanning resolution, and area priorities. Define the level of detail required for each discipline and align with project objectives. Assign experienced surveyors and BIM modelers who understand construction tolerances, complex MEP systems, and architectural nuances. Maintain continuous QA/QC by cross-referencing point clouds with modeled elements, and use collaborative platforms for real-time coordination among trades. Document assumptions, mark deviations, and integrate scanned data with design and construction workflows to reduce rework, improve trade coordination, and accelerate renovation or retrofit projects efficiently.

Conclusion

Adopting Scan to BIM Services allows construction teams to capture precise as-built conditions, reduce design conflicts, and improve coordination across architectural, structural, and MEP systems. By converting laser-scanned data into intelligent BIM models, teams gain reliable digital references that guide renovation, retrofit, and expansion projects. These models support informed decision-making, accurate quantity verification, and efficient sequencing, while preserving critical design and historical features. Implementing 3D Scann to BIM enhances project predictability, minimizes errors, and provides long-term value for facility management and future construction initiatives.
