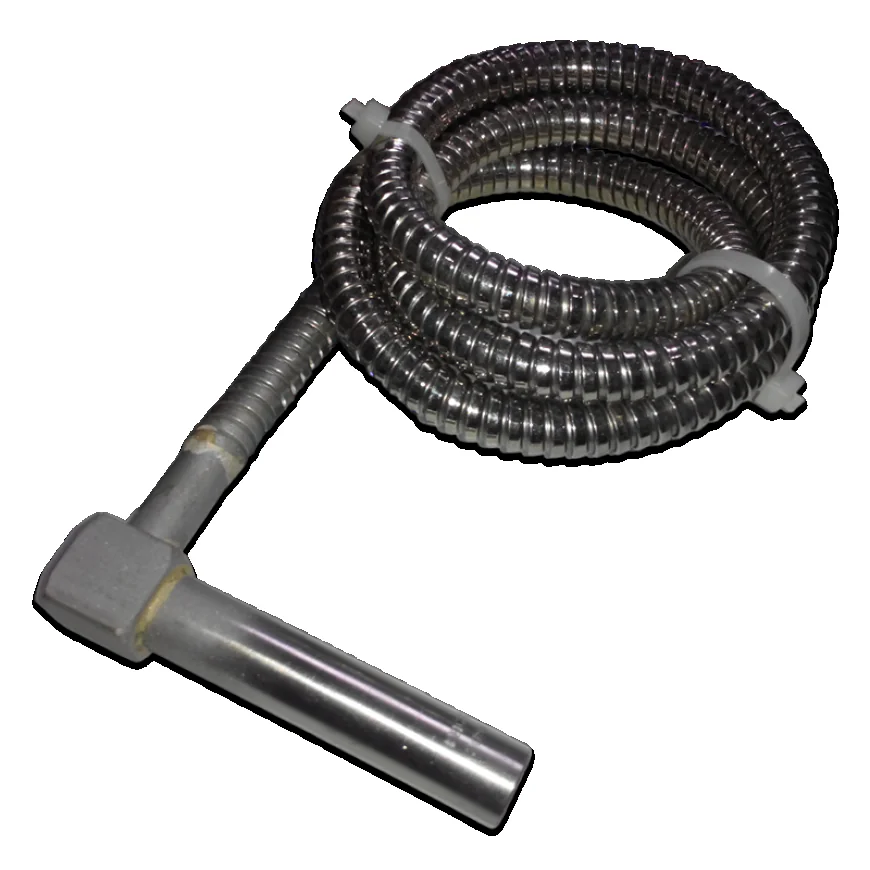

What to Look for in a High-Quality Cartridge Heater?

When it comes to heating applications, though there are countless choices, the cartridge heater is the best one. Due to their versatility and consistent heating, they are the favorite of the manufacturer. They are used in plastic molding, packaging machinery, hot runner systems, and the pharmaceutical industries, among others. The need to perform efficiently under high temperatures makes it a reliable heating solution. However, to make the most of this heating solution, it is essential to make the right choice. It will ensure durability and reliability, reducing the downtime of the operations. In this post, we will list the key factors that you should look for when choosing a cartridge heater.

• Material Quality:

One of the major things to look for when choosing a cartridge heater is inspecting its body material. The outer sheath is made of stainless steel or Incoloy. These materials are known to be sturdy, anti-corrosive, and resistant to high temperatures. A high-quality heater will use premium-grade stainless steel, which will ensure durability even in extreme temperatures.

Apart from that, the inside of the heater should be of magnesium oxide insulation to fill the space between the heating element and the sheath. The pure MgO ensures electrical insulation and optimal thermal conductivity. Also, the internal nichrome heating coil must be of premium quality, which will lead to consistent heating. If you are still unsure about how to exactly identify the above-mentioned signs, well, look for physical signs that there should be no gaps, dents, or loose areas. Inspect whether the winding of the heating coil is done evenly.  These are the signs of a high-quality cartridge heater.

• Watt Density:

It is the power per square inch that the heater delivers to its surface area. There are cartridge heaters available in different wattages, ranging from low, medium to high. You should select the one that is according to the needs of your applications. The one that heats up quickly and performs well even under heavy-duty operations. A poorly matched watt heater will lead to overheating and inefficient use of the machine. It will also increase the cost of operations due to constant extra usage of power. So, for demanding operations like injection moulding, choose a high-voltage heater. On the other hand, choose the low-density heaters.

• Temperature Control:

Temperature control is a must in heating operations, and each of the applications has specific requirements. The cartridge heater must be able to maintain a stable temperature throughout its use, even under fluctuating load conditions. The  Type J or Type K allows easy monitoring as well as controlling of the temperature. The advanced cartridge heater is equipped with features like thermocouples, which allow for recording real-time temperature to the operators. This way, they will be aware of how much heat is being generated and the consistency, which reduces the energy waste.

• Durability:

When it comes to heaters, it is an understood fact that they must perform under extremely high temperatures. The role of the cartridge heater is to provide continuous heating while also protecting against vibration, chemical exposure, and mechanical stress. Here are some of the qualities of a premium heater.

• High magnesium oxide insulation

• Rust proof

• Vibration-resistant construction

• Strong lead wire insulation

• Moisture-sealed end caps

These are some of the features that will keep the heater in good condition. Moisture and contamination are among the top reasons why the heater may malfunction. The above-mentioned features will ensure that the heater remains in good condition. It will also reduce the downtime and interruptions during the operation.

• Customizations Available:

The application needs for different industries may vary. A high-quality cartridge heater, like ‘Patel Heaters & Control Pvt. Ltd.’, has a wide range of industrial heaters that can be designed as per the needs of the customer. Their engineers have made every heater with advanced features that are in accordance with the needs of the different industries. These heaters provide optimal performance because they are in accordance with the exact requirements for a given operation.

• Energy Efficiency:

The energy efficiency is the need of every manufacturer because they want to avoid a huge electricity bill. Choosing an energy-efficient heating solution is designed to reach the target quickly. It reduces the energy wastage and also reduces the time which is needed to warm up the appliance. Some of the factors that lead to high efficiency are high-density packaging, low heat loss, even heat distribution, and quality insulation.

Final Words…

The cartridge heater is a small component but an essential part of the heating operations. It is vital to choose the right one if you want efficient and reliable operations. ‘ Patel Heaters & Control Pvt. Ltd.’ has years of experience in designing high-quality heaters, not just a cartridge one, but also a manifold heater, water immersion heater, nozzle heater, and laboratory oven. They also design customized ovens that are as to the requirements of the customers. What makes them stand out is the perfect merge of efficiency and affordability that they offer.

Frequently Asked Questions:

• What is a Cartridge Heater?

This is a heavy-duty industrial heater that is cylindrical in shape. It is used to heat a specific portion. It is inserted into small areas like metal blocks for heating applications like plastics molding, packaging, hot stamping, sealing, and scientific instruments.

• How do I choose the right watt density for my application?

The watt density depends on the heat required for the material to be treated. The softer metals need lower watt density, while for fast heat-up, higher watt density is needed.

• What is the difference between a swaged and a non-swaged cartridge heater?

Swaged cartridge heaters are manufactured with tightly compacted insulation, allowing for better heat transfer, higher watt density, longer life, and improved vibration resistance.
Non-swaged heaters are less compact, cheaper, and typically suitable only for lighter-duty applications.

• Can cartridge heaters be customized?

Yes, the cartridge heaters can be customized in terms of diameter, length, and wattage. It ensures that you get precise operations, and thus, the operations will be efficient.
