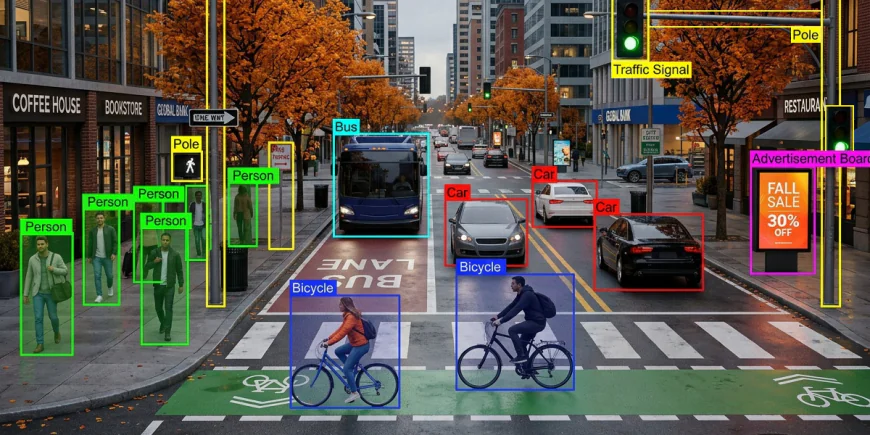

Image Annotation for Computer Vision: A Guide to Building Reliable Training Data

In artificial intelligence (AI), model architecture accounts for only part of overall performance. The reliability of computer vision (CV) deployment also depends heavily on the quality of the underlying training data. Image annotation, the process of applying structured metadata, geometric coordinates, and labels to unstructured imagery, creates the ground truth that allows computer vision algorithms to learn from raw visual information.

Computer vision models learn patterns and representations from visual data, but they require task-specific training signals to relate those patterns to objects, classes, regions, or spatial relationships. Neural networks process digital representations obtained from image pixels, and annotations provide the labeled reference information needed to associate these visual patterns with specific objects, classes, regions, or spatial relationships. This directly impacts the reliability of downstream computer vision applications.

Annotated images establish a clear connection between the visual input and the expected output of the model. In supervised learning, these labeled examples are used as targets against which the model's predictions are compared and optimized. During the prediction stage of a convolutional neural network (CNN) or vision transformer (ViT), the model predicts class probabilities and bounding box coordinates and calculates a loss based on the deviation between these predictions and the human-annotated ground truth.

How Annotation Influences Model Training and Evaluation?

The impact of annotation quality extends from model training to performance evaluation, determining how visual features are learned, predictions are optimized, and model performance is measured.

1. Feature Extraction and Localization: Ground-truth labels provide spatial boundaries and semantic classes, enabling models to map visual features such as edges, textures, and contours to target objects.

2. Gradient Optimization and Backpropagation: Accurate annotations provide reliable training targets, allowing optimization to reduce the gap between model predictions and the expected outputs for the specific computer vision task.

3. Benchmark Testing and Error Analysis: Consistent annotations provide reliable reference data for computer vision metrics, like precision and recall, mean average precision (mAP), and intersection over union (IoU), to facilitate error analysis among visually similar classes.

The Four Core Dimensions of Annotation Quality

Data quality has a significant impact on performance. There are three basic dimensions to evaluate the quality of the annotations:

1. Accuracy: Incorrect spatial shapes and class labels can lead to incorrect visual associations during training and degrade model performance during inference.

2. Consistency: Inconsistent labeling of similar objects creates contrasting visual patterns, leading to optimization instability and model confusion.

3. Completeness: Unlabeled target objects can be interpreted as background during training, which can lead to false-negative signals and reduce detection performance.

4. Compliance: Annotation must follow the project guidelines, class definitions, annotation formats, and task-specific instructions. Following these requirements keeps the dataset aligned with the intended task and prevents avoidable label differences.

These quality requirements must be applied according to the model's specific objective. The selected computer vision task therefore determines what needs to be labeled and at what level of detail.

Image Annotation Categories for Computer Vision Tasks

​Image annotation for computer vision is the silent engine driving the AI revolution, involving labeling visual elements within an image so that models can identify, classify, locate, or distinguish specific objects and regions. These tasks determine the type and level of labeling required, ranging from image-level classification to pixel-level segmentation:

​

​

Once the computer vision task is established, the annotation geometry determines how the relevant visual information is represented within each image.

Core Annotation Geometries and Representations in Computer Vision

Computer vision workflows use different annotation geometries and representations depending on whether a model requires object localization, precise boundaries, specific landmarks, or 3D spatial information.

​

The selected geometry determines the level of visual information included in the dataset. The spatial detail of the models depends on the type of visual information required in different industries.

Industry Applications and Computer Vision Use Cases

​The relationship between annotation geometry and model requirements becomes clearer across industry-specific applications. Different use cases rely on particular annotation methods to capture the visual information required for deployment:

​

Once the annotation task and geometry are defined, the resulting labels must also be structured in a format compatible with the intended training framework.

Image Annotation Export Formats: COCO, YOLO, and Pascal VOC

​Choosing the correct annotation type addresses only part of the technical decision. The annotation format also determines how efficiently and reliably the resulting dataset can be integrated into the model development workflow. Format mismatches can become a significant failure point because incorrect coordinate systems, class mappings, or normalization conventions may not always produce obvious execution errors.

Three widely used annotation formats include:

• COCO (JSON): A JSON-based annotation format that supports object detection, segmentation, keypoints, and related metadata.

• YOLO (TXT): Common YOLO detection workflows use one label file per image, with object class and normalized bounding-box coordinates. Other YOLO task formats, like segmentation and pose estimation, use additional coordinate information.

• Pascal VOC (XML): A legacy format that contains the bounding parameters for each image in absolute pixel coordinates in structured XML documents. Pascal VOC is still a widely recognized format for legacy datasets, research projects, and annotation conversion workflows.

Before model training, converted annotations should therefore be validated for coordinate normalization, class mappings, and overall annotation integrity.

From Data Acquisition to Annotation Quality Control

Data quality starts early with the selection of representative data, extends to label preparation for model training, and continues with model-assisted labeling, human review, and quality control. Data quality in the context of label preparation for model training depends on the type of annotation format and the validation process.

• Proprietary vs. Public Computer Vision Datasets: Open datasets (COCO, Open Images) provide baseline benchmarks for initial neural network pre-training. For specialized deployments, domain-specific visual data collected from relevant cameras, sensors, or operating environments can help reduce the impact of domain shift.

• Model-Assisted Pre-Labeling & Active Learning: Computer vision models can generate pre-labels for incoming image frames. Human annotators can then review and refine these preliminary labels, reducing manual effort while maintaining human oversight of the final annotation.

• Quality Control in Vision Pipelines: Systematic validation protocols select appropriate metrics based on the annotation task and geometry, and can evaluate the reliability of annotations using metrics such as inter-annotator agreement (IAA) and intersection over union (IoU).

This lifecycle helps maintain alignment between the original visual data, the annotation requirements, and the final datasets used for model development.

Conclusion

The success of computer vision deployment depends on more than algorithmic design; it also relies heavily on the fidelity and consistency of the underlying training data. As computer vision models continue to evolve, task-specific annotation practices remain important for developing datasets that support accurate model training, meaningful evaluation, and dependable real-world applications.

However, creating a production-grade vision system requires a disciplined approach at every level of the annotation lifecycle, from choosing the right computer vision task category and spatial format to selecting the right storage scheme to establishing rigorous human-in-the-loop (HITL) review protocols. Treating image annotation as a core discipline of computer vision engineering rather than a transactional data entry task can help improve dataset integrity, improve model evaluation, and support more consistent development and deployment workflows.
