When setting up servers, network switches, patch panels, or storage systems, choosing the correct rack mount screw size is more important than many IT installers realize. A small mismatch in screw size can lead to unstable equipment, damaged rack rails, stripped threads, and unnecessary installation delays. Whether you are managing a data center, configuring a server room, or building a home lab, understanding rack mounting hardware helps ensure a secure and professional installation.

This complete guide explains the most common rack mount screw sizes, their applications, and how accessories like blanking panels improve airflow and rack efficiency.

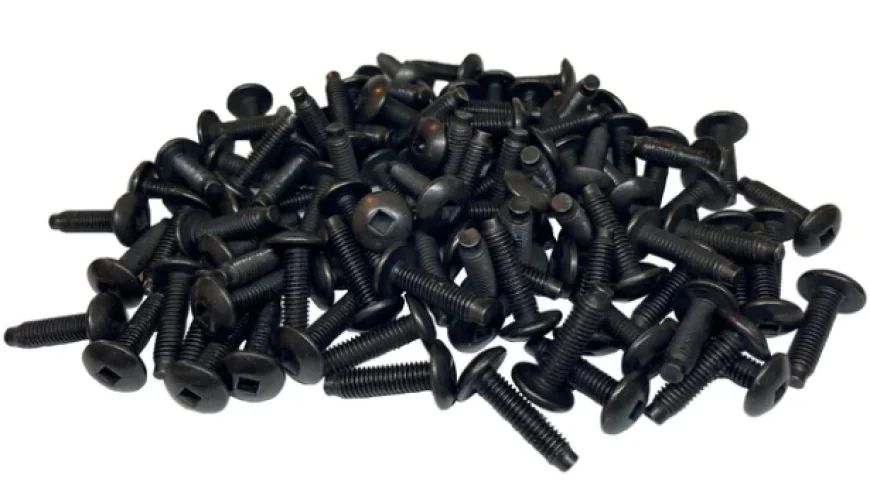

What Is a Rack Mount Screw?

Rack mount screws are specialized fasteners used to secure IT equipment into standard 19-inch server racks. These screws fit into threaded or cage nut rack rails and are designed to hold heavy networking and server equipment safely in place.

Different racks use different thread standards, so selecting the right screw size is essential before installation begins.

The three most common rack mount screw types are:

• 10-32 screws

• 12-24 screws

• M6 screws

Each size serves different rack systems and equipment requirements.

Common Rack Mount Screw Sizes Explained

1. 10-32 Rack Screws

The 10-32 screw is one of the most widely used rack mounting screws in IT environments.

Specifications:

• Diameter: #10

• Thread count: 32 threads per inch

• Typically used in: Network racks and light-to-medium equipment

These screws are common in older server racks and telecom installations. Because they have finer threads, they provide secure fastening but require careful handling to avoid cross-threading.

Best Uses:

• Patch panels

• Lightweight switches

• Cable management accessories

• Blanking panels

2. 12-24 Rack Screws

12-24 screws are larger and stronger than 10-32 screws. They are commonly used in heavy-duty server racks where equipment weight is higher.

Specifications:

• Diameter: #12

• Thread count: 24 threads per inch

• Common in: Enterprise server cabinets

These screws are ideal for mounting heavier servers and UPS systems because they provide improved holding strength.

Best Uses:

• Rack-mounted servers

• UPS units

• Large network switches

• Heavy storage devices

3. M6 Rack Screws

M6 screws use a metric sizing system and are extremely common in modern server racks worldwide.

Specifications:

• Diameter: 6 mm

• Metric threading

• Usually paired with cage nuts

Many major rack manufacturers now standardize on M6 hardware due to its versatility and compatibility.

Best Uses:

• Data center racks

• Enterprise cabinets

• Universal mounting applications

• Blanking panels and accessories

How to Identify the Correct Rack Mount Screw Size

Before purchasing screws, installers should inspect the rack carefully. Here are the easiest ways to identify the proper size:

Check the Rack Documentation

Most rack manufacturers clearly specify the compatible hardware type in product manuals or labels.

Examine Existing Hardware

If screws are already installed, compare them against known sizes or use a thread gauge.

Look for Cage Nuts

If the rack uses square mounting holes, it likely requires cage nuts with M6 screws.

Avoid Forcing Screws

Never force a screw into rack rails. Incorrect threading can permanently damage the rack and create expensive repair issues.

Why Proper Rack Mount Screws Matter

Using the wrong rack mount screw size can cause several installation problems, including:

• Equipment instability

• Stripped rack threads

• Poor weight distribution

• Difficult maintenance access

• Increased vibration risks

Professional IT installers understand that proper hardware selection improves both safety and long-term rack reliability.

For mission-critical environments such as data centers, every mounting component contributes to operational stability.

The Role of Blanking Panels in Rack Installations

In addition to screws and mounting hardware, blanking panels are essential rack accessories that improve airflow management and rack appearance.

Blanking panels cover unused rack spaces to prevent hot and cold air mixing inside server cabinets. This helps cooling systems operate more efficiently and reduces the risk of overheating.

Benefits of Blanking Panels

Improved Cooling Efficiency

Blanking panels help direct airflow through active equipment instead of allowing air to circulate inefficiently through open rack spaces.

Better Rack Appearance

Unused spaces can make racks appear incomplete or disorganized. Blanking panels create a cleaner and more professional look.

Dust Reduction

By covering empty rack units, blanking panels reduce dust accumulation inside cabinets.

Enhanced Energy Efficiency

Proper airflow management lowers cooling costs in server rooms and data centers.

Choosing the Right Rack Hardware Kit

A complete rack hardware kit often includes:

• Rack mount screws

• Cage nuts

• Washers

• Mounting clips

When purchasing hardware kits, consider:

Material Quality

Steel screws with anti-corrosion coatings provide better durability.

Thread Compatibility

Always confirm the correct rack mount screw size before ordering.

Quantity Requirements

Large installations often require bulk hardware kits to reduce downtime during deployment.

Best Practices for IT Installers

Professional installers follow several best practices during rack assembly:

Use Cage Nut Tools

Cage nut installation tools improve safety and reduce finger injuries.

Organize Hardware in Advance

Separating screws by type prevents confusion during installation.

Avoid Over-Tightening

Over-tightening can strip rack threads or damage equipment mounting ears.

Keep Spare Hardware Available

Extra screws and blanking panels are always useful during maintenance or expansion projects.

Final Thoughts

Understanding the correct rack mount screw size is essential for every IT installer, network engineer, and data center technician. Whether using 10-32, 12-24, or M6 hardware, selecting the proper screw ensures secure equipment mounting and long-term rack stability.

In addition, accessories like blanking panels play a major role in airflow management, energy efficiency, and maintaining a clean professional rack layout.

By choosing the right hardware and following proper installation practices, IT teams can create safer, more organized, and highly efficient rack environments.
