Cartridge Filter Explained: How It Works, Types & Applications

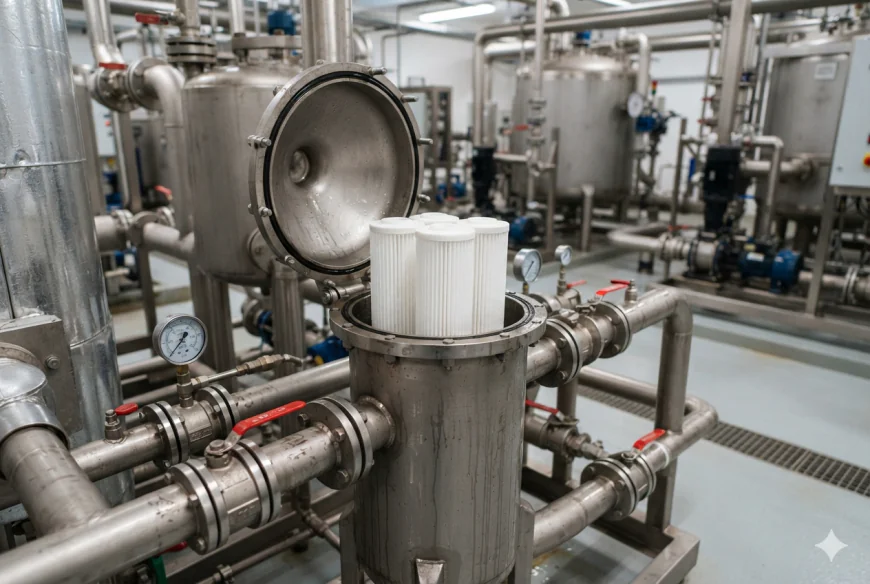

Ever stopped to think about how the tap water in your kitchen stays so crisp, or how massive industrial plants across the Outback keep their fluids free of muck? It comes down to brilliant hidden technology. Cartridge filters are slender, cylindrical gadgets usually enclosed in a durable cover. Their main role is to clean liquids or gases by removing dust, debris, and other contaminants. They apply their micron filter sizes, ranging from 50 microns down to a very tiny 0. 035 microns, to decide what is the minimum size of particles that get blocked. We will discuss how these systems operate, their types, as well as their fields of application.

The Inner Workings

The fundamental concept is very straightforward. Liquid is introduced into a container and forced through a porous material. Clean liquid is permitted to pass; contaminated particles are prevented. This can Mostly be achieved through two methods:

• Surface filtration: It acts as a solid barrier that holds particles on the outermost layer.
• Depth filtration: Encloses the dirt inside the intricately entangled fibres of the thick filter, gradually forming a filter cake that traps progressively finer particles with time.

A standard setup includes:

• Filter media: The actual material that traps the dirt.
• Support core: A rigid structure preventing collapse under high pressure.
• End caps and gaskets: Rubber O-rings stop fluid from sneaking past the edges.

Common Varieties

There is a massive variety out there depending on the job:

• Melt-blown filters: These use a graded density design to trap particles throughout their body, making them brilliant for filtering our rugged bore water or city supplies.
• String wound options: Featuring yarn wrapped in a honeycomb pattern, these are a cost-effective choice for surface waters.
• Pleated filters: These use folded media to create a massive surface area, perfect for high flow rates.

Folks often ask, what are HEPA filters compared to industrial ones? As an aside from outside our resources, they target airborne particles in air-con systems. Back to liquid filtration, systems often rely on activated carbon cartridges to handle tricky stuff, soaking up nasty odours, free chlorine, and organic compounds.

Hard Work Across Industries

This equipment enables the continuous operation of various sectors nationwide:

• Water treatment: They protect reverse osmosis membranes and keep drinking water top-notch.
• Oil and gas: It safeguards membrane elements of reverse osmosis and maintains the quality of potable water.
• Food and beverage: The sector depends on the equipment that can withstand tough work environments to separate water and sand from petroleum, Because of this protecting costly machines.

Maintenance and Upkeep

Knowing when to change your gear is crucial. You keep an eye on the pressure drop. A high pressure drop means the media is clogged with dirt, while zero pressure drop is a massive worry as it usually means a blown seal or ruptured core.

A timely cartridge filter replacement stops major headaches like filter bypass or sudden contaminant release, which could cause a massive product recall. While some pleated types can be rinsed, most depth filters are strictly single-use.

A Greener Future

Traditionally, spin-on filters meant chucking out heavy metal housings alongside the dirty element, creating heaps of scrap metal and wasted oil. Thankfully, the future is looking much greener. The introduction of sustainable cartridge bowls, reusable housings paired with coreless elements, is a game changer. This great idea lowers scrap metal waste by more than ninety per cent and drastically reduces carbon emissions.

Conclusion:

Getting things right, from the micron rating to filter style and material, is a must to safeguard your machinery and ensure your operations run smoothly. Making smart choices is not only very economical but also helps in avoiding downtimes. So, review your filtration system in detail and consider whether it is time for a change.
