Autotransformer vs. Flyback Transformer: Understanding Their Design, Applications, and Key Differences

Introduction

Transformers are super crucial in electrical and electronic systems because they help convert voltages, transfer power, and manage energy use. There are lots of transformer types out there, but let's focus on autotransformer and flyback transformers. While both change voltages, they do it in very different ways, so engineers and designers need to know the ins and outs to pick the right one for industrial gear, power setups, and consumer electronics.

In this piece, we'll dig into how autotransformers and flyback transformers work, their benefits and limits, and where you typically see them used. We'll also look at what goes into choosing between the two.

What Is an Autotransformer?

An autotransformer is a unique kind of transformer using a single winding for both primary and secondary functions. It differs from regular transformers because part of the winding does double duty in the input and output circuits.

This design makes autotransformers smaller, lighter, and more efficient since they transfer some energy via direct connection and some through electromagnetic induction. So, they usually outperform traditional two-winding transformers in terms of weight and size.

How an Autotransformer Works

The winding contains one or more taps that provide different voltage levels. By selecting different tap points, the transformer can either:

• Step up voltage
• Step down voltage
• Regulate voltage levels

The voltage ratio depends on the number of turns between the selected taps and the total winding turns.

Advantages of Autotransformers

• Higher efficiency
• Reduced copper usage
• Lower manufacturing cost
• Smaller physical size
• Improved voltage regulation
• Lower losses compared to conventional transformers

These benefits make autotransformers particularly attractive when only moderate voltage conversion is required.

Limitations of Autotransformers

The primary drawback is the lack of electrical isolation between input and output circuits. Since both sides share a common winding, faults can potentially transfer directly between circuits.

Additional limitations include:

• Reduced safety in certain applications
• Higher fault current potential
• Not suitable where galvanic isolation is required

Common Applications of Autotransformers

Autotransformers are widely used throughout the U.S. electrical industry, especially where efficiency and cost savings are priorities.

Common applications include:

Voltage Regulation

Utilities and industrial facilities use autotransformers to maintain stable voltage levels across power distribution networks.

Motor Starting

Large industrial motors often require reduced-voltage starting methods. Autotransformer starters help lower inrush current during startup.

Power Transmission Systems

High-voltage transmission networks frequently use autotransformers to connect systems operating at different voltage levels while minimizing losses.

Audio and Laboratory Equipment

Variable autotransformers are commonly used in testing laboratories and specialized industrial equipment for adjustable AC output.

What Is a Flyback Transformer?

A flyback transformer is a special type of magnetic component used in switched-mode power supplies. It's different from regular transformers because it works as both a transformer and an energy-storage inductor.

It doesn't transfer energy continuously either. Instead, it stores energy during one part of the cycle and then releases it during another. This unique way of working allows for very efficient and compact power conversion.

How a Flyback Transformer Works

The operation occurs in two stages:

Stage 1: Energy Storage

When the switching transistor turns on, current flows through the primary winding. Energy is stored within the magnetic field of the transformer core. A gapped core design prevents magnetic saturation and allows substantial energy storage.

Stage 2: Energy Transfer

When the switch turns off, the stored magnetic energy is transferred to the secondary winding and delivered to the output load.

This cycle repeats thousands or even hundreds of thousands of times per second.

Advantages of Flyback Transformers

Flyback transformers provide several important benefits:

• Electrical isolation between input and output
• Multiple output voltages from a single transformer
• Compact design
• Low component count
• Cost-effective power supply architecture
• Suitable for wide input voltage ranges

These characteristics have made flyback converters one of the most popular power supply topologies in modern electronics.

Limitations of Flyback Transformers

Despite their advantages, flyback transformers also have limitations:

• Lower efficiency at high power levels
• Increased switching stress
• Higher electromagnetic interference (EMI)
• More complex magnetic design requirements

As output power increases, alternative topologies such as forward converters or resonant converters may become more practical.

Common Applications of Flyback Transformers

Flyback transformers are commonly found in:

Consumer Electronics

Many chargers, adapters, and power supplies use flyback-based designs because of their simplicity and low cost.

Telecommunications Equipment

Network devices often require multiple isolated voltage rails that can be generated using flyback converters.

Medical Electronics

Medical systems frequently require electrical isolation for safety purposes.

Industrial Control Systems

Controllers, sensors, and automation equipment often use flyback power supplies due to their compact footprint.

LED Drivers

Many modern LED lighting systems utilize flyback transformer technology to achieve efficient power conversion.

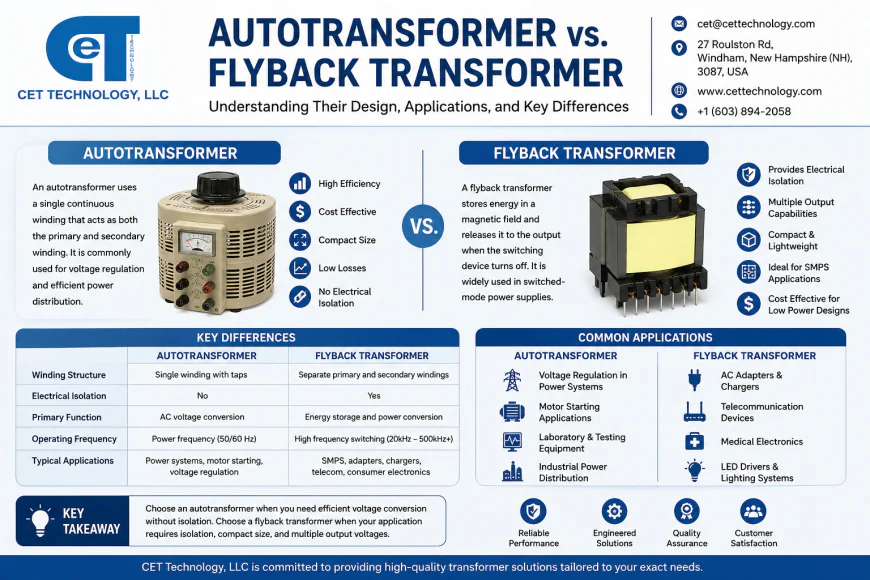

Autotransformer vs. Flyback Transformer

The following table summarizes the primary differences between these transformer technologies.

Choosing the Right Transformer

Selecting between an autotransformer and a flyback transformer depends entirely on the application requirements.

An autotransformer is often the better choice when:

• Isolation is not required
• High efficiency is desired
• Cost reduction is important
• Power distribution applications are involved

A flyback transformer is often preferred when:

• Electrical isolation is necessary
• Compact power supplies are needed
• Multiple output voltages are required
• Electronic equipment power conversion is involved

Understanding these criteria helps engineers achieve optimal system performance, reliability, and safety.

Future Trends in Transformer Technology

Advancements in magnetic materials, power semiconductors, and digital control systems continue to improve transformer performance.

Current industry trends include:

• Higher-frequency operation
• Improved power density
• Enhanced thermal management
• Wide-bandgap semiconductor integration
• Increased energy efficiency standards

These developments are driving innovation in both autotransformer and flyback transformer applications across industrial, commercial, and consumer markets.

Frequently Asked Questions

What is the main difference between an autotransformer and a flyback transformer?

An autotransformer uses a shared winding without electrical isolation, while a flyback transformer uses isolated windings and stores energy before transferring it to the load.

Are autotransformers more efficient than conventional transformers?

Yes. Because they use a shared winding and require less copper, autotransformers typically achieve higher efficiency.

Why do flyback transformers use a gapped core?

The air gap allows the core to store energy without reaching magnetic saturation during switching cycles.

Can a flyback transformer provide electrical isolation?

Yes. Electrical isolation is one of the major advantages of flyback transformer designs.

Where are autotransformers commonly used?

They are commonly used in voltage regulation systems, industrial motor starters, and power transmission networks.

Which transformer type is better for power supplies?

For isolated switched-mode power supplies, flyback transformers are generally the preferred solution because they provide isolation and support multiple outputs.

Conclusion

Autotransformers and flyback transformers both rock in electrical engineering, even though they serve very different goals. Autotransformers do great at converting voltages efficiently when isolation isn't needed. On the other hand, flyback transformer ace low-to-medium power supplies, storing energy and offering isolation too.

Knowing their ins and outs – how they're built, what makes them tick, plus their pros and cons – lets engineers boost efficiency and safety, and get better system performance all around.
