When you think about what keeps electrical systems safe — in a factory, a hospital, a residential building, or an industrial plant — it's rarely the copper that gets the credit. It's the insulation wrapped around it. That thin layer of polymer or rubber sitting between the conductor and the outside world is what stands between a functioning electrical system and a catastrophic failure.

Yet despite being so critical, insulation thickness is one of the most underappreciated quality parameters in cable and wire manufacturing. In Australia's growing manufacturing and infrastructure sectors, getting this measurement right isn't just a matter of compliance — it's a matter of safety, efficiency, and long-term cost savings.

What Is a Wire Insulation Thickness Measurement System?

A wire insulation thickness measurement system is a non-contact or contact-based inspection tool used to measure the thickness of the insulation layer applied over a wire or cable conductor. These systems are typically deployed inline during the manufacturing process or used in quality control labs for post-production inspection.

The measurement can be done using various technologies — ultrasonic sensors, X-ray scanning, laser micrometers, or capacitance-based methods — each suited to different wire types, production speeds, and accuracy requirements.

In simple terms, these systems answer a critical question on the production floor: Is the insulation thick enough, consistent, and evenly distributed around the conductor?

Why Does Insulation Thickness Matter So Much?

Cable insulation serves multiple functions. It provides electrical isolation, protects the conductor from environmental damage, provides mechanical strength, and in some cases offers thermal resistance. If the insulation is too thin, you're looking at dielectric breakdown, short circuits, or even fire hazards. If it's too thick, you're wasting material, adding unnecessary weight, and potentially failing dimensional specifications.

In real-world terms:

• Too thin: Risk of electrical leakage, compliance failure, safety incidents
• Too thick: Excess raw material cost, failed dimensional checks, overheating in tightly bundled cables
• Uneven distribution (eccentricity): Weak spots that fail under mechanical stress or voltage

For Australian manufacturers operating under AS/NZS standards and supplying to industries like mining, construction, energy, and telecommunications, the tolerance for error is extremely narrow.

How a Cable Insulation Thickness Measurement System Works

Modern cable insulation thickness measurement systems use non-destructive techniques to measure the insulation in real time as the cable moves through the production line. Here's a quick look at how the process typically works:

1. The cable passes through the measurement zone — this could be an ultrasonic head, an X-ray frame, or a laser scanning ring.
2. The system captures data continuously, measuring the outer diameter of the insulated cable and the inner conductor diameter.

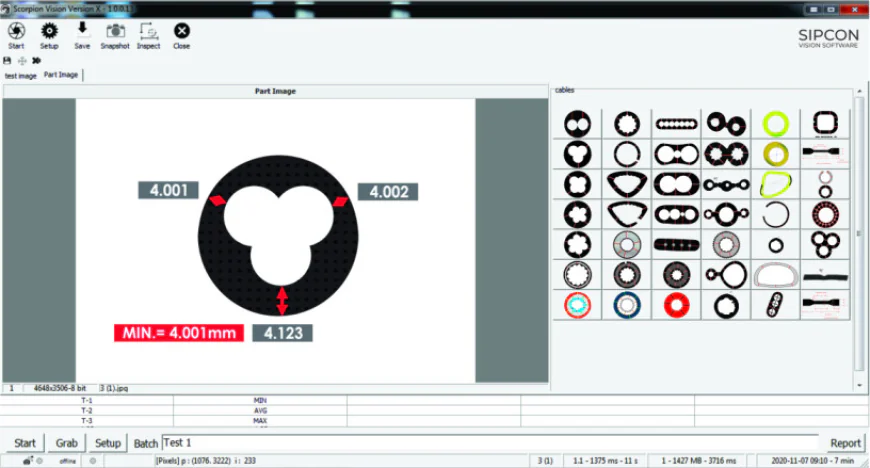

3. Software calculates the insulation thickness at multiple points around the circumference — not just at one point, but at 6, 8, or even 12 positions simultaneously.
4. Eccentricity is computed — this tells you if the insulation is evenly distributed or if the conductor has shifted off-centre.
5. Real-time alerts flag any deviation from preset tolerance limits, allowing operators to make immediate corrective adjustments to the extrusion process.

The result is a continuous quality record — a data log that documents every metre of cable produced.

Key Features to Look for in a Measurement System

Not all measurement systems are created equal. Whether you're buying a benchtop lab unit or an inline production system, here are the features that matter most:

Measurement technology: Ultrasonic systems work well for most thermoplastic insulations. X-ray systems are preferred for measuring wall thickness on very small conductors or in multilayer constructions. Laser systems are ideal for outer diameter and surface inspection.

Measurement speed: For high-speed extrusion lines running at 500–1,000 metres per minute, you need a system that can keep up without missing data points.

Number of measurement axes: Single-axis systems give one thickness reading. Multi-axis systems (3, 4, or 6 axes) give a complete cross-sectional picture, including eccentricity.

Software integration: Modern systems should integrate with SCADA or MES platforms, offering SPC (Statistical Process Control) charts, pass/fail reporting, and data export.

Ease of calibration: A system that's difficult to calibrate will end up being ignored on the shop floor. Look for automated or semi-automated calibration routines.

Build quality for harsh environments: Australian industrial environments — particularly in mining or outdoor cable laying — can be demanding. IP-rated enclosures and robust sensor housings matter.

Who Uses These Systems in Australia?

The applications are broader than most people expect:

• Cable manufacturers use them inline during extrusion to maintain tight tolerances and reduce material waste.
• Quality control laboratories use benchtop versions to inspect finished product samples against AS/NZS cable standards.
• Construction and infrastructure companies use portable measurement tools on-site to verify that installed cables meet specifications.
• Utility providers and mining operations require documented evidence of insulation integrity for safety audits and insurance purposes.

Australia's cable manufacturing sector has been growing steadily, driven by renewable energy projects, data centre expansion, and infrastructure investment. With that growth comes increased scrutiny on product quality — and a greater need for reliable measurement tools.

Common Challenges Manufacturers Face Without Proper Measurement

If you're still relying on manual sampling or end-of-line checks alone, here's what you're likely dealing with:

• High scrap rates — catching problems after the fact means entire reels of cable may need to be rejected.
• Customer complaints and returns — thin insulation that passes visual inspection can still fail in the field.
• Material overuse — without real-time feedback, extruder operators tend to run thick to stay "safe," wasting compound.
• Compliance issues — AS/NZS 3000 and related standards require documented evidence of dimensional compliance. Spot checks don't always hold up under audit.

An inline measurement system essentially pays for itself through material savings alone in many high-volume production environments.

Choosing the Right Wire Insulation Thickness Measurement System Manufacturer

When it comes to selecting a supplier, experience and after-sales support matter as much as the technology itself. The best wire insulation thickness measurement system manufacturers offer not just the hardware, but commissioning support, operator training, calibration services, and ongoing technical assistance.

For Australian businesses, working with a supplier that understands local standards, can provide prompt on-the-ground support, and has a track record in similar industries is essential.

How Sipcon Technologies Can Help

Sipcon Technologies Pvt Ltd brings extensive experience in precision measurement instrumentation to the Australian market. With a strong portfolio of wire and cable inspection solutions, Sipcon works with manufacturers, quality teams, and project engineers to identify the right measurement system for each application — whether that's a high-speed inline system for a cable extrusion line or a lab-grade instrument for incoming goods inspection.

Their solutions cover a wide range of cable types, conductor sizes, and insulation materials, and are built to deliver accurate, repeatable results in real production environments.

If you're evaluating measurement systems for your facility, or simply want to understand what options are available for your specific cable type and production setup, the Sipcon team is ready to help.
