What Are Hydraulic Motors? Types, Working Principle, Uses & Applications

Hydraulic motors are essential components in hydraulic systems that convert hydraulic energy (fluid pressure and flow) into mechanical rotary motion. They are widely used across industries in the United States, including construction, mining, agriculture, manufacturing, forestry, and material handling. When paired with clean hydraulic oil and efficient filtration systems, hydraulic motors deliver reliable performance, high torque, and long service life.

What Are the 4 Types of Hydraulic Motors?

The four main types of hydraulic motors are:

1. Gear Hydraulic Motors

Gear motors use meshing gears to generate rotational motion. They are compact, cost-effective, and ideal for low- to medium-pressure applications such as conveyors, agricultural equipment, and mobile machinery.

2. Vane Hydraulic Motors

Vane motors use sliding vanes inside a rotor to produce smooth rotation. They operate quietly and are commonly found in industrial machinery requiring consistent speed.

3. Piston Hydraulic Motors

Piston motors are designed for high-pressure applications and provide exceptional efficiency and torque. They are commonly used in excavators, drilling equipment, cranes, and heavy-duty construction machines.

4. Gerotor (Orbital) Hydraulic Motors

Gerotor motors feature an internal gear design that delivers high torque at low speeds. These motors are ideal for agricultural equipment, skid steer loaders, and material handling systems.

Hydraulic Motor Working Principle

A hydraulic motor works by receiving pressurized hydraulic fluid from a hydraulic pump. As the fluid enters the motor, it acts on internal gears, vanes, or pistons, causing the rotating components to turn. This rotational motion drives the connected equipment while the hydraulic fluid returns to the reservoir to repeat the cycle.

The efficiency of a hydraulic motor depends heavily on clean hydraulic oil, proper filtration, and regular maintenance.

What Are Hydraulic Motors Used For?

Hydraulic motors power equipment that requires high torque and reliable performance, including:

• Construction machinery
• Agricultural tractors and harvesters
• Mining equipment
• Industrial conveyors
• Forestry machines
• Marine winches
• Material handling equipment
• Manufacturing systems

Their ability to generate high power in compact spaces makes hydraulic motors the preferred choice for demanding industrial applications.

Hydraulic Motor Pump vs Hydraulic Motor

Although they work together, a hydraulic pump and hydraulic motor perform opposite functions.

• Hydraulic Pump: Converts mechanical energy into hydraulic energy by pressurizing hydraulic fluid.
• Hydraulic Motor: Converts hydraulic energy back into mechanical rotational energy to perform work.

Together, they create an efficient hydraulic power transmission system.

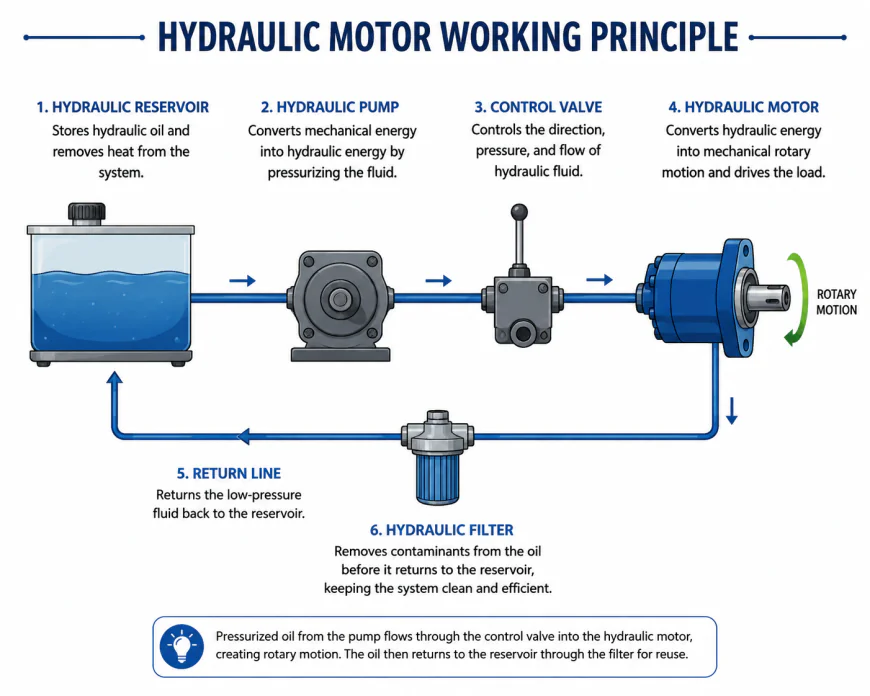

Hydraulic Motor Diagram

A basic hydraulic motor system includes:

• Hydraulic Reservoir
• Hydraulic Pump
• Control Valve
• Hydraulic Motor
• Return Line
• Hydraulic Filter

Keeping hydraulic fluid clean with high-quality filtration significantly improves motor efficiency and reduces wear.

Conclusion

Choosing the right hydraulic motor depends on your application, operating pressure, torque requirements, and system design. Whether you need a gear, vane, piston, or gerotor motor, maintaining clean hydraulic oil through effective filtration is critical for maximizing equipment reliability and minimizing downtime. Businesses across the United States rely on high-performance hydraulic motors and advanced filtration solutions to improve productivity, reduce maintenance costs, and extend equipment life.
