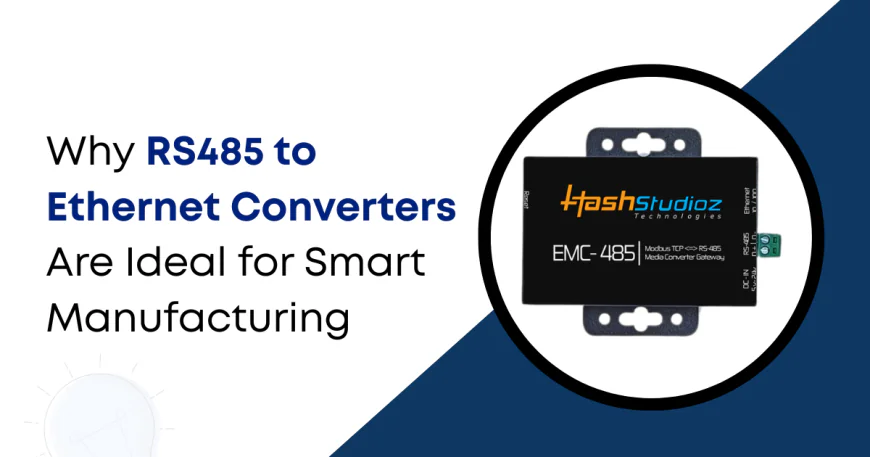

Why RS485 to Ethernet Converters Are Ideal for Smart Manufacturing

Factories evolve constantly. Many industrial systems rely on legacy protocols. These systems use serial communication. Serial communication uses wires like RS485. RS485 offers reliability over long distances. It resists electrical noise. This makes it perfect for factory floors. However, serial cables have limits. They do not talk to modern networks. They do not send data to the cloud.

Modern factories need data connectivity. Managers want real-time reports. They track machine health. They monitor energy use. They integrate sensors with enterprise software. This goal requires an Ethernet connection. An RS485 to Ethernet Converter bridges this gap. It connects old machines to new networks. This article explains why this device remains vital for smart manufacturing.

The Role of RS485 in Industry

RS485 remains a popular standard. It uses a differential signal. This method allows data to travel far. It works well in high-noise environments. Electric motors produce noise. Relays produce noise. RS485 ignores this noise.

Engineers use RS485 for many devices. Sensors use it. PLCs use it. Variable frequency drives use it. These devices act as slaves. They wait for a master command. The master requests data. The slave replies. This system works well for simple tasks. It creates isolated loops of communication.

These loops create data silos. The data stays on the machine. It does not reach the office. It does not reach the dashboard. A PLC reads the temperature. The temperature stays in the PLC. If a manager needs that number, they walk to the machine. This method slows down operations.

The Limitation of Serial Communication

Serial communication limits flexibility. You must wire devices in a daisy chain. You must set specific baud rates. You must manage address IDs. If one cable breaks, the whole loop often fails.

Furthermore, serial signals do not route across the factory. You cannot plug an RS485 wire into a standard network switch. You cannot access the device from your desk. This creates a massive hurdle. Manufacturers want to collect data from every motor. They want to see current, voltage, and speed. Serial protocols stop this flow.

Modern smart factories need TCP/IP. They need standard network routing. They need to connect to IT systems. The industry moved toward Ethernet. Ethernet uses high-speed packets. It allows long-range data transfer. It connects to servers via switches. It supports internet protocols.

How the RS485 to Ethernet Converter Works

The RS485 to Ethernet Converter acts as a translator. It sits between the serial device and the network switch. It performs a specific task. It receives raw serial data. It converts the electrical signals. It then packages the data into Ethernet frames.

The converter uses a specific protocol. It often uses Modbus TCP/IP. It encapsulates the Modbus RTU data. The Ethernet network carries the packet. A central server receives it. The server unwraps the packet. It reads the serial data.

The process is fast. It happens in milliseconds. The serial device does not know it uses Ethernet. It thinks it talks to a local serial master. The server does not know it talks to a serial device. It thinks it talks to an Ethernet device. This transparent bridge provides the best of both worlds.

Benefits for Smart Manufacturing

Smart manufacturing requires data access. The converter provides this access easily. It brings several benefits to the shop floor.

1. Centralized Data Management

You no longer visit machines to check status. The converter sends data to a central database. You monitor thousands of points from one screen. You view trends over time. You spot failures before they happen.

2. Reduced Field Maintenance

Technicians do not need to connect laptops to every machine. They diagnose issues over the network. They change settings remotely. This saves hours of travel time. It speeds up repairs significantly.

3. Scalability

Ethernet supports thousands of devices. You add new machines to the network easily. You use standard network switches. You do not need to install complex serial cabling everywhere. You simply add a converter for each new serial device.

4. Integration with IT Systems

IT departments understand Ethernet. They do not understand serial protocols. By converting to Ethernet, the plant floor joins the IT network. The data flows into ERP and MES software. This integration improves business decisions.

Technical Facts and Statistics

The shift to digital infrastructure drives growth. The Industrial Internet of Things (IIoT) market grows every year.

• Market reports show IIoT growth at a CAGR of 15% through 2026.

• Reliable connectivity reduces downtime by 20%.

• A single network outage costs factories thousands of dollars per minute.

• Ethernet-based communication reduces cabling costs by 30% in large plants.

Implementation Best Practices

Proper setup prevents issues. Follow these rules for success.

1. Verify Baud Rates

The converter must match the serial device. If the device uses 9600 baud, set the converter to 9600. Misaligned rates cause garbage data. The device will not respond.

2. Use Correct Wiring

RS485 uses two wires (A and B). Sometimes it uses three (A, B, and Ground). Ensure the polarity matches. A and B must connect correctly. Wrong polarity causes signal errors.

3. Set Timeout Values

Network traffic has delays. Serial traffic is rigid. The converter needs a timeout setting. This allows the system to wait for a reply. Proper timeouts keep the connection stable.

4. Configure IP Addresses

The converter needs an IP address. Use a static IP for reliable access. Do not use DHCP for critical machinery. If the IP changes, the server loses the machine.

Overcoming Common Challenges

Users face problems during setup. Address them with technical logic.

1. Data Latency

Network traffic varies. If your serial device needs sub-millisecond updates, use a direct link. Ethernet adds some latency. For most sensors, this does not matter. Adjust your polling rate in the software.

2. Electrical Interference

Converters should provide isolation. This protects the network from surges. Serial lines can carry high voltage from motors. Always choose a converter with optical isolation. This feature saves your network switches from damage.

3. Protocol Conversion

Serial devices use Modbus RTU. Networks use Modbus TCP. The converter handles this. Make sure you understand the difference. Master devices must know how to talk to both.

The Case for Modbus RTU to TCP/IP

The most common use case involves Modbus. Modbus is the language of industry. It is open and simple.

• Modbus RTU: Binary format, serial transmission.

• Modbus TCP: Modbus data inside an Ethernet packet.

The RS485 to Ethernet Converter bridges these. It reads the RTU frame. It creates a TCP packet. This conversion allows standard web browsers or servers to read the machine data. It removes the need for custom drivers.

Expanding Beyond Basic Monitoring

Converters allow advanced setups.

• Remote Firmware Updates: Update machine software over the air. You do not need to open the machine cabinet.

• Edge Computing: Feed the data to a local gateway. The gateway runs AI. The AI predicts machine wear. This prevents unexpected stops.

• Energy Audits: Track power usage per machine. Find energy leaks. Lower your electric bill.

Selection Criteria for Converters

Not all devices offer the same quality. Select based on these traits.

• Industrial Grade: Look for metal cases. Look for wide temperature ratings (-40 to 85 Celsius).

• Surge Protection: Electrical spikes happen often in factories. Choose a device with built-in protection.

• Virtual COM Port: Some software requires a serial port. The converter software creates a "Virtual COM Port" on your PC. This makes the Ethernet device look like a local cable. This is a vital feature.

• Configuration Interface: Use a device with a web interface. You configure it via a browser. Avoid devices that require complex command-line steps.

Comparison: RS485 to Ethernet vs. Gateway

People often confuse these terms. A simple converter just changes the signal. A gateway does more. A gateway adds logic. It filters data. It formats data for the cloud.

If you just need to read values, a converter works fine. If you need to send data to AWS or Azure, use a gateway. Most modern converters now function as gateways. They do both tasks. Check the spec sheet carefully.

Future Proofing Your Factory

Technology changes fast. Serial ports disappear from laptops. Computers only have USB or Ethernet ports. The RS485 to Ethernet Converter makes your serial machines future-proof. You do not need to replace the machine. You just update the connection method.

This saves capital. You keep your reliable legacy machines. You add modern intelligence. This strategy yields high returns on investment.

Reliability and Safety

Factories value safety above all. Unstable networks cause accidents. A good converter ensures stable data. It prevents data drops. It includes safety features.

• Watchdog Timers: If the network freezes, the converter reboots itself. This restores connectivity automatically.

• Data Buffering: If the network gets busy, the converter holds the data. It waits for space. It sends the data when the path clears. This prevents data loss.

• Encryption: Some advanced converters offer TLS encryption. This secures your data. No one can spy on your factory settings.

Summary of the Path Forward

The transition to smart manufacturing needs planning. Start with the data source. Identify the serial machines. Connect them to the network. Use the RS485 to Lan Converter for reliable results.

Choose devices with high reliability ratings. Test them in one machine first. Ensure the data flow is correct. Then, roll out the system to the full line. Monitor the performance. Track the uptime. You will see immediate improvements.

Modern factories run on data. Data needs a path to travel. The RS485 to Ethernet Converter creates that path. It bridges the past and the present. It turns silent machines into talking assets. It is the simple, reliable choice for modern operations.

Conclusion

The Industrial Internet of Things is not about replacing every machine. It is about connecting them. Manufacturers hold vast amounts of hidden data in legacy serial devices. This data hides in plain sight. It waits for a connection.

The converter transforms this hidden potential. It enables real-time monitoring. It enables predictive maintenance. It enables data-driven decisions. The cost is low. The setup is fast. The value is high.

Manufacturers who adopt this technology gain an edge. They see errors before they stop the line. They optimize their power consumption. They work smarter, not harder. The move from serial to Ethernet marks a major milestone. It marks the true beginning of a smart manufacturing journey. Start your project today. Connect your machines to the network. See what your data tells you. Success depends on clear visibility. Reliable connectivity provides that visibility.
