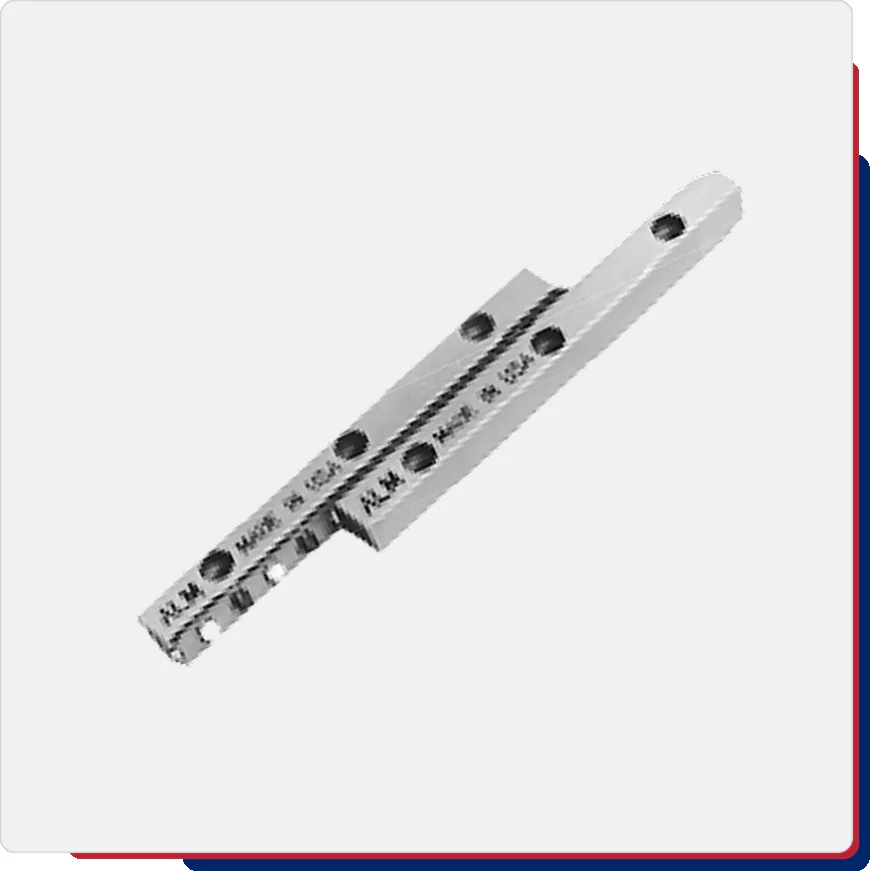

Why Crossed Roller Slides Are the Unsung Heroes of Precision Motion

If you've ever worked with linear motion systems, you know that not all slides are created equal. Some wobble. Some bind up under load. And some just quietly do their job year after year without anyone giving them a second thought. That last category is where crossed roller slides live, and honestly, they deserve a lot more credit than they get.

Let's talk about why these components have become the go-to choice for engineers who need precision motion without the drama.

What Makes Crossed Roller Slides Different

Picture a typical linear slide. You've got two rails, some kind of rolling element in between, and hopefully smooth travel from point A to point B. The problem is, a lot of standard ball-bearing slides start to show their limitations once you push them into demanding territory — heavy loads, tight tolerances, or applications where even a few microns of deflection can throw off an entire system.

Crossed roller slides solve this in a clever way. Instead of relying purely on ball bearings, they use cylindrical rollers arranged in a crossed pattern, alternating direction at 90-degree angles to each other. This crisscross arrangement means the rollers can handle loads coming from multiple directions at once — vertical, horizontal, and moment loads — without needing a separate component for each. It's an elegant solution to a problem that used to require bulkier, more complicated designs.

The line contact between the rollers and the rails also makes a real difference. Ball bearings have point contact, which concentrates stress into a tiny area. Rollers spread that same load across a line, which means you get higher load capacity in a smaller footprint. For anyone designing equipment where space is tight but performance can't be compromised, that's a meaningful advantage.

Where You'll Actually Find Them in the Real World

It's easy to talk about specs and engineering theory, but where does this actually matter? Crossed roller slides show up in places you might not expect. Semiconductor manufacturing equipment relies on them because even the smallest vibration or positioning error can ruin a wafer. Medical imaging systems use them for the same reason — when you're aligning an X-ray source down to fractions of a millimeter, sloppy motion isn't an option.

You'll also find them in optical inspection systems, CNC machine tool axes, laser cutting platforms, and high-end robotics. Basically, anywhere that "good enough" isn't actually good enough, someone has probably specified a crossed roller slide to get the job done right.

The Bearing Technology Behind the Performance

Now here's where it's worth zooming in on the actual rolling elements, because this is where a lot of the magic happens. Crossed roller bearings are the foundation that makes crossed roller slides perform the way they do, and understanding them helps explain why this design has stuck around for decades without needing reinvention.

A crossed roller bearing typically consists of cylindrical rollers placed in a V-shaped or O-shaped groove, with each roller positioned perpendicular to its neighbor. This isn't just a neat geometric trick — it's what allows the bearing to resist loads from every direction simultaneously. Radial loads, axial loads, tilting moments, you name it. A single crossed roller bearing can often replace what would otherwise require two or three separate bearing arrangements stacked together.

That consolidation matters more than people realize. Fewer components mean fewer points of failure, less assembly complexity, and often a more compact overall design. For engineers trying to squeeze high performance into limited space, that's not a small win.

There's also the matter of rigidity. Because the rollers maintain consistent line contact and the crossed arrangement balances forces so effectively, these bearings tend to offer excellent stiffness with minimal elastic deformation under load. If you're running a system where repeatability is everything — think back to those semiconductor and metrology applications — that kind of rigidity isn't a luxury, it's a requirement.

Choosing the Right Slide for Your Application

So how do you actually pick the right crossed roller slide for a project? It usually comes down to a handful of practical questions. What's your expected load, and is it primarily vertical, or are you dealing with significant moment loads too? What kind of travel distance do you need, and how much space do you actually have to work with?

Preload is another factor that trips people up. Some crossed roller slides come with adjustable preload, which lets you fine-tune the balance between smooth motion and rigidity. Too little preload and you risk play in the system. Too much, and you're adding unnecessary friction and accelerating wear. Getting that balance right often makes the difference between a system that performs well for years and one that needs constant adjustment.

Environmental conditions matter too. If you're working in a cleanroom environment, you'll want to look at low-outgassing lubricants and sealed designs that won't introduce contamination. For applications exposed to dust, debris, or moisture, sealing becomes even more important to protect the rollers and maintain consistent performance over time.

Maintenance Realities Nobody Talks About Enough

Here's something that doesn't get discussed enough: even the best-engineered slide is only as good as how it's maintained. Crossed roller slides are generally low-maintenance compared to other linear motion options, but "low-maintenance" doesn't mean "no maintenance."

Periodic relubrication, especially in high-cycle applications, keeps friction low and prevents premature wear. It's also worth periodically checking for any signs of contamination getting past the seals, particularly in industrial environments where dust and particulates are unavoidable. Catching a small issue early is a lot cheaper and less disruptive than dealing with a full bearing replacement down the line because something was overlooked for months.

Temperature is another quiet factor. Extreme heat can affect lubricant viscosity and accelerate wear, while extreme cold can make components stiffer than intended. If your application runs in either extreme, it's worth double-checking that your slide and bearing selection accounts for that operating environment rather than assuming a standard configuration will hold up.

Wrapping It Up

At the end of the day, crossed roller slides represent one of those quiet engineering solutions that solve a complicated problem in a deceptively simple way. By combining smart geometry with high-quality crossed roller bearings, they deliver the kind of precision, rigidity, and multi-directional load capacity that a lot of modern equipment simply can't function without.

Whether you're designing the next generation of semiconductor equipment or just trying to get a CNC axis to behave the way it should, understanding how these components work — and what separates a good one from a mediocre one — puts you in a much better position to make the right call for your project.
