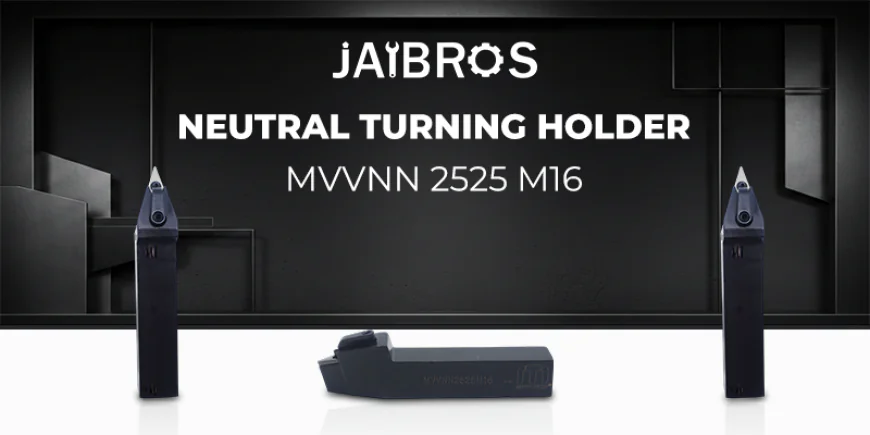

VNMG Tool Holder for Precision CNC Turning Operations
Precision VNMG tool holder designed for CNC turning operations, offering stable clamping, accurate cutting performance, and reliable machining for metalworking.
jai bros
What Is a VNMG Tool Holder? Uses, Types & Benefits
Modern machining demands accuracy, repeatability, and high efficiency. One of the most widely used tools in precision turning operations is the VNMG insert holder, a critical component in CNC and conventional lathe setups. Designed to hold VNMG inserts securely, this tool holder enables smooth metal removal, superior surface finish, and extended tool life.
Understanding the VNMG tool holder angle, insert geometry, and applications helps machinists choose the right setup for optimal performance. In this article, we’ll explore what a VNMG tool holder is, its uses, types, working angles, and key benefits in industrial machining.
Understanding the VNMG Tool Holder
A VNMG tool holder is a turning tool holder specifically made to clamp VNMG inserts. The term VNMG describes the insert geometry and features. The insert has a 35-degree diamond shape, a neutral relief angle, a defined tolerance class, and a hole with a chipbreaker design. This geometry makes the insert sharp and capable of reaching tight corners, which is why the vnmg insert holder is widely used in precision turning tasks.
The tool holder’s job is not only to hold the insert securely but also to position it at the correct vnmg tool holder angle. This angle directly affects cutting forces, chip flow direction, surface finish, and overall machining stability. A properly selected holder ensures that the insert performs at its full potential without excessive vibration or premature wear.
What Is a VNMG Neutral Tool Holder?
A vnmg neutral tool holder is designed for inserts that have zero degrees of relief angle. Since the insert itself is neutral, the holder creates the working clearance angle during mounting. This design provides flexibility and allows machinists to use the same insert style in various applications simply by choosing the appropriate holder configuration.
The vnmg neutral tool holder angle plays a key role in determining how the cutting edge engages the workpiece. It influences tool strength, chip control, and the direction of cutting pressure. Neutral holders are especially popular in CNC environments where multiple operations such as profiling and finishing are required on a single setup.
Importance of VNMG Tool Holder Angle
The vnmg tool holder angle is a critical factor that affects machining performance. It determines how aggressively the insert cuts and how forces are distributed across the cutting edge.
When the angle is optimized, the cutting process becomes smoother and more efficient. Chips flow away properly, reducing the risk of built-up edge and overheating. This results in improved surface quality and longer insert life. A correct angle also enhances stability, minimizing chatter during high-speed machining. In contrast, an incorrect holder angle can increase tool wear, cause poor surface finish, and put extra load on the machine spindle.
Uses of VNMG Tool Holders
VNMG tool holders are widely used in CNC turning operations because of their ability to handle precision tasks with ease. Their sharp insert geometry makes them ideal for external turning of cylindrical components, where consistent diameter control is required. They are also highly effective in profiling applications, allowing machinists to produce complex contours and shapes with high accuracy.
Finishing operations benefit greatly from the vnmg neutral tool holder, as it allows light, controlled cuts that produce smooth surfaces. VNMG holders are also useful for machining close to shoulders and corners, areas that are difficult to reach with larger insert shapes. Although they are not typically chosen for heavy roughing, they perform exceptionally well in medium and finishing cuts where precision matters most.
Types of VNMG Tool Holders
VNMG tool holders are available in various configurations to suit different machining setups. Right-hand and left-hand holders are the most common, selected based on the direction of feed and machine layout. Neutral holders provide greater versatility and are widely used in modern CNC lathes.
Clamping systems also vary. Some holders use a screw clamp system that provides secure insert seating and easy replacement. Others use lever lock mechanisms, which are preferred in production environments where quick insert indexing is important. Regardless of the type, the goal remains the same: to maintain a stable vnmg tool holder angle and ensure reliable cutting performance.
Benefits of Using a VNMG Insert Holder
The popularity of the vnmg insert holder comes from its combination of precision and efficiency. The sharp 35-degree insert shape reduces cutting resistance, which helps in achieving better surface finishes and minimising vibration. This also leads to less stress on the machine and improved dimensional accuracy.
Another advantage is cost efficiency. VNMG inserts often have multiple usable cutting edges, allowing manufacturers to get more machining time from each insert. The holder’s design also improves accessibility, making it easier to machine intricate parts and tight profiles. These features make VNMG holders a preferred choice for industries that demand high accuracy and consistent quality.
Materials Machined with VNMG Tool Holders
VNMG tool holders can be used with inserts designed for a wide range of materials. They perform effectively on carbon steels, alloy steels, stainless steels, and cast iron. With the right insert grade and coating, they can also machine aluminum alloys and heat-resistant superalloys. The correct vnmg neutral tool holder angle ensures efficient chip control and smooth cutting across these materials.
Selecting the Right VNMG Tool Holder
Choosing the correct holder involves understanding the machine setup, workpiece material, and type of operation. A rigid holder is essential for maintaining stability and preventing vibration. The insert grade and chipbreaker should match the material being machined to ensure proper chip formation and tool life. The holder angle must also suit the operation, whether it is finishing, profiling, or medium turning.
Maintenance of VNMG Tool Holders
Proper maintenance extends the life of both the holder and inserts. The insert seat should always be clean to ensure accurate positioning. Clamping components must be checked regularly for wear or damage. Inserts should be replaced before excessive wear affects machining accuracy. Maintaining the holder helps preserve the correct vnmg tool holder angle and ensures consistent cutting performance.
Why VNMG Tool Holders Matter in Modern Machining
In today’s competitive manufacturing environment, productivity and precision go hand in hand. VNMG holders offer a balance of sharp cutting geometry, stability, and flexibility. Their ability to handle detailed profiling and high-quality finishing makes them essential tools in CNC turning centers. By optimizing insert geometry and holder angle, manufacturers can achieve better surface finishes, reduced tooling costs, and improved process reliability.
About Jaibros
Jaibros is a growing name in the CNC cutting tool industry, known for delivering dependable and precision-engineered tooling solutions. The company offers a wide range of tool holders, inserts, and machining accessories designed to improve performance, tool life, and production efficiency. With a focus on quality, innovation, and customer satisfaction, Jaibros supports industries such as automotive, aerospace, mold making, and general engineering with cost-effective and high-performance machining solutions.
Conclusion
A VNMG tool holder is a versatile and precision-focused solution for CNC turning. Whether used for external turning, profiling, or finishing, the vnmg neutral tool holder and related configurations provide excellent control and surface quality. Understanding the vnmg tool holder angle and selecting the right vnmg insert holder can significantly enhance machining efficiency and reduce overall production costs. In modern manufacturing, VNMG tooling remains a key contributor to accuracy, consistency, and high-quality output.
