Stacked Fin Heat Sink: An Advanced Cooling Solution for Modern Electronics

Introduction

In today’s rapidly evolving technological world, electronic devices are becoming more powerful, compact, and efficient. However, with increased performance comes the challenge of heat generation. Managing this heat effectively is critical to ensuring the longevity and reliability of electronic systems. One of the most innovative and efficient thermal management solutions is the stacked fin heat sink. Designed for high-performance cooling, stacked fin heat sinks are widely used in industries ranging from telecommunications to automotive electronics. This article explores the design, advantages, applications, and benefits of stacked fin heat sinks in detail.

What is a Stacked Fin Heat Sink?

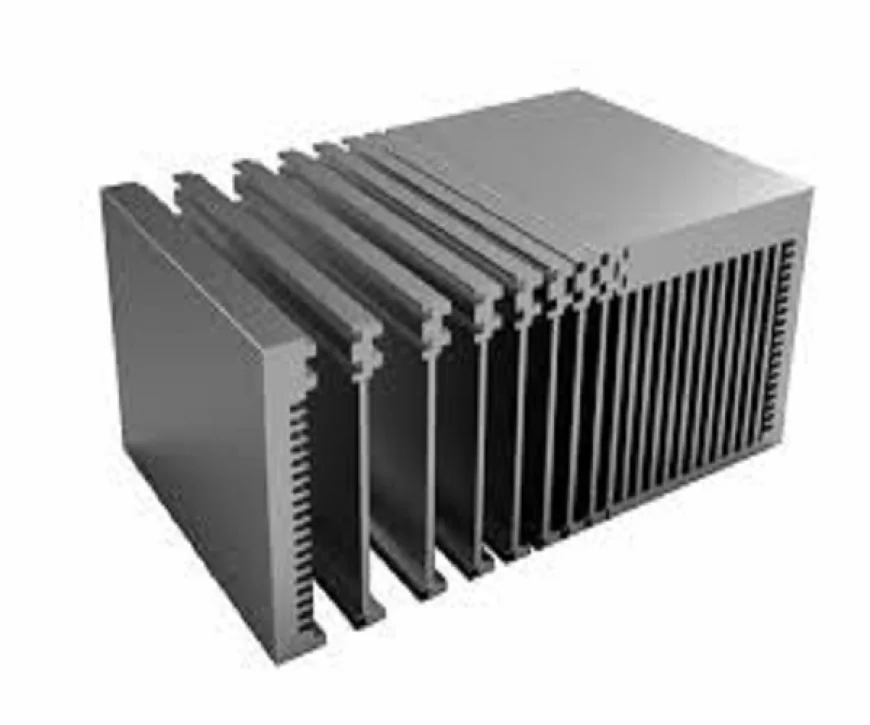

A stacked fin heat sink is a type of heat dissipation device made by stacking multiple thin fins together, typically in layers, to increase surface area for better heat transfer. Unlike conventional flat or extruded heat sinks, the stacked fin design allows for maximum airflow between the fins, which enhances cooling efficiency.

The fins are usually made from high thermal conductivity materials such as aluminum or copper, ensuring fast heat transfer from the base of the heat sink to the surrounding air. This makes them highly effective for cooling high-power components such as CPUs, GPUs, and power electronics.

How Does a Stacked Fin Heat Sink Work?

The working principle of a stacked fin heat sink involves three critical steps:

1. Heat Absorption – Heat generated by the electronic component is conducted into the heat sink’s base.

2. Heat Spreading – The heat is spread across the stacked fins.

3. Heat Dissipation – With a larger surface area created by the fins, heat is dissipated into the surrounding air more efficiently, often assisted by forced airflow (fans).

This design maximizes thermal performance while maintaining a compact structure.

Key Advantages of Stacked Fin Heat Sink

1. Enhanced Surface Area

The stacked fin design significantly increases the surface area available for heat transfer, which leads to more effective cooling compared to traditional extruded or plate-fin designs.

2. High Thermal Performance

With efficient heat dissipation, stacked fin heat sinks provide reliable cooling even in high-power applications, ensuring that devices operate within safe temperature ranges.

3. Versatile Material Options

They can be manufactured from aluminum for lightweight and cost-effective solutions, or copper for maximum thermal conductivity. Hybrid designs are also possible to balance performance and weight.

4. Compact and Lightweight Design

Despite their advanced cooling capabilities, stacked fin heat sinks can be designed to be compact, making them suitable for space-constrained applications.

5. Customizable Designs

Stacked fin heat sinks can be tailored in terms of fin density, thickness, and height to meet specific application needs.

Applications of Stacked Fin Heat Sink

Electronics and Semiconductors

• Used in CPUs and GPUs for powerful computers and gaming systems.

• Critical in cooling high-performance semiconductors in industrial systems.

Telecommunications

• Applied in data centers and networking equipment, where consistent cooling is vital to avoid overheating and downtime.

Automotive Industry

• Essential in electric vehicles (EVs) for battery and power module cooling.

• Used in automotive electronics to ensure reliable performance under high-load conditions.

Renewable Energy Systems

• Applied in solar inverters and wind power converters where efficient thermal management is required.

Factors to Consider When Choosing a Stacked Fin Heat Sink

When selecting the right stacked fin heat sink, consider the following:

• Thermal Requirements – Ensure the heat sink can manage the heat load generated by your device.

• Material Choice – Aluminum for lighter applications, copper for high-heat situations.

• Airflow – Forced airflow (fans) enhances performance, while natural convection may require larger fin areas.

• Size and Space Constraints – The design must fit within the device’s physical space.

• Cost vs. Performance – Balance the need for maximum thermal efficiency with budget constraints.

Manufacturing Methods for Stacked Fin Heat Sink

The production of stacked fin heat sinks involves precision techniques such as:

• Stamping and Stacking – Thin metal sheets are stamped into fins and stacked together.

• Brazing – Fins are joined to the base through brazing, ensuring excellent thermal conductivity.

• Bonding – Adhesive or soldering methods are sometimes used for specific applications.

Each method impacts the cost, durability, and thermal performance of the final product.

Benefits of Using a Stacked Fin Heat Sink in Electronics

Improved Device Reliability

By maintaining safe operating temperatures, a stacked fin heat sink ensures long-term performance and prevents premature failure of electronics.

Energy Efficiency

Efficient thermal management reduces the workload on cooling fans, lowering overall energy consumption.

Flexibility Across Applications

From compact consumer electronics to large-scale industrial systems, stacked fin heat sinks can be adapted to different cooling needs.

Extended Product Lifespan

Heat is one of the biggest threats to electronic components. By minimizing heat stress, stacked fin heat sinks extend the operational life of devices.

Comparison: Stacked Fin Heat Sink vs. Other Heat Sinks

• Extruded Heat Sinks – Less surface area compared to stacked fin heat sinks.

• Bonded Fin Heat Sinks – Similar design flexibility but heavier and more expensive.

• Skived Fin Heat Sinks – High performance but often costlier in manufacturing.

Stacked fin heat sinks stand out as a cost-effective balance between performance, efficiency, and adaptability.

Maintenance and Longevity of Stacked Fin Heat Sink

To ensure maximum performance:

• Keep Fins Clean – Dust accumulation can block airflow and reduce efficiency.

• Check Airflow Paths – Ensure there is no obstruction in the airflow direction.

• Regular Inspection – Periodic checks help detect wear, corrosion, or thermal paste degradation.

With proper care, a stacked fin heat sink can deliver long-term, reliable cooling.

Conclusion

The stacked fin heat sink is a powerful and efficient thermal management solution for modern electronics. Its innovative design, superior cooling capacity, and adaptability make it an ideal choice across various industries, from consumer electronics to automotive and renewable energy systems. By enhancing surface area and optimizing airflow, stacked fin heat sinks ensure electronic components stay within safe operating limits, ultimately improving reliability, performance, and longevity.
