Compressed air always carries water. The moment atmospheric air is squeezed, the moisture in it concentrates, and if nothing removes that water it condenses downstream, in your piping, your tools, and your product. On the prairies the problem has a second edge: an air line that runs outdoors or through an unheated bay can drop below freezing, and wet air plus cold equals ice, blockages, and burst fittings. Choosing the right dryer is not a luxury here. It is what keeps the system running from November to April.

CFM Air Equipment has been solving that exact problem across Western Canada since 1965, and the question we hear most often is a simple one: refrigerated or desiccant? The honest answer is that it depends entirely on the dew point your process and your climate demand.

Dew Point Is the Whole Conversation

Dew point is the temperature at which water vapor in your compressed air turns back into liquid. If your dew point is higher than the coldest temperature your air lines will ever see, water will condense there. So the design rule is straightforward: your dryer must deliver a dew point below the lowest temperature the air will encounter, indoors or out.

A tool running in a heated shop that never sees below 10 degrees Celsius has very different needs from a line feeding an outdoor loading dock at minus 25. That gap is what separates the two main dryer families. Our full range of industrial air dryers exists precisely because no single technology fits every prairie facility.

Refrigerated Dryers: The Efficient Default

A refrigerated dryer works like a small refrigerator. It chills the compressed air until water condenses, drains the liquid away, then reheats the air. Practical units reach a pressure dew point around 3 degrees Celsius.

Where They Win

For the majority of general plant air, air feeding cylinders, impact tools, and machinery kept in a heated building, a refrigerated unit is the efficient, lower-cost, low-maintenance choice. They use modest energy and need little attention. Explore our refrigerated air dryers for indoor systems that never approach freezing.

Where They Fall Short

That 3-degree floor is also the limit. A refrigerated dryer cannot protect a line that dips below freezing, because at that dew point the water is still present and ready to condense the moment temperatures fall. For any air heading outdoors on the prairies, it is not enough on its own.

Desiccant Dryers: When the Air Goes Cold

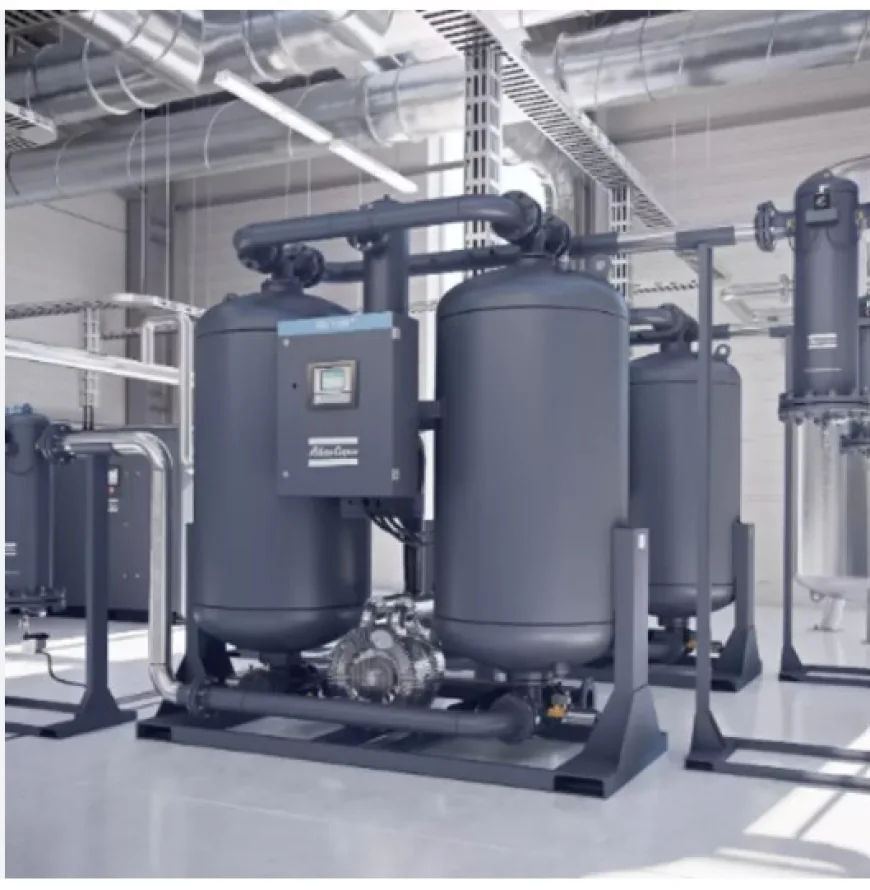

A desiccant dryer removes moisture by passing air over a bed of adsorbent material that grabs water molecules directly. These units reach far lower dew points, commonly minus 40 degrees Celsius and lower, which means the air simply has no water left to freeze.

The Prairie Use Case

Any application where compressed air travels outside, feeds a process sensitive to moisture, or supports instrumentation needs this deep drying. Our desiccant dryers are the standard specification for outdoor lines, cold storage, and critical processes across Alberta and Saskatchewan.

The Trade-Off

Deeper drying costs more, both in equipment and in the purge air or heat used to regenerate the desiccant. That is why the correct move is rarely to dry everything to minus 40. Instead, dry to the level each part of the plant actually needs, and no further.

The Split-System Approach

Many well-designed prairie plants do not choose one dryer, they use both. A refrigerated dryer handles the bulk of indoor plant air efficiently, while a smaller desiccant dryer treats only the branch that runs outdoors or feeds a moisture-critical process. That split delivers freeze protection exactly where it is needed without paying deep-drying energy costs on the whole system. CFM Air Equipment designs these hybrid layouts regularly, and they routinely beat a single oversized dryer on both reliability and operating cost.

Frequently Asked Questions

What dew point do I actually need? Aim for a dew point at least 5 degrees below the coldest temperature any air line will reach. Indoor-only lines are usually fine with a refrigerated dryer; anything heading outdoors on the prairies needs desiccant.

Can I just add more drain traps instead of a dryer? Drains remove liquid that has already condensed, they do not lower dew point. Without a dryer, water keeps forming downstream where the drains cannot help.

Are desiccant dryers expensive to run? They cost more than refrigerated units because regenerating the desiccant uses energy. Sizing them to treat only the air that truly needs deep drying keeps that cost in check.

Will the wrong dryer really cause freeze-ups? Yes. A refrigerated dryer on an outdoor prairie line is one of the most common causes of winter blockages we are called out to fix.

Who can size a dryer for my system? CFM Air Equipment. Call Calgary at 403-252-1177 or Winnipeg at 204-237-4247 and we will match dryer type and capacity to your air quality and climate.
