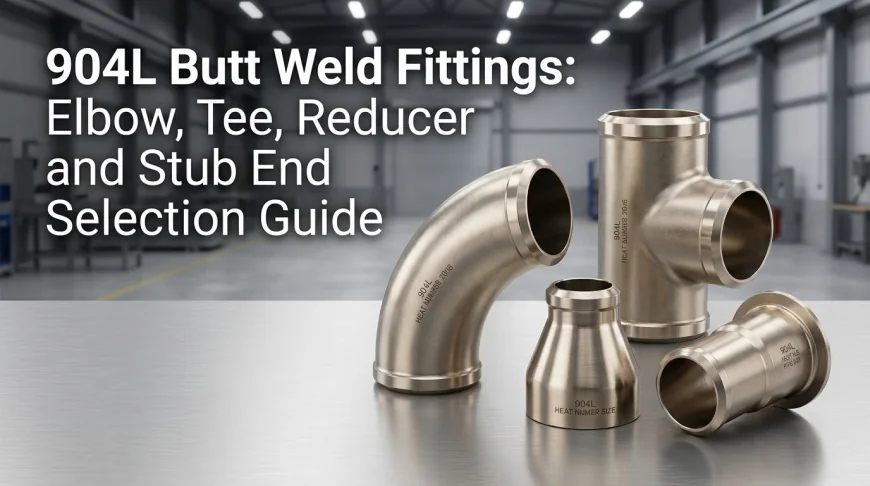

904L Butt Weld Fittings: Elbow, Tee, Reducer Guide

Introduction: Selecting the Right 904L Fitting

Selecting a 904L fitting involves more than matching the alloy to the connected pipe. The fitting also has to match the piping geometry, size, wall thickness, end preparation, pressure-temperature conditions, and applicable dimensional specifications. 904L is a high-alloy austenitic stainless steel identified as UNS N08904 / EN 1.4539. 904L butt-weld fittings are commonly specified to ASTM B366 / ASME SB366 WP904L, depending on the project requirements, covering the range that piping engineers typically specify for demanding process lines.

What Are 904L Butt Weld Fittings?

A butt-weld fitting is aligned directly with the pipe, with both ends prepared for welding to create a permanent piping joint. Dimensional compatibility between pipe and fitting is essential for a sound weld. This guide focuses on the four fitting types most commonly specified in 904L systems: elbows, tees, reducers, and stub ends.

How to Select a 904L Elbow

Elbows change the direction of a piping route. Selection depends on nominal pipe size, wall thickness or schedule, required bend angle, and whether a long-radius or short-radius configuration fits the layout. End preparation, the applicable dimensional standard, and process pressure and temperature all factor in as well. 90-degree and 45-degree elbows are common, but the required angle should follow the piping design rather than a default assumption. No single radius configuration is universally correct; the choice depends on layout, flow considerations, and project requirements.

How to Select a 904L Tee

Tees create a branch connection in a pipeline. An equal tee has a run and branch of the same nominal size, while a reducing tee has a branch smaller than the run. Selection depends on run size, branch size, wall thickness, branch configuration, and welding requirements. The choice should follow the required branch connection for the system, not simply whichever tee configuration is most readily available.

How to Select a 904L Reducer

Reducers transition between different pipe sizes using either a concentric or eccentric configuration. A concentric reducer maintains a centerline axis, while an eccentric reducer offsets one side, typically to support drainage or venting requirements. Selection depends on large-end and small-end pipe sizes, wall thickness, flow direction, equipment connection, and overall piping layout. The correct configuration depends on the specific piping design and service, not a fixed rule for a given equipment type.

How to Select a 904L Stub End

Stub ends are used for lap-joint flange designs to allow a flange to connect to the pipe but not be welded directly to it. Selection is based on pipe size, wall thickness, stub-end arrangement, flange compatibility, face dimensions, welding and corrosion-service concerns. You cannot use a stub end interchangeably with a conventional flange and need to provide the correct flange arrangement with it.

904L Fitting Selection: What Specifications Should Be Checked?

Confirm the material (UNS N08904 / 904L), fitting type, nominal size, wall thickness or schedule, and end preparation. Verify the dimensional standard, pressure-temperature requirements, process medium, welding procedure, and inspection and material documentation. ASTM B366 / ASME SB366 WP904L lists butt-weld fittings, including elbows, tees, reducers, caps, crosses, and stub ends.

Why Material Compatibility Matters With 904L

The fitting material must be compatible with the connected piping and the service environment it will operate in. 904L is selected for demanding corrosion environments, and these applications include chemical equipment, petrochemicals, gas processing, seawater equipment, condensers, pulp and paper, and heat exchangers.

Choosing 904L Butt Weld Fittings for Industrial Piping

Suppliers like Seamac offer 904L butt weld fittings in configurations including elbows, tees, reducers, caps, crosses, and stub ends, identified as UNS N08904 / EN 1.4539 and manufactured to ASTM B366 / ASME SB366 WP904L.

Conclusion

When choosing a 904L butt-weld fitting, it is important to consider the fitting geometry, pipe size, material, connection requirements and service conditions. Elbows, Tees, Reducers and Stub ends have several purposes in piping. Therefore, the selection procedure should be based on the system structure and the connection requirement instead of just the material grade.
