Electrical protection devices are essential to ensure safety, reliability, and efficiency in homes, commercial buildings, and industrial facilities. Among these devices, the isolator mcb and the mccb breaker play crucial roles in safeguarding electrical circuits from overloads, faults, and operational hazards. While both components serve the purpose of protecting electrical systems, each has its own unique function, installation requirements, and maintenance needs.
This comprehensive guide explains how to correctly install an isolator mcb, how to maintain an mccb breaker, and why these protective devices are vital for modern electrical networks. Whether you are a homeowner, facility manager, or electrical professional, understanding these elements ensures long-term performance and enhanced safety.

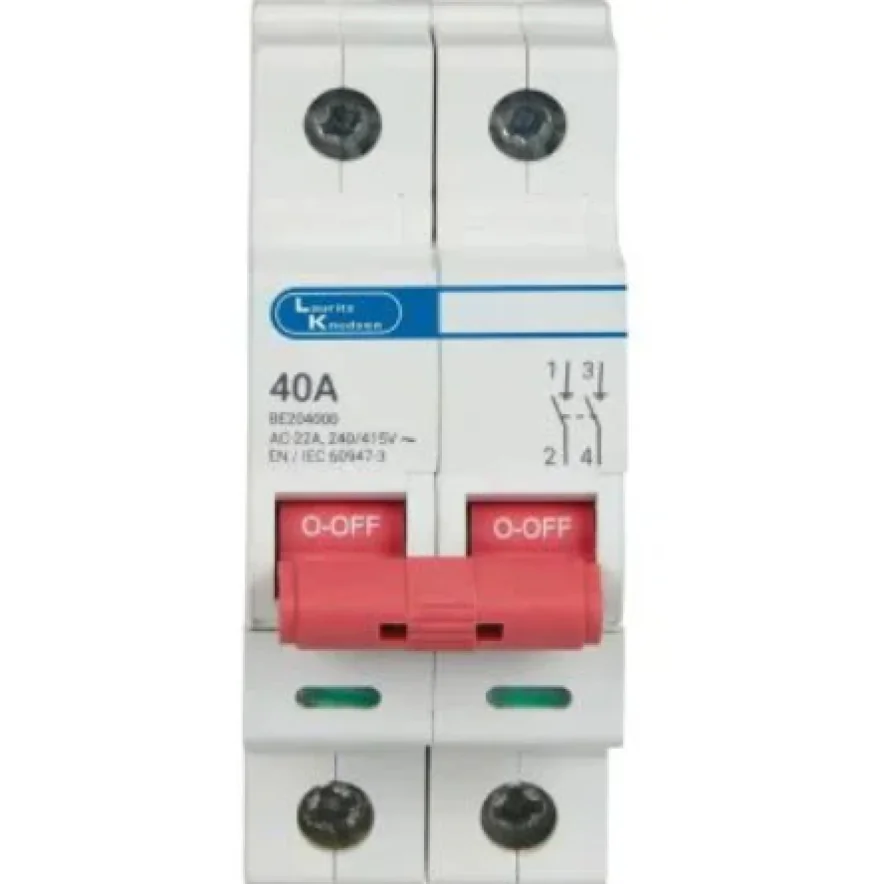

Understanding the Isolator MCB: Purpose and Function
An isolator mcb (Miniature Circuit Breaker with isolation capability) is a protective device designed to interrupt electrical circuits during an overload or short circuit. It also acts as an isolating switch, allowing safe disconnection of electrical circuits for repair or maintenance.
Key Functions of an Isolator MCB
- Protects circuits from overloads
- Trips instantly in case of short circuits
- Provides safe isolation for service and inspection
- Ensures safer handling during maintenance
- Prevents energy wastage and electrical fires
The importance of using a high-quality isolator mcb cannot be overstated because it acts as the first line of defense in most low-voltage electrical installations.
Installation Tips for an Isolator MCB
Proper installation is essential to ensure the safety and reliability of an isolator mcb. Below are key guidelines to follow during installation:
- Choose the Right Rating
Every electrical circuit requires an MCB with a specific current rating. Selecting the wrong rating can lead to nuisance tripping or failure to protect the circuit. Consider:
- Load requirements
- Wiring size
- Type of connected appliances
- Check the Compatibility with the Distribution Board
Ensure the isolator mcb fits well into the existing distribution board and matches the busbar configuration. A securely mounted MCB prevents loose connections and overheating.
- Follow Proper Wiring Techniques
Use high-quality copper wires and secure them firmly to the terminals. Loose wiring is a common cause of electrical failures. Ensure:
- No exposed copper
- Tight terminal screws
- Correct polarity
- Ensure Proper Isolation
During installation, verify that the MCB provides complete isolation. This helps safeguard technicians during maintenance or emergency shutdowns.
- Use Standard Installation Tools
Avoid makeshift tools that may damage terminals or compromise the MCB’s structural integrity. Use insulated screwdrivers and certified electrical tools.
- Perform Testing After Installation
Test the device using:
- Continuity checks
- Trip mechanism tests
- Voltage checks
Proper testing ensures that the isolator mcb functions as expected.
Common Mistakes to Avoid During MCB Installation
- Using MCBs with incorrect ratings
- Overloading circuits
- Leaving terminals loose
- Failure to inspect wiring insulation
- Installing in damp or dusty environments
Avoiding these mistakes extends the lifespan of the device and ensures consistent performance.
Understanding the MCCB Breaker: Purpose and Function
An mccb breaker (Molded Case Circuit Breaker) is a robust protective device designed for higher current ratings, typically from 100A to 1600A. While MCBs handle low current applications, MCCBs are used in more demanding electrical systems such as commercial setups, factories, and industries.
Functions of an MCCB Breaker
- Protects circuits from overload and short-circuit conditions
- Enables manual isolation of electrical sections
- Handles higher current loads
- Provides adjustable trip settings
- Ensures system stability under heavy electrical demand
Because of its versatility and strength, an mccb breaker is essential for large-scale electrical installations.
Key Components of an MCCB Breaker
- Thermal Unit: Protects against overload
- Magnetic Unit: Protects against short circuit
- Trip Mechanism: Automatically interrupts the circuit
- Operating Handle: Allows manual switching
- Molded Case: Provides insulation and durability
Understanding these components helps users maintain and troubleshoot their mccb breaker effectively.
MCCB Breaker Maintenance Guide
Regular maintenance increases the reliability and longevity of the mccb breaker, preventing electrical hazards and system downtimes.
- Perform Regular Visual Inspections
Check for:
- Burn marks
- Loose wires
- Cracked insulation
- Dust accumulation
- Discoloration
Any visible damage indicates the need for repair or replacement.
- Tighten All Connections
Loose terminal screws can cause:
- Overheating
- Voltage drops
- Arc faults
Ensure all connections are firm and properly aligned.
- Clean the MCCB Periodically
Dirt, moisture, and dust can affect the performance of an mccb breaker. Clean the external surface with a dry cloth and ensure the breaker is installed in a clean environment.
- Test the Trip Mechanism
A functioning trip mechanism is essential for protection. Use:
- Manual trip tests
- Electrical testing equipment
- Periodic test schedules
If the breaker does not trip correctly, it must be serviced immediately.
- Check Load Conditions
Monitor current flow regularly. Overloading the MCCB reduces its lifespan and increases the risk of electrical faults.
- Inspect the Contacts
Worn-out contacts can cause:
- High resistance
- Excessive heat
- Unreliable circuit interruption
Replace contacts when necessary.
- Lubricate Moving Components
Some MCCBs have moving parts that require occasional lubrication. Use manufacturer-recommended lubricants only.
- Replace the MCCB When Needed
If the mccb breaker shows signs of stiff operation, constant tripping, or visible damage, replacement may be the safest option.
Why Proper Installation and Maintenance Matter
Electrical failures often occur due to:
- Loose wiring
- Overloaded circuits
- Faulty breakers
- Lack of preventive maintenance
A well-installed isolator mcb ensures that household and small commercial circuits remain safe, while a well-maintained mccb breaker protects larger, more complex systems from major hazards.
Together, they create a comprehensive safety framework for modern electrical networks.
Conclusion
Installing an isolator mcb correctly and maintaining an mccb breaker regularly are essential steps in ensuring electrical safety, preventing faults, and improving system reliability. Whether used in homes or large industrial setups, these devices work together to provide dependable protection against overloads, short circuits, and operational hazards. For premium-quality electrical components, expert installation, and professional guidance, Lauritz Knudsen Electrical and Automation remains a trusted name committed to delivering excellence in modern electrical solutions.
