How Our Bosch Cummins Injectors Are Very Helpful
The first step involves pressurizing diesel fuel to more than 23,000 PSI (pounds per square inch) using a high-pressure fuel pump, usually made by Bosch.
Lina Max

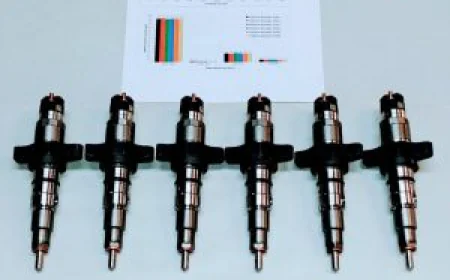

Bosch injectors are high-precision parts that are essential to the fuel delivery system, particularly those used in Cummins diesel engines (such as the 5.9L and 6.7L). They function as a component of a high-pressure common rail system that is intended to precisely and precisely distribute fuel into the combustion chamber. This is how they operate:
The first step involves pressurizing diesel fuel to more than 23,000 PSI (pounds per square inch) using a high-pressure fuel pump, usually made by Bosch. A shared "common rail," which supplies all injectors at once, holds this pressurized gasoline. The Electronic Control Module (ECM) of the engine regulates each injector. The ECM uses inputs like as coolant temperature, boost pressure, engine RPM, throttle position, and more to precisely time and lengthen each injection event.
Piezo or solenoid activation
In order to open and close the injector nozzle, bosch cummins injectors usually use piezoelectric or solenoid technology. Fuel can spray into the combustion chamber in solenoid types (found in older 5.9L and 6.7L Cummins) when an electric signal from the ECM activates a coil that raises a needle valve. Rapid-response crystals that expand under voltage are utilized in piezoelectric injectors (found in more recent 6.7L Cummins models) to provide even quicker and more accurate control.
Typically, Bosch injectors can perform pilot, main, and post injections, but they can also perform numerous injections each combustion cycle. Pilot injection enhances combustion smoothness and lowers noise. Post injection reduces emissions by raising exhaust temperatures for aftertreatment systems, while main injection supplies the majority of the fuel.In order to ensure effective fuel mixing with air in the combustion chamber, the injector nozzle is designed to produce a fine mist of fuel. Clean combustion, power, and lower emissions all depend on proper atomization.
Conclusion
Injectors from Bosch Cummins are high-tech parts made for accuracy, robustness, and efficiency. They are an essential component of contemporary diesel technology because of their capacity to supply high-pressure, precisely timed, and highly atomized fuel straight into the engine.
