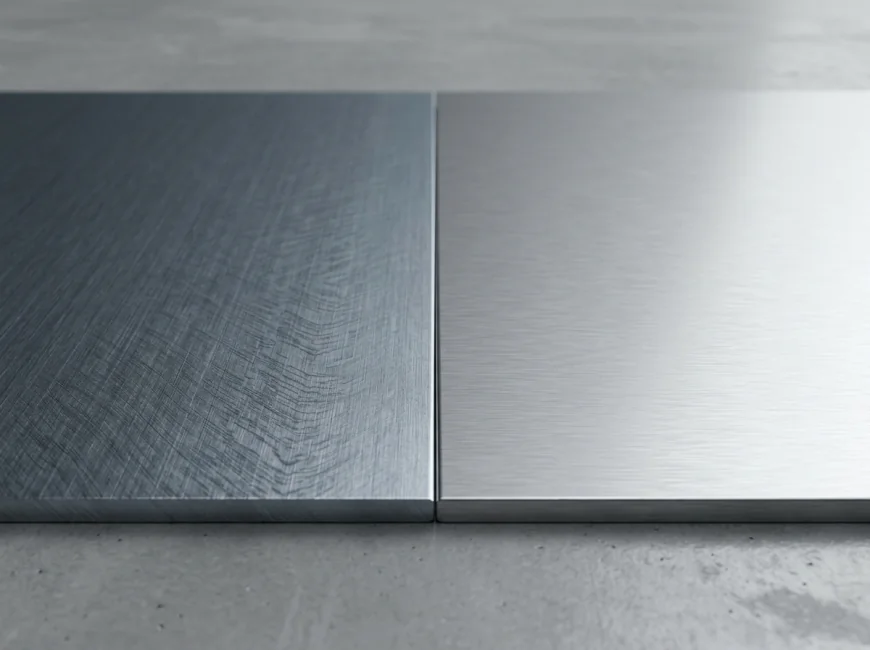

Duplex Steel S31803 Sheets vs 316 Stainless Steel Sheets

A sheet material that fails five years into a twenty-year service life costs more than the price difference ever suggested. Corrosion resistance, mechanical strength, and long-term stability decide whether a chemical plant or offshore platform stays online or shuts down for repairs. Duplex Steel S31803 Sheets and 316 Stainless Steel Sheets sit at the center of that decision across chemical processing, marine engineering, oil and gas, and construction. This guide breaks down where each material earns its place and where it falls short.

Understanding Duplex Steel S31803 Sheets and 316 Stainless Steel Sheets

What Are Duplex Steel S31803 Sheets?

S31803 combines roughly 22% chromium, 5.5% nickel, 3% molybdenum, and 0.14-0.20% nitrogen into a microstructure split almost evenly between austenite and ferrite. That dual-phase structure delivers a minimum yield strength near 65 ksi, close to double standard austenitic grades. Offshore platforms, desalination units, and pressure vessels handling chloride-heavy streams rely on S31803 because its ferrite phase resists chloride stress corrosion cracking in ways austenitic steels cannot match.

What Are 316 Stainless Steel Sheets?

316 runs fully austenitic, built around 16-18% chromium, 10-14% nickel, and 2-3% molybdenum. The molybdenum addition over 304 grade lifts pitting resistance in chloride and marine air exposure. Yield strength sits around 30 ksi annealed, well below duplex levels, but the trade-off buys strong ductility and weld simplicity. Food processing lines, pharmaceutical vessels, and architectural cladding favor 316 for general fabrication without specialized welding procedures.

Chemical Composition Comparison of Duplex Steel S31803 and 316 Stainless Steel

Chromium drives passive film formation in both alloys, but S31803 carries roughly 4-6 percentage points more of it than 316. Nickel plays the opposite role. 316 depends on 10-14% nickel to stabilize its fully austenitic structure, while S31803 needs only 4.5-6.5% since ferrite stabilizes the balance. Molybdenum content runs close between the two grades, yet nitrogen sets them apart. S31803's 0.14-0.20% nitrogen strengthens the ferrite phase and pushes its pitting resistance equivalent number (PREN) past 35, against 316's PREN in the low 20s. That single figure explains most of the corrosion gap below.

Corrosion Resistance: Duplex Steel S31803 Sheets vs 316 Stainless Steel Sheets

Resistance to Chlorides and Marine Environments

S31803 tolerates chloride concentrations up to roughly 40,000-60,000 ppm before pitting risk becomes significant, while 316 starts showing vulnerability closer to 1,000-5,000 ppm depending on temperature. Offshore splash zones, seawater cooling systems, and coastal structural sheeting favor duplex for this reason alone. Standard 316 remains viable in lower-chloride coastal air but struggles in direct seawater immersion.

Performance in Chemical Processing Environments

Stress corrosion cracking under chloride and heat combined poses one of the biggest threats to austenitic stainless in chemical plants. S31803's ferrite-austenite structure interrupts crack propagation paths that run freely through fully austenitic 316. Acids, caustic solutions, and process streams above 60°C with chloride content push most specifiers toward duplex, reserving 316 for milder chemical exposure at ambient to moderate temperatures.

Mechanical Strength and Structural Performance Comparison

The minimum yield strength of S31803 is 65 ksi, compared to 316 of around 30 ksi, which allows thinner duplex sheet to carry the same structural load, reducing the material weight on big fabrications. Tensile strength is the same, S31803 is rated approximately 90 ksi, compared to 316's 75 ksi. Duplex is also favoured by its fatigue resistance. In cyclic load applications, such as offshore risers, the increased strength to weight ratio allows a reduction of the section thickness without loss of safety margin.

Heat Resistance and Service Temperature Capabilities

316 handles continuous service up to around 870°C in oxidizing atmospheres, giving it an edge in furnace components and high-temperature process gear. S31803 faces embrittlement risk from sigma phase formation between 300°C and 550°C, which caps continuous use at roughly 300°C under most codes. Sustained high-temperature service pushes the choice back toward 316 or a dedicated heat-resistant grade.

Fabrication, Welding, and Machining Characteristics

Weldability and Fabrication Considerations

316 welds with standard austenitic procedures and filler metals, needing little beyond interpass temperature control. S31803 demands tighter heat input control and often nitrogen-enriched shielding gas to preserve phase balance at the weld and heat-affected zone. Skipping these controls risks excess ferrite formation, which drops joint toughness and corrosion resistance.

Machining Challenges and Best Practices

Duplex sheet work-hardens faster than 316 during cutting and forming, shortening tool life and demanding slower feed rates with rigid tooling. 316 machines more predictably with conventional stainless practices, which is why shops running high volumes of duplex work usually dedicate separate tooling rather than switch grades on the same line.

Industrial Applications Best Suited for Each Material

Where Duplex Steel S31803 Sheets Offer Advantages

Offshore structures, oil and gas separator vessels, desalination piping and tankage, and chemical processing units handling high-chloride streams lean on S31803's strength and pitting resistance to extend service intervals beyond what standard austenitic sheet would deliver.

Applications Ideal for 316 Stainless Steel Sheets

Food processing equipment, pharmaceutical tanks and piping, architectural facades, and general fabrication projects favor 316 for its formability, weld simplicity, and adequate corrosion resistance at a lower installed cost than duplex.

Cost Comparison and Long-Term Performance Value

S31803 costs usually 15-25% more per kilogram than 316 due to its greater nickel-molybdenum content and more stringent mill limitations. The duplex has higher strength so you can get the same load capacity with thinner sheet, and the cost difference per project is reduced. Duplex extends maintenance intervals, often doubling inspection cycles in chloride service compared to 316, thereby changing the lifecycle equation in favour of duplex even with a higher sticker price.

Key Factors to Consider When Choosing Between Duplex Steel S31803 Sheets and 316 Stainless Steel Sheets

Operating environment and chloride exposure level drive the first decision. Mechanical loading requirements come next, since duplex's strength advantage matters most structurally. Fabrication capability affects lead time and cost, and budget alongside expected service life closes out the evaluation.

Selecting the Right Sheet Material for Industrial Reliability

Matching material properties to actual application demands prevents overspending on unnecessary duplex grade and underspecifying 316 into a service life it cannot deliver. Balancing performance, durability, and cost at the specification stage protects operational efficiency for the equipment's full life, not just at commissioning.

Conclusion

Duplex S31803 and 316 stainless sheet solve different problems. S31803 has better strength, better chloride and pitting resistance, and better cyclic structural load performance than 316, offering easier fabrication, a wider high temperature range and lower installed cost for moderate-exposure applications. The right choice depends on the operating environment, mechanical demands, and the length of time the equipment has to run without intervention. Careful material selection at the time of procurement maintains reliability and service life long after the sheet is issued from the mill.
