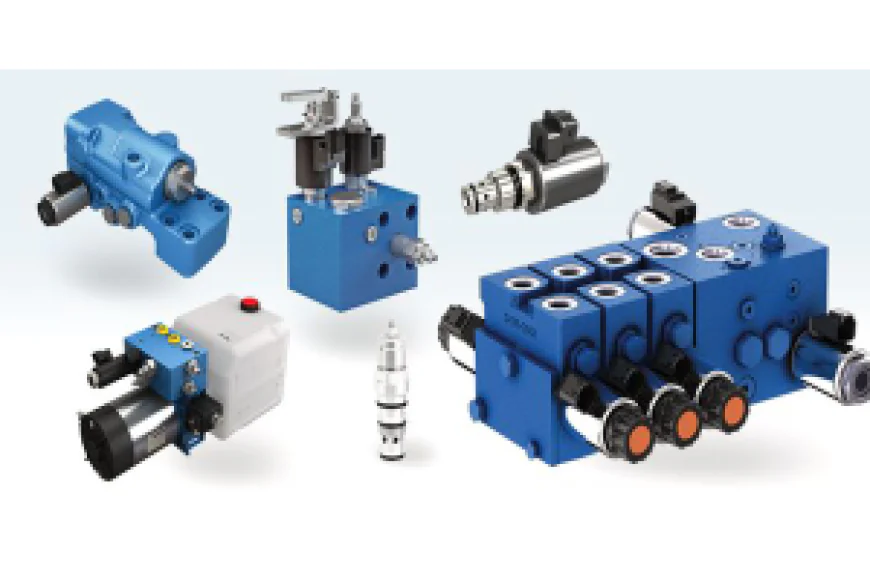

Directional Valve & Manifolds – The Unsung Heroes of Fluid Control
"Discover the role of directional valves and manifolds in hydraulic systems with a simple, fun, and slightly humorous guide that makes fluid control surprisingly interesting."
Top Speed Hydraulics Let’s be honest—directional valves and manifolds don’t exactly sound like the most exciting things in the world. They're not going to win any awards for glamour. But if machines could talk, they'd probably write poetry about them.
What Are Directional Valves?
A directional valve is like a traffic cop for hydraulic fluid. Its job? To tell the fluid where to go, when to stop, and when to keep moving. It controls the start, stop, and direction of flow in a hydraulic system.
Think of it this way: If your hydraulic system was a theme park, the directional valve would be the guy operating the rides, making sure everything goes smoothly (and safely). Without it, you'd just have fluid flying around like kids on roller skates with no brakes—chaotic and possibly wet.
Manifolds – The Power Strip of Hydraulics
Now, let’s talk about manifolds. These little guys are basically the extension cords or power strips of the hydraulic world. A manifold lets multiple valves connect to one central location—sort of like how your phone, laptop, and questionable USB fan all plug into the same power source.
They help reduce piping, lower the chance of leaks, and make everything cleaner and more organized. It’s like Marie Kondo showed up and whispered to your hydraulic system,
Types of Directional Valves
Okay, so not all directional valves are created equal. Here are the top ones you’ll likely encounter:
-
Spool Valves – The most common. It has a spool (yes, like thread, but don’t sew with it) that slides to direct fluid.
-
Poppet Valves – These use a poppet (basically a fancy plug) to control flow. Quick acting and reliable.
-
Rotary Valves – These rotate (shocking, I know) to change flow paths. Think of them like those secret passage bookcases in mystery movies.
Each type has its own strengths. Choosing one depends on what your system needs—kind of like picking between coffee, tea, and an energy drink.
Why Should You Care?
If you’re working with hydraulics, you should care a lot. A well-functioning directional valve and manifold setup means:
-
Smooth system control
-
Less downtime
-
Lower maintenance costs
-
Fewer moments of yelling "WHY IS THIS LEAKING AGAIN?!"
Final Thoughts
Directional valves and manifolds might not be the rockstars of the mechanical world, but they are definitely the roadies that keep the show running. Without them, your system wouldn’t just be less efficient—it might not work at all.
So next time you see a directional valve or a manifold, maybe give it a nod of appreciation. Or, you know, at least don’t call it boring. It has feelings too.
