To keep power moving safely through the grid, electrical substations need cable connections that work well. Cable terminations keep insulation safe, keep electrical stress under control, and make sure cables join to equipment correctly. Understanding the different termination systems used in substations helps engineers and utilities maintain safe and stable power networks.

Introduction to Cable Terminations in Substations

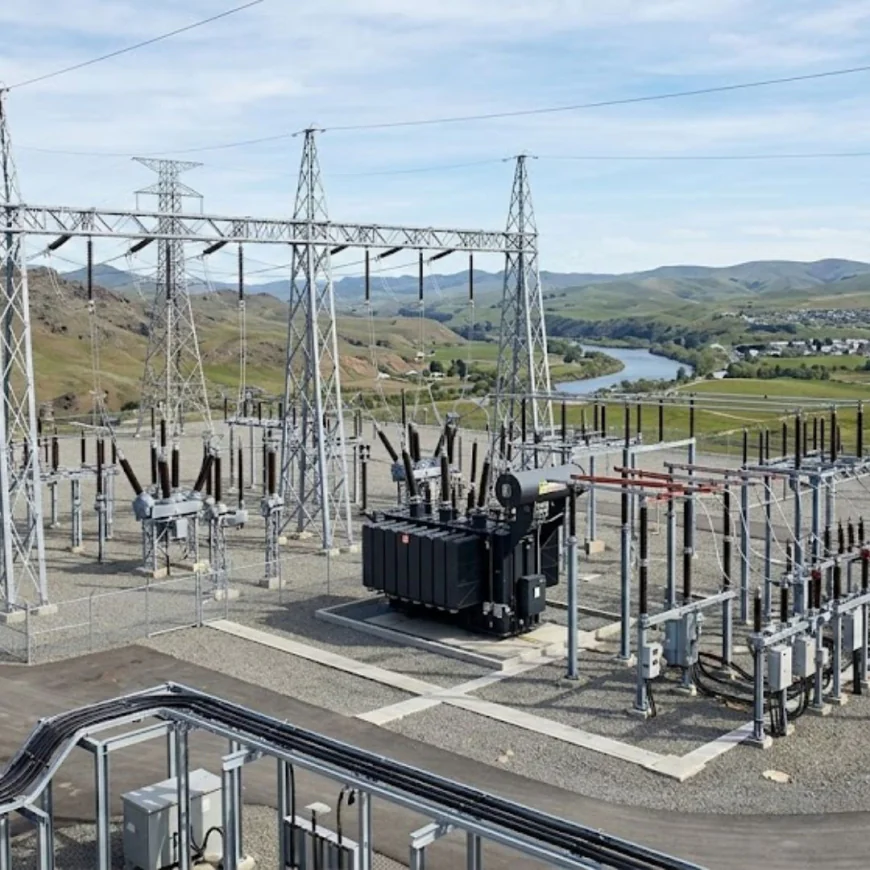

When you walk through any operational substation, you will notice a complex network of cables that supply transformers, breakers, and control management systems. Every one of those cables must terminate at some point, and the point at which they terminate is more significant than the majority of people know.  A cable termination is not just a connector. It is the carefully engineered transition between insulated cable and exposed electrical equipment. If that transition is poorly handled, electrical stress gathers at the cable end, and insulation begins to fail. Moisture creeps in. Heat builds up. Eventually, the system complains. In substations that rely heavily on Transmission and distribution Equipment, those small connection points quietly carry a large responsibility. When they are installed properly, they disappear into the background and simply do their job for years.

Heat Shrink Cable Terminations

Heat shrink terminations have been a steady presence in substations for decades. The idea is simple. A polymer sleeve is placed over the prepared cable end and heated so it contracts tightly around the insulation and conductor. What sounds simple on paper actually requires careful preparation. The cable layers must be trimmed correctly, and the heating must be uniform. Done right, the material shrinks into every contour of the cable surface and forms a strong moisture-resistant seal. Installers often appreciate heat-shrink systems because they are dependable and familiar. They work well across a wide range of medium and high voltage applications, and they do not require complicated equipment beyond controlled heat. In many field projects, especially retrofits, heat shrink still feels like the practical choice.

Cold Shrink Cable Terminations

Cold shrink terminations came along later but quickly earned their place in modern substations. Instead of heating a sleeve, the installer removes a plastic core that keeps a rubber sleeve stretched open. Once the core slides out, the rubber contracts around the cable on its own. It is almost satisfying to watch. The material settles into place without flame or heat guns. That small difference can make a big impact in tight substation spaces where open heat is not ideal. Cold shrink materials also maintain flexibility long after installation. Cables expand and contract slightly with temperature changes, and the elastic sleeve moves with them. It is a quiet advantage that often translates into longer service life.

Resin Cable Terminations

Resin terminations take a more structural approach. After the cable is prepared, a mold is placed around the end, and insulating resin is poured inside. The liquid fills the cavity and surrounds the conductor layers. Then it cures into a solid block of insulation. Once hardened, the termination becomes almost part of the cable itself. Resin systems are often chosen for locations where cables face rough environmental conditions. Industrial substations are a good example. Dust, vibration, and chemical exposure can slowly degrade softer materials. A solid resin body holds its shape and shields the cable end from those influences. It is not the fastest installation method, but when durability matters, resin has a way of earning trust.

Pre-Molded Cable Terminations

Pre-molded terminations are manufactured in controlled facilities before they ever reach the job site. The insulation layers, stress cones, and protective materials are already built into the component. That factory precision removes some uncertainty from field installation. Instead of building the termination layer by layer, the technician installs a single engineered piece that matches the cable size and voltage rating. In high voltage substations, that consistency is valuable. Electrical stress must be distributed smoothly along the insulation surface. Pre-molded designs are carefully shaped to guide that stress away from the cable edge. Consequently, the ultimate result is a link that is reliable and consistent, which engineers typically have faith in.

Elbows and Substation Cable Terminations

Underground distribution networks often rely on elbow connectors to link cables to transformers and switchgear. These insulated connectors bend the cable path while keeping the electrical interface protected. Elbows and Substation Cable Terminations are particularly common in compact substation layouts where space is limited, and equipment is arranged close together. The elbow design also allows technicians to disconnect cables during maintenance without exposing live metal surfaces. That detail matters when crews are working around energized systems. It adds a layer of safety while still allowing flexibility in cable routing.

Selecting the Right Termination System

Choosing a termination system is rarely about one factor. Voltage rating comes first. Higher voltages demand stronger insulation control. Environmental exposure follows close behind. Outdoor substations deal with rain, heat, dust, and sunlight year after year. Materials must tolerate all of it without breaking down. Compatibility with existing Transmission and distribution Equipment is another practical concern. A termination has to match the geometry and electrical requirements of transformers, switchgear, and bus connections already installed. Engineers also weigh installation time, maintenance access, and expected service life. Sometimes the decision is straightforward. Other times, it comes down to experience and a bit of professional instinct.

Conclusion

Cable connections may be neglected, but they're crucial to electrical utilities. Cable terminations connect substation electrical components to safely transport electrical energy. Each termination reduces electrical stress and ensures solid mechanical connections. Heat shrink, cold shrink, resin-filled, and pre-molded cable terminations each have pros and cons, so voltage, environment, and installation method must be considered. Professionals know that these elements affect the long-term stability of each cabling system. Electric utilities and manufacturers seek power infrastructure and cable connections from Apfelbaum Industrial. Your organization should consult with experts before upgrading or reevaluating its substation's cabling systems to choose the right terminations.
