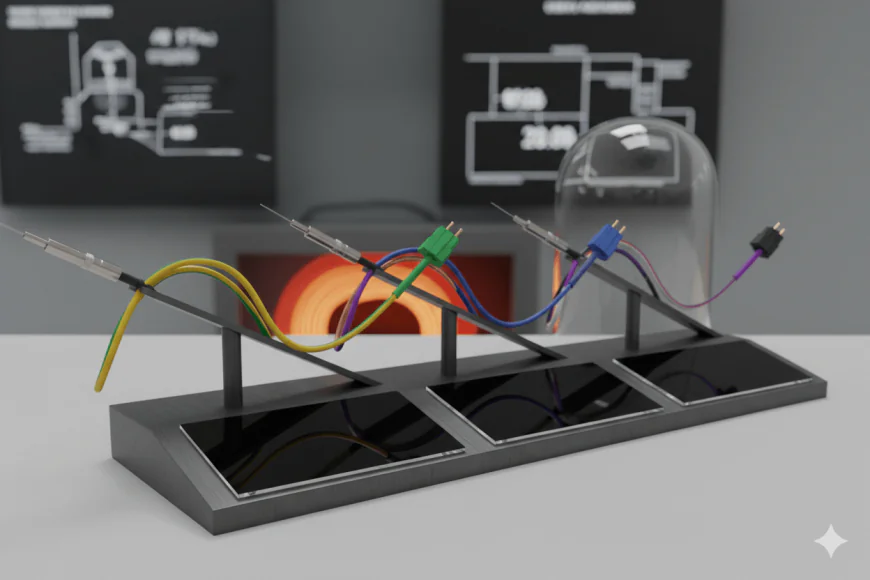

Understanding Different Types Of Thermocouples And Their Uses

If you’ve ever worked in our booming mining sector, heavy manufacturing, or even messed around with industrial kilns down under, you’ve probably come across a thermocouple. But what exactly are these little gadgets, and why do they make up over 60% of all industrial temperature measuring tools worldwide? Let’s have a bit of understanding about them.

In simple terms, a thermocouple temperature sensor is a clever but rugged electrical device made of two different metal wires joined at one end, and it is built to measure extreme heat or freezing cold.

If you’re scratching your head asking, “What is a thermocouple and how it works?”, here are the key mechanics broken down:

• The Seebeck Effect: It really comes down to a neat trick of physics. When you heat or cool the joined end of the wires (the hot junction), it generates a tiny spark of voltage.
• Proportional Voltage: That voltage shifts up and down as the temperature changes, giving you your reading.
• Cold Junction Compensation: Here's the catch, to get a fair dinkum, accurate number, you have to compensate for the temperature at the opposite end, known as the cold or reference junction. If you skip this, your readings will be completely off the mark.

Now, not all of these sensors are built the same. Here are the common "base-metal" types you’ll frequently see in Aussie factories and processing plants:

• Type K: This is the absolute workhorse of the industry. Made of Chromel and Alumel, it handles a massive range of temperatures, right up to around 1372°C, and it’s very affordable. But you have to watch out; if you put it in a low-oxygen environment, it can suffer from "green rot," which slowly destroys the wire and messes up its readings.
• Type J: Iron mixes with constantan here, making it react fast - ideal when warmth hits around 750°C. Moisture speeds rust since iron’s part of the blend, so damp air ruins it quick. Dry inside spaces? That’s where this type works without trouble.
• Type T: Need to measure something freezing cold in a food processing facility or medical lab? The Type T uses copper and constantan, making it exceptionally stable for cryogenic work and ultra-low freezers down to -270°C.
• Type E: If your setup requires the biggest electrical reaction per degree of temperature change, this is your mate. It’s highly sensitive, provides a strong signal, and has the added bonus of being non-magnetic.
• Type N: Think of this as Type K’s tougher sibling. It was actually designed right here in Australia by the Defence Science and Technology Organisation to fix that pesky green rot issue. It uses Nicrosil and Nisil alloys, making it brilliant for long-term stability in high-temperature environments.

Let's say you're melting glass or manufacturing cement. That is some hard yakka, and base metals will just melt into a puddle. For that, you bring in the heavy hitters:

• Types R, S, and B: These noble-metal sensors use expensive platinum and rhodium alloys.
• Extreme Heat Survival: Prepare to empty your wallet a bit more, and they aren't quite as sensitive, but they’ll casually survive a 1600°C to 1700°C inferno.
• Protection is Key: Just make sure you slap a proper protective sheath on them to keep contaminants out, or the expensive metals will degrade rapidly.

So, How Do You Choose?

Choosing a sensor means more than selecting the lowest price from a store shelf. Depending on how hot or cold things get, pick one that fits what you actually face. Moisture around? Chemical reactions in the air? Maybe even empty space conditions? Each changes what works. A grounded tip reacts fast, yet picks up stray signals easily; an isolated version fights off interference but answers slower. Over months and years, performance slips - watching for small shifts becomes part of staying reliable. Checking them often helps avoid surprises when precision matters most.

Final Thoughts:

Out in the northern mines where heat cracks stone, just like in a Sydney pharmacy fridge, this machine holds steady. Look after it well, peek at the dials now and then - performance won’t slip. When handled right, it simply does not quit.
